DT Swiss ER 1600 SPLINE® 28" 30mm XDR Wheelset
Product information "ER 1600 SPLINE® 28" 30mm XDR Wheelset"
The reinforced spokes and hub ensure durability while the Ratchet LN freehub system offers reliable power transmission thanks to simultaneous engagement. The result is a robust and durable wheelset that will let the rider focus on one single thing, enjoying the ride.
Features - DT Swiss ER 1600 SPLINE
- Rim width - The new rim has an increased width of 22mm, providing ideal support for wide tires, resulting in a great mix of comfort and stability.
- Spokes - The DT aero comp® II straightpull has an updated shape from the previous version, providing an aerodynamic advantage.
- Hub - The 350 road hub saves some weight by using a lightweight axle along with a milled hub body and includes the prized Ratchet System.
- Freehub Body - The fast engagement of the beloved Ratchet System 36 SL results in responsive acceleration, ideal when riding on winding roads.
Product features
- Application: Endurance
- Model: ER 1600
- Rim diameter: 28" / 700C
- ETRTO: 622 mm
- Rim joint: Sleeve joint
- Tire interface: Hooked / Crotchet tubeless TC
- Rim type: Clincher (folding / clincher)
- Tubeless Ready: Yes
- Hub type: 350
- Freehub system: Ratchet System 36 SL

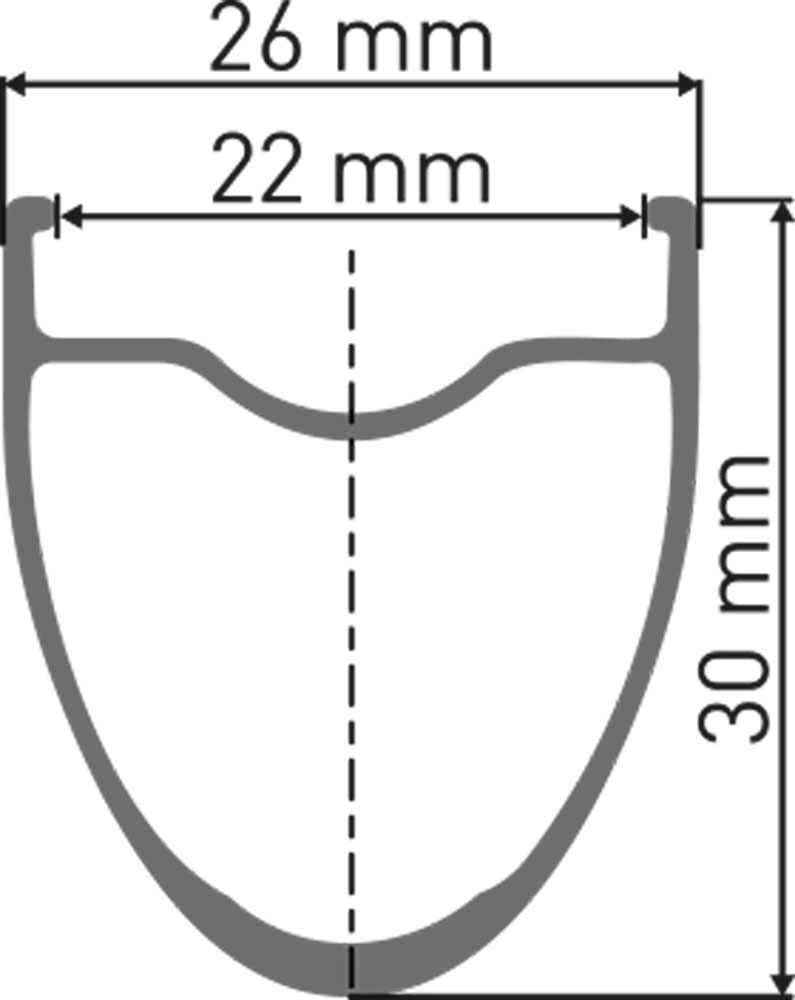

- Rim height: 30 mm
- Outer width: 26 mm
- Inner width: 22 mm
- Axle system: 12 mm Thru Axle
- Built-In dimension: 100 mm / 142 mm
- Number of holes: 24
- Spoke pattern: Two-cross (1:1)
- Valve hole: Presta / SV Ø 6.5 mm
- Brake system: Disc Center Lock
- Spokes: DT new comp® wide straightpull
- Nipple: DT ProLock Squorx ProHead alu
- Recommended system weight: 130 kg (body weight + bike + equipment)
- ASTM classification: 2
Freehub body
- SRAM XDR
Material
- Rim: Aluminium
- Hub body: Aluminum
- Spokes: Stainless steel
- Nipple: Aluminum
- Freehub body: Aluminium
Weight (manufacturer information)
- 1833 g
Scope of delivery
- 1 x DT Swiss ER 1600 SPLINE Disc wheelset
- 2 x Tubeless tape 25 mm
- 2 x Tubeless valve alu black 26-35 mm
Technologies
SPLINE® Technology
The elaborately machined hub body, the cleverly placed spokes and the proven freewheel technology of the new DT Swiss SPLINE® wheel line have a single goal: to meet the high needs of today's cyclists. It is components like the SPLINE® wheels that allow you to go further and further and faster and thus further increase the joy of cycling. Thanks to the many well thought-out details and the legendary DT Swiss reliability, you can experience pure cycling fun with SPLINE® wheels.
Straightpull technology
Straightpull stands for straight, unbent spokes. Thanks to this technology it is possible to achieve an ideal ratio between weight and stability. The Straightpull spokes allow a very precise alignment and optimized positioning in the wheel and thus provide a stiffer and more responsive wheel.
- Manufacturer number: 70760563+70761564
Längfeldweg 101
2504 Biel
Switzerland
[email protected]
https://www.dtswiss.com
Blumenstraße 49-51
71106 Magstadt
Deutschland
[email protected]
https://www.mcg-parts.de
