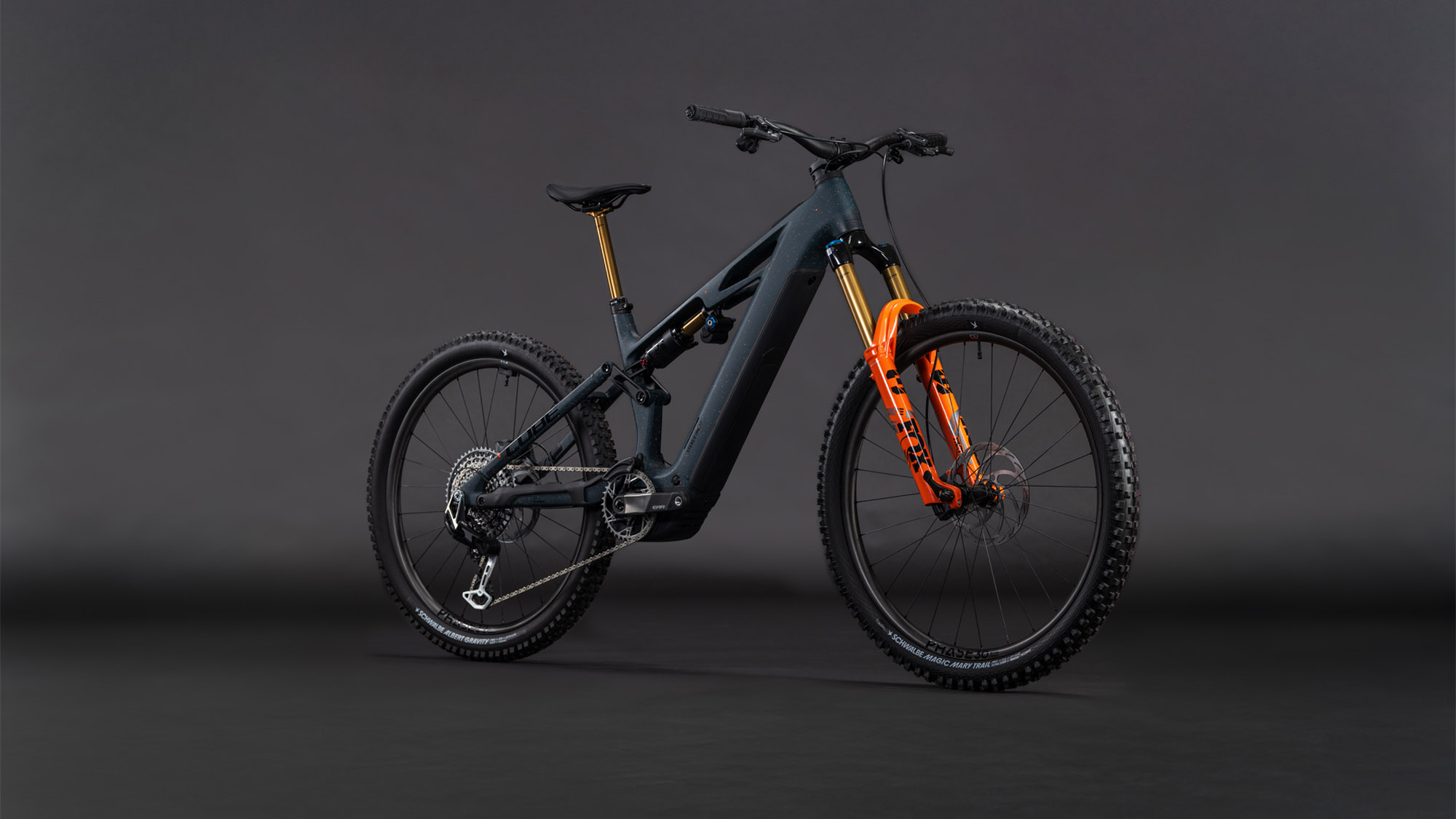

Cube Stereo Hybrid ONE77 HPC SLT 800 galaxy´n´orange
Product information "Stereo Hybrid ONE77 HPC SLT 800 galaxy´n´orange"
Highlights
- High-quality frame (carbon main frame, aluminium rear triangle) with internally routed cables, UDH derailleur hanger, designed for a maximum system weight of 160 kg
- Powerful Bosch Performance Line CX-R Gen.5 Smart System motor with up to 120 Nm torque
- Long range thanks to Bosch Powertube 800 Wh battery

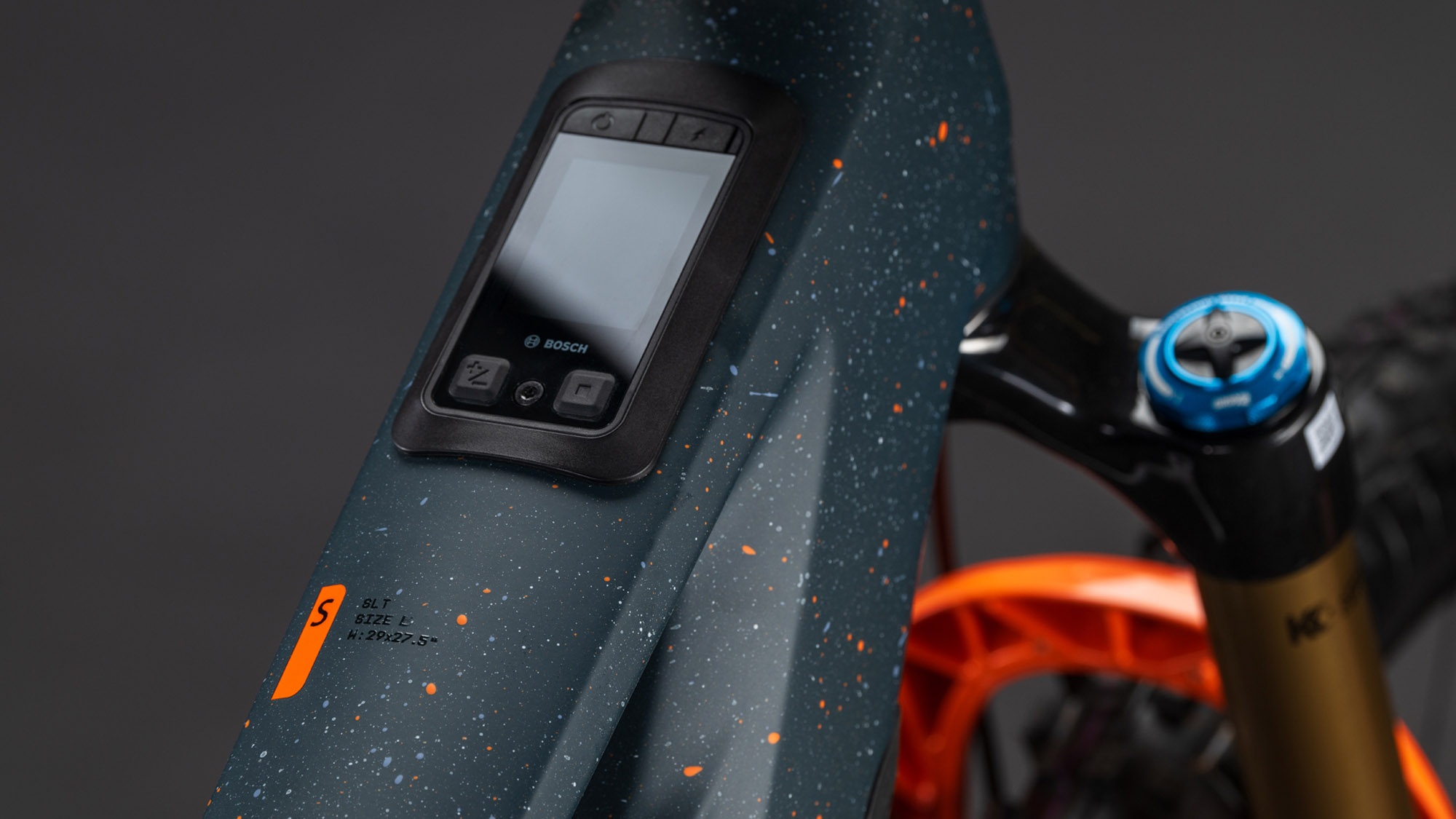

- Bosch Kiox 400C display and Bosch Mini Remote for clear and intuitive operation of the e-bike system
- Fox 38 Float Factory GRIPX2 suspension fork with 170 mm travel
- Fox Float X2 Factory shock
- Sram XX Eagle AXS™ transmission with 12 gears
- Hydraulic 4-piston Magura Gustav PRO disc brake with 203 mm brake discs
- High-quality and robust Newmen Phase 30 tubeless ready wheelset

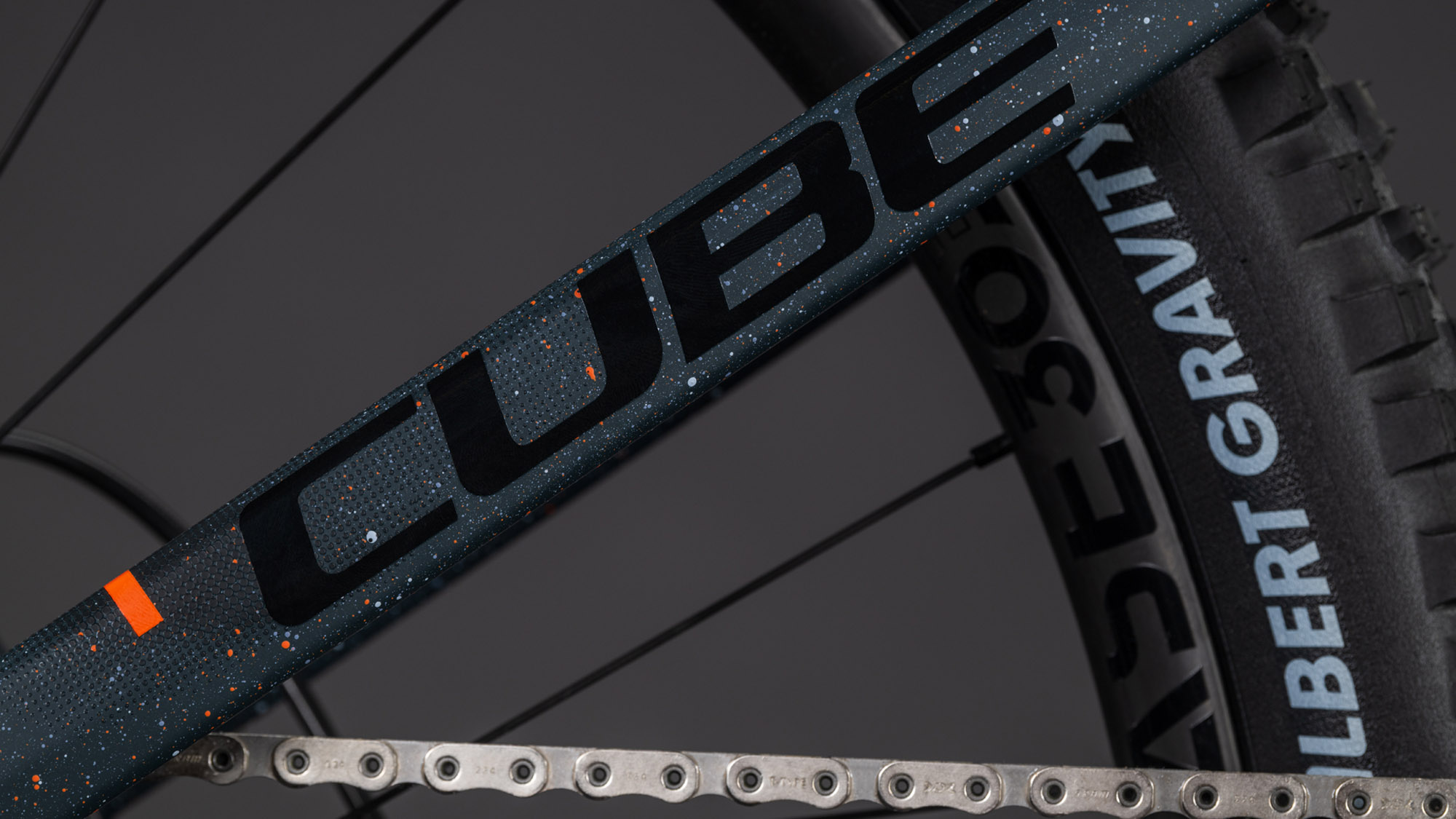

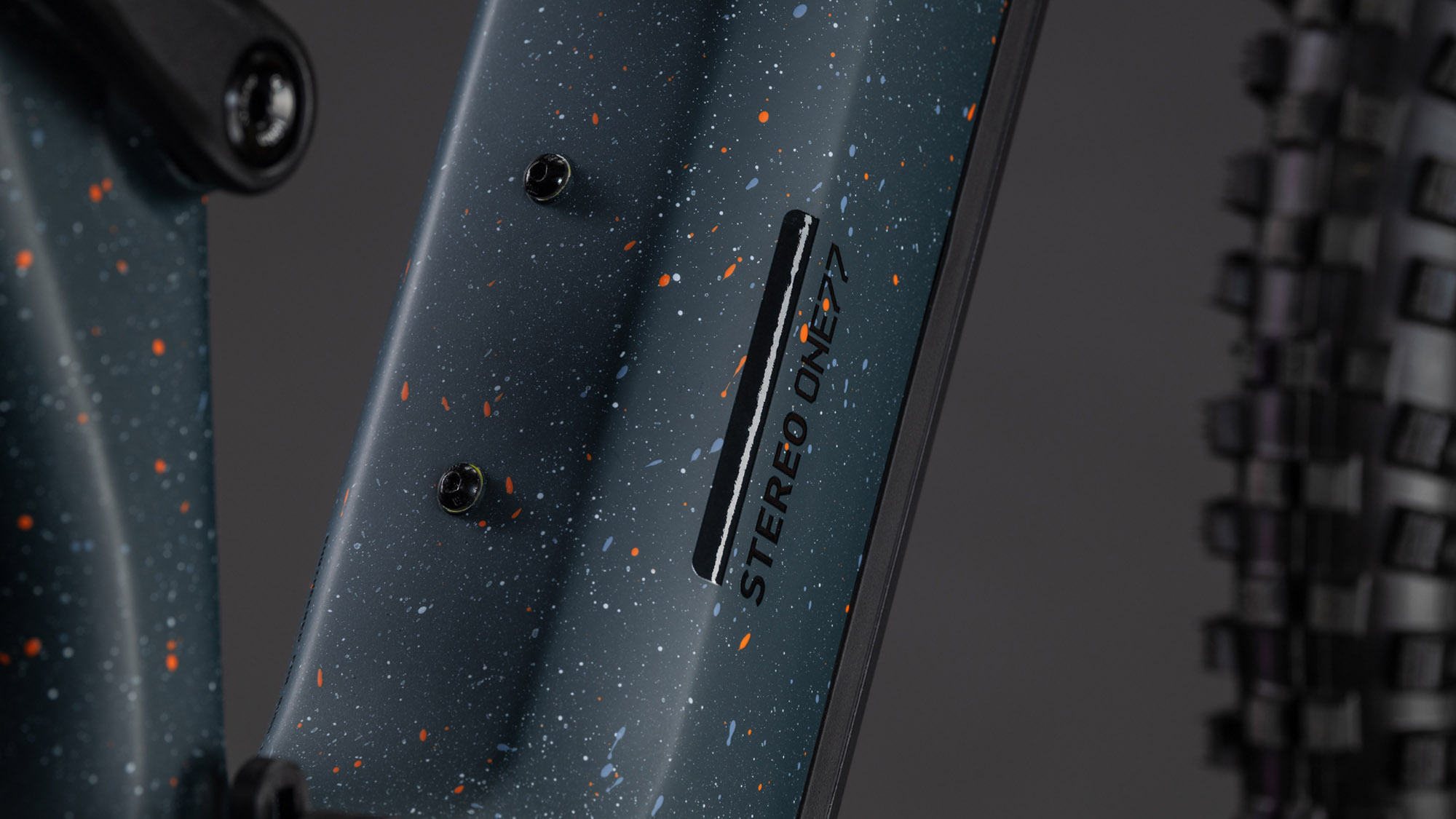

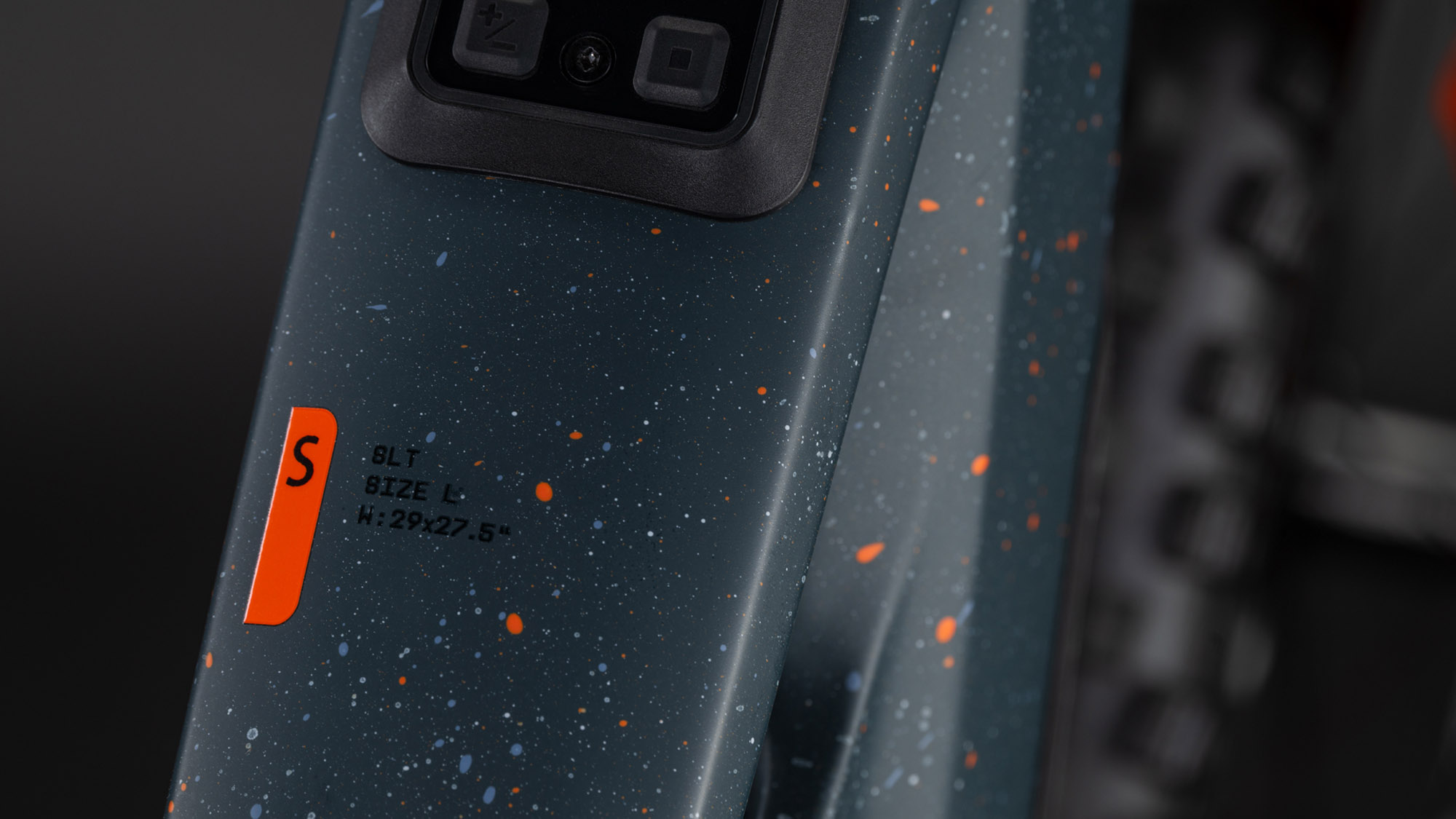

FRAME Cube Stereo Hybrid ONE77 HPC SLT
The frame of the Stereo Hybrid ONE77 HPC is truly in a class of its own, as 170 mm of travel at the front and rear meet a mullet set-up with a 29-inch front wheel and 27.5-inch rear wheel. Big mountain trail dreams come true! As always with CUBE, the rest is also designed with maximum attention to detail: Integrated Cable Routing ensures a super-clean look. There is also an angle-adjustable headset that allows the handling to be customised to individual preferences and requirements. Cube has also neatly and elegantly integrated the 800 Wh PowerTube battery into the carbon down tube just above the Bosch CX-R motor. For easier availability of spare parts, there is a UDH on the aluminium rear triangle - and because Cube has also installed a direct mount chain guide, you can go further, further and further with this fully, even in difficult conditions.
Technologies
Fully Integrated Battery
Thanks to the Fully Integrated Battery System, the Bosch electric motor is practically invisible and safely concealed in the down tube of the frame. A cover protects it from splash water and dirt - and thanks to the locking function, thieves don't stand a chance. The result: an aesthetically pleasing e-bike frame that is both super-functional and beautiful to look at.
Advanced Internal Cable Routing
Shift and brake cables always run from the respective control element on the handlebars to the corresponding components on the bike - usually via holes close to the head tube. What if you could simply do away with the latter? Cube has developed a design in which the cables run through the headset into the chassis. They therefore continue to run completely inside the frame, but the whole thing looks much tidier, nicer and more discreet.
Modular Battery System
In many ways, the battery is the heart of an e-bike - and with the Modular Battery System, Cube has developed a solution that is super easy to handle. The highlight: you can charge the battery in the bike or separately. It also offers enough space for the larger battery. So practical - and you'll wonder how you ever managed without it.
Bearing cups for angle adjustment in the head tube
When playing with gravity, on hairy trails and when every second counts in a race, the geometry of your CUBE bike often tips the scales. It's a good thing that you can customise your bike to your personal needs and preferences thanks to the bearing shells for angle adjustment in the head tube - a little slacker for more stability, a little steeper for more agility. The choice is yours!
Boost 148
The concept behind the Boost 148 thru axle: A wider hub for stiffer, more stable wheels and therefore better handling and also enough space to fit wider tyres for more performance. At the same time, the shifting precision and efficiency of the drivetrain are fully retained. This means you can accelerate even more uncompromisingly and at the same time benefit from better handling and more stable wheels.
Agile Ride Geometry
The Agile Trail Geometry is based on the popular Agile Ride Geometry, but is aimed at mountain bikers who like to push their limits on the trail. A lower standover gives you more room to manoeuvre over the bike. With this clever set-up, you can master even the hairiest lines with confidence - maximum riding fun included!
Universal derailleur hanger
One standard for all: thanks to the innovative Universal Derailleur Hanger, the derailleur hanger on your bike can be easily replaced. Cube has also designed the whole thing so that the derailleur hanger moves backwards in the event of hard impacts on the rear derailleur, which protects you from chain jamming. It also optimises shifting and is compatible with all drivetrains. And best of all, it is available everywhere as a standardised accessory.
Efficient Trail Control
Efficient Trail Control is a system that "pulls the strings" in the background so that you can enjoy your trail riding experience to the full. Despite a lot of usable suspension travel, the suspension is very easy to pedal uphill, does not bottom out and remains sensitive and agile in every situation. However, they behave extremely calmly on big hits, immediately making the entire suspension travel available again and thus offering enormous reserves on the descent.
High Performance Carbon
Thanks to High Performance Carbon (HPC), Cube can build even lighter, stronger and stiffer frames from this already incredibly versatile material called carbon. The carefully thought-out frame designs and different thicknesses of material layers enable the perfect fine-tuning of performance. In this way, each individual chassis fulfils our high demands in terms of (low) weight, stiffness, stability and durability.
Advanced Twin Mold
Our Advanced Twin Mold process for our C:62®, C:68® and C:68X® carbon frames uses two precise moulds. The first ensures an exact layup, the second (the inner core) holds each individual fibre in its intended position while the frame hardens. The result is an extremely light, stable chassis with a fibre density that is optimally matched to the more heavily loaded nodes.
Flat mount kickstand
Since a bike cannot stand on its own when it is not being ridden and there is often no good place to lean on it, it is often difficult to park it. We provide the solution with the Flat Mount kickstand. It allows you to park your CUBE bike safely and easily on any flat surface.
Semi-integrated seatpost clamp
Cyclocross is truly not for the faint-hearted - every detail counts. The semi-integrated seatpost clamp blends so seamlessly and elegantly into the clean frame design that it is barely noticeable. On the one hand, it looks simply brilliant, and on the other, you won't get caught on it so easily when shouldering your bike on foot. As I said, every detail counts!
Flat Mount kickstand
As a bike cannot stand on its own when it is not travelling and there is often no good way to lean on it, parking is often difficult. Cube provides the solution with the Flat Mount kickstand. It allows you to park your CUBE bike safely and easily on any flat surface.
X-Connect
X-Connect is a simple and effective way of attaching a compatible ACID light to a CUBE bike. A connector is integrated into the headset and the cables are routed inside the frame. For top safety and visibility, simply plug in the light, switch it on and ride off!
- Manufacturer number: 103600
- Model Year: 2026
Ludwig-Hüttner-Str. 5-7
95679 Waldershof
Deutschland
https://www.cube.eu/kontakt
Cube Stereo Hybrid ONE77 HPC SLT 800 galaxy´n´orange
Highlights
- High-quality frame (carbon main frame, aluminium rear triangle) with internally routed cables, UDH derailleur hanger, designed for a maximum system weight of 160 kg
- Powerful Bosch Performance Line CX-R Gen.5 Smart System motor with up to 120 Nm torque
- Long range thanks to Bosch Powertube 800 Wh battery
- Bosch Kiox 400C display and Bosch Mini Remote for clear and intuitive operation of the e-bike system
- Fox 38 Float Factory GRIPX2 suspension fork with 170 mm travel
- Fox Float X2 Factory shock
- Sram XX Eagle AXS™ transmission with 12 gears
- Hydraulic 4-piston Magura Gustav PRO disc brake with 203 mm brake discs
- High-quality and robust Newmen Phase 30 tubeless ready wheelset
FRAME Cube Stereo Hybrid ONE77 HPC SLT
The frame of the Stereo Hybrid ONE77 HPC is truly in a class of its own, as 170 mm of travel at the front and rear meet a mullet set-up with a 29-inch front wheel and 27.5-inch rear wheel. Big mountain trail dreams come true! As always with CUBE, the rest is also designed with maximum attention to detail: Integrated Cable Routing ensures a super-clean look. There is also an angle-adjustable headset that allows the handling to be customised to individual preferences and requirements. Cube has also neatly and elegantly integrated the 800 Wh PowerTube battery into the carbon down tube just above the Bosch CX-R motor. For easier availability of spare parts, there is a UDH on the aluminium rear triangle - and because Cube has also installed a direct mount chain guide, you can go further, further and further with this fully, even in difficult conditions.
Technologies
Fully Integrated Battery
Thanks to the Fully Integrated Battery System, the Bosch electric motor is practically invisible and safely concealed in the down tube of the frame. A cover protects it from splash water and dirt - and thanks to the locking function, thieves don't stand a chance. The result: an aesthetically pleasing e-bike frame that is both super-functional and beautiful to look at.
Advanced Internal Cable Routing
Shift and brake cables always run from the respective control element on the handlebars to the corresponding components on the bike - usually via holes close to the head tube. What if you could simply do away with the latter? Cube has developed a design in which the cables run through the headset into the chassis. They therefore continue to run completely inside the frame, but the whole thing looks much tidier, nicer and more discreet.
Modular Battery System
In many ways, the battery is the heart of an e-bike - and with the Modular Battery System, Cube has developed a solution that is super easy to handle. The highlight: you can charge the battery in the bike or separately. It also offers enough space for the larger battery. So practical - and you'll wonder how you ever managed without it.
Bearing cups for angle adjustment in the head tube
When playing with gravity, on hairy trails and when every second counts in a race, the geometry of your CUBE bike often tips the scales. It's a good thing that you can customise your bike to your personal needs and preferences thanks to the bearing shells for angle adjustment in the head tube - a little slacker for more stability, a little steeper for more agility. The choice is yours!
Boost 148
The concept behind the Boost 148 thru axle: A wider hub for stiffer, more stable wheels and therefore better handling and also enough space to fit wider tyres for more performance. At the same time, the shifting precision and efficiency of the drivetrain are fully retained. This means you can accelerate even more uncompromisingly and at the same time benefit from better handling and more stable wheels.
Agile Ride Geometry
The Agile Trail Geometry is based on the popular Agile Ride Geometry, but is aimed at mountain bikers who like to push their limits on the trail. A lower standover gives you more room to manoeuvre over the bike. With this clever set-up, you can master even the hairiest lines with confidence - maximum riding fun included!
Universal derailleur hanger
One standard for all: thanks to the innovative Universal Derailleur Hanger, the derailleur hanger on your bike can be easily replaced. Cube has also designed the whole thing so that the derailleur hanger moves backwards in the event of hard impacts on the rear derailleur, which protects you from chain jamming. It also optimises shifting and is compatible with all drivetrains. And best of all, it is available everywhere as a standardised accessory.
Efficient Trail Control
Efficient Trail Control is a system that "pulls the strings" in the background so that you can enjoy your trail riding experience to the full. Despite a lot of usable suspension travel, the suspension is very easy to pedal uphill, does not bottom out and remains sensitive and agile in every situation. However, they behave extremely calmly on big hits, immediately making the entire suspension travel available again and thus offering enormous reserves on the descent.
High Performance Carbon
Thanks to High Performance Carbon (HPC), Cube can build even lighter, stronger and stiffer frames from this already incredibly versatile material called carbon. The carefully thought-out frame designs and different thicknesses of material layers enable the perfect fine-tuning of performance. In this way, each individual chassis fulfils our high demands in terms of (low) weight, stiffness, stability and durability.
Advanced Twin Mold
Our Advanced Twin Mold process for our C:62®, C:68® and C:68X® carbon frames uses two precise moulds. The first ensures an exact layup, the second (the inner core) holds each individual fibre in its intended position while the frame hardens. The result is an extremely light, stable chassis with a fibre density that is optimally matched to the more heavily loaded nodes.
Flat mount kickstand
Since a bike cannot stand on its own when it is not being ridden and there is often no good place to lean on it, it is often difficult to park it. We provide the solution with the Flat Mount kickstand. It allows you to park your CUBE bike safely and easily on any flat surface.
Semi-integrated seatpost clamp
Cyclocross is truly not for the faint-hearted - every detail counts. The semi-integrated seatpost clamp blends so seamlessly and elegantly into the clean frame design that it is barely noticeable. On the one hand, it looks simply brilliant, and on the other, you won't get caught on it so easily when shouldering your bike on foot. As I said, every detail counts!
Flat Mount kickstand
As a bike cannot stand on its own when it is not travelling and there is often no good way to lean on it, parking is often difficult. Cube provides the solution with the Flat Mount kickstand. It allows you to park your CUBE bike safely and easily on any flat surface.
X-Connect
X-Connect is a simple and effective way of attaching a compatible ACID light to a CUBE bike. A connector is integrated into the headset and the cables are routed inside the frame. For top safety and visibility, simply plug in the light, switch it on and ride off!
- Manufacturer number: 103600
- Model Year: 2026
Ludwig-Hüttner-Str. 5-7
95679 Waldershof
Deutschland
https://www.cube.eu/kontakt
Configuration
| Frame: | C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing |
|---|---|
| Frame material: | Front: Carbon, Rear: Aluminium |
| Wheel size: | Mullet, Front: 29" / rear: 27.5" |
| Speeds: | 1 x 12 |
| Colour: | galaxy´n´orange |

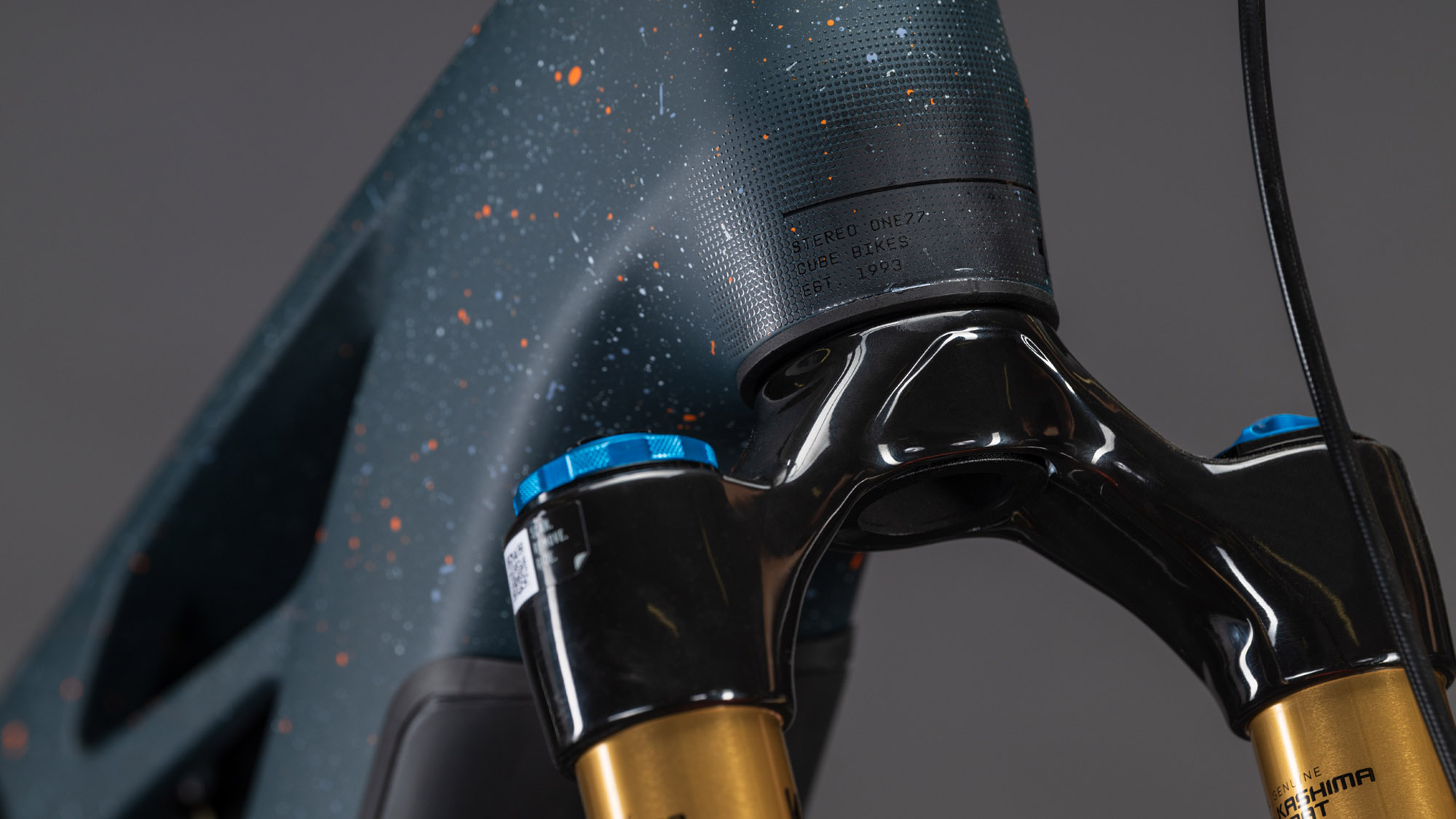

| Fork: | Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm |

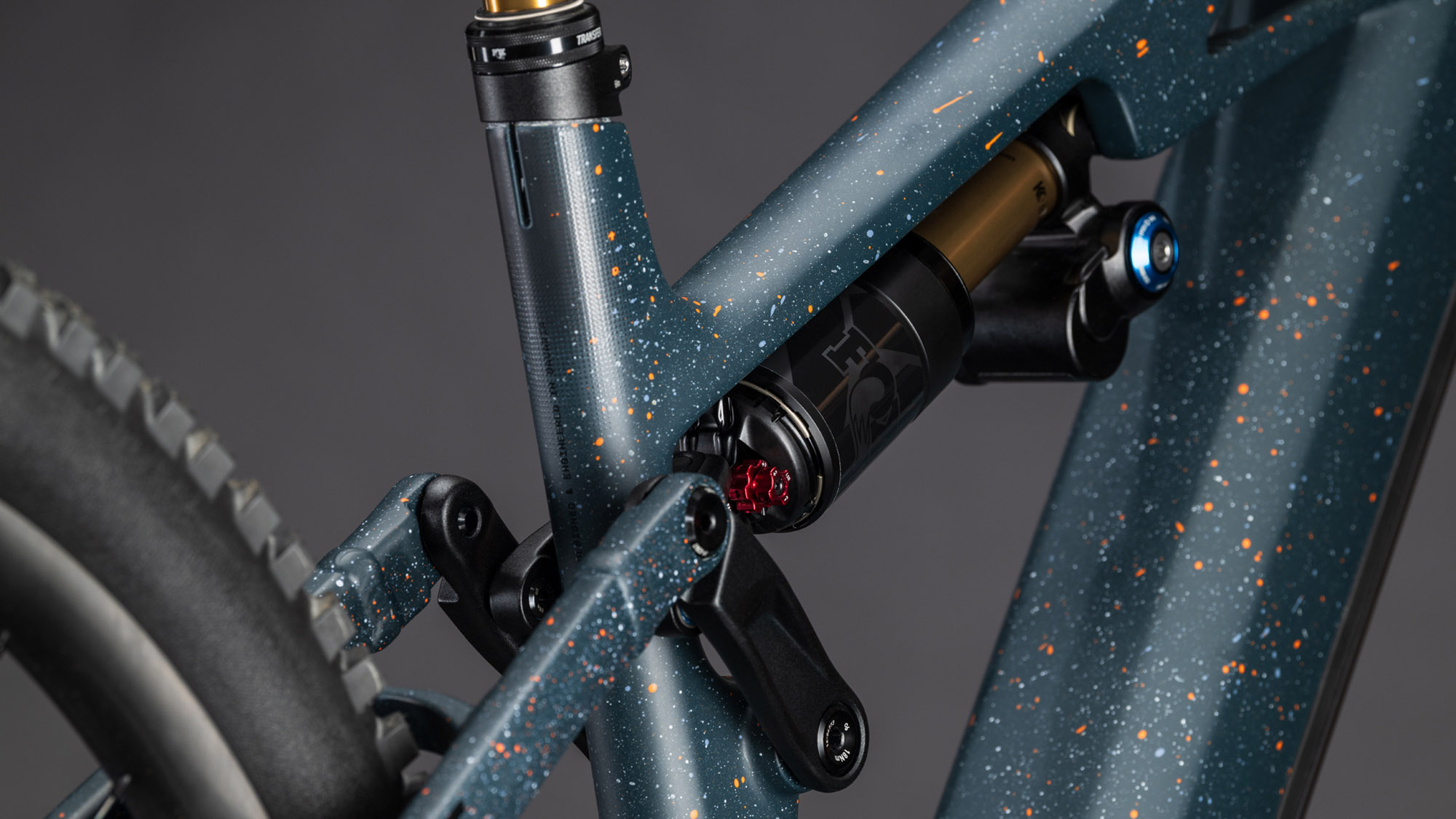

| Rear Shock: | Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever |
| Travel: | 170 mm / 170 mm |
| Brakes: | Magura Gustav PRO, Front 4-Piston/Rear 4-Piston, Hydr. Disc Brake (203/203) |
| Brake discs: | 203/203 mm |
| Headset: | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface |
| Stem: | CUBE Performance Stem E-MTB 35, FPI-Link |
| Handlebar: | Race Face ERA 35 |
| Bar grips: | ACID Disrupt, Soft Compound |
| Saddle: | ACID Venec EMTB Trail 140 |
| Seatpost: | Fox Transfer Factory 31.6mm, Kashima Coated |
| Seat clamp: | CUBE Semi-Integrated |

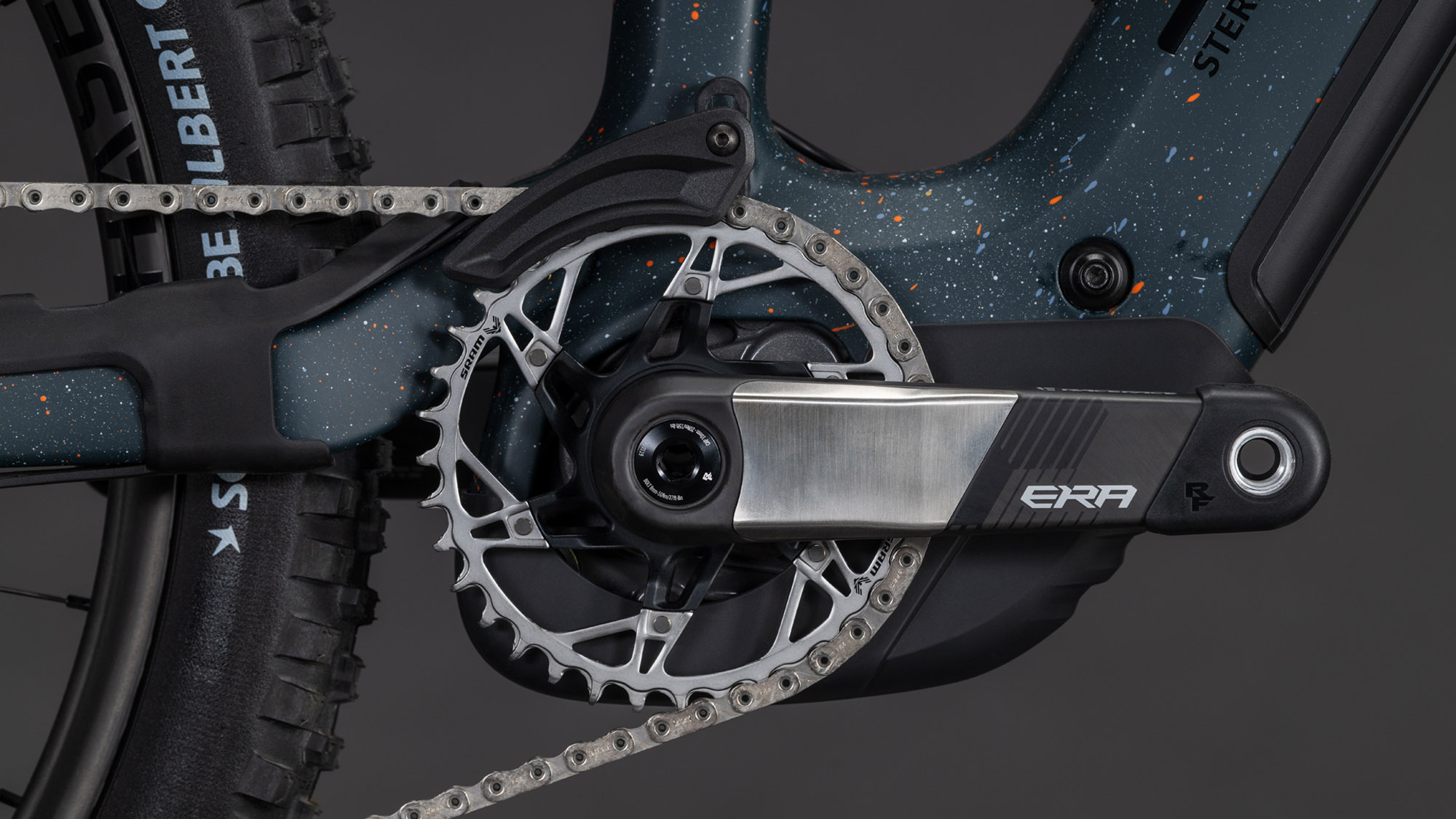

| Crankset: | Race Face ERA E-MTB, 36T |
|---|---|
| Rear derailleur: | Sram XX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System |
| Gear shifters: | Sram AXS™ Pod Ultimate Controller |
| Chain guide: | Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
| Cassette: | Sram XS-1297, 10-52T |
| Chain: | Sram XX Eagle Transmission |
| Front tyre: | Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5 |
| Rear tyre: | Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5 |
| Wheelset: | Newmen Phase 30 base/strong, 28/28 Spokes, 15x110mm / 12x148mm, Tubeless Ready |
| Display: | Bosch Kiox 400C incl. Mini Remote |
| Battery: | Bosch PowerTube 800 |
| Charger: | Bosch 4A |
| Engine: | Bosch Drive Unit Performance Line CX-R 120Nm (BDU38) |
| Bearing dimension: | Front: 30x8mm, Rear: DU-Bushing 12.7mm |
| Pedals: | ACID PP MTB |
| Maximum total weight allowed: | 160 kg (body weight + bike + equipment) |
| Weight: | starting from 23,8 kg |
Bosch Performance Line CX-R - Smart System
Exceptional and consistently designed for maximum trail performance: The Bosch Performance Line CX-R is the highest quality drive unit in the Bosch portfolio. Developed together with professionals, it stands for pure power, precise control and an adrenaline-fuelled riding experience at the highest level.
The fifth generation of the CX-R already combines a highly sporty set-up of power, dynamics and efficiency for demanding off-road use. With the Performance Upgrade 2.0, Bosch is significantly expanding this performance level once again and giving you more control over acceleration and power delivery.
The free software update will be available from May 2026 via the Bosch eBike Flow app and gives compatible systems a noticeable increase in performance. The maximum torque increases to up to 120 Nm (standard: 100 Nm), while the assistance is increased to up to 600 % (standard: 400 %). In addition, the maximum motor power of 750 watts is provided over a longer period of time, which ensures greater consistency, especially under high loads.
The strongest support is provided in the range from 0 to 15 km/h and ensures particularly direct, powerful acceleration from a standing start. The legally prescribed assistance limit of 25 km/h remains unchanged.
The additional power reserves can be individually distributed to different riding modes via the eBike Flow app. This allows the ratio of torque, assistance and dynamics to be specifically adapted to the route, area of use and riding style.

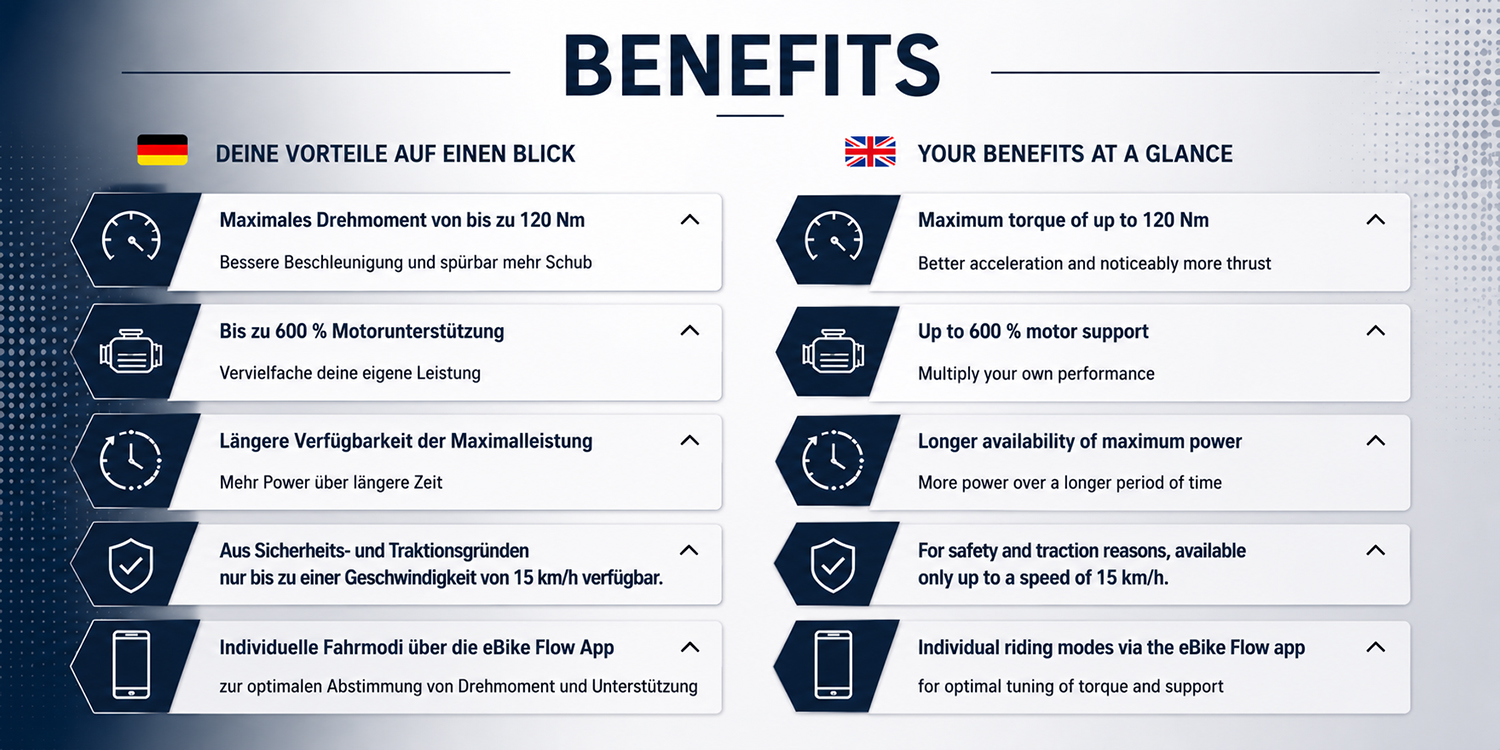

- Noticeably stronger acceleration and significantly more propulsion
- More power available over a longer period of time
- Customisation of the riding modes via the eBike Flow app
- Finely tuned control over torque and assistance characteristics
- 120 Nm maximum torque
- 750 watts maximum motor power
- Up to 600 % support for maximum performance
- low system weight of 2.7 kg
High quality. First class. Exceptional - For uncompromising trail riding.
Premium materials - Inspired by aerospace and racing
Housing
The housing of the Performance Line CX-R is made of magnesium
Crankshaft
The crankshaft is made of titanium and ensures low weight and a long range.
Ball bearing
The ceramic ball bearing runs more smoothly to get even more performance out of it
High-quality sensors
Intelligent sensors measure 1,000 times per second. Your input is measured up to a thousand times per second by high-performance sensors.
Race mode - uncompromising support
The exclusive Race mode gets you up to top speed quickly. In addition to uncompromising support, you can expect a maximum extended boost for best times. Riding mode for demanding eMTB races
- uncompromising support with up to 400 % of your own power
- competitive dynamics and maximum Extended Boost
- developed with eBike athletes for use in eMTB races - exclusively only in our most powerful Drive Units
- customisable via the eBike Flow app
eMTB+ mode
EMTB+ mode combines the precise controllability of eMTB mode with the full power of Race mode and bridges the gap between the two modes. With the built-in "Dynamic Control", you ride with full control, even if you have increased your performance values. In steep, bumpy riding situations, you have superior propulsion and on loose or wet surfaces it is like traction control.
Quieter
Innovative solutions minimise noise so that you can fully focus on the trail.
Everything for your eMTB adventure - Pure Power. Precise support.
eShift
Combine the Performance Line CX-R with eShift and sporty derailleur gears. This makes it easier to change gears - for full focus on the trail.
Braking statistics (optional)
With Bosch eBike ABS and ABS Pro, you can brake with even greater performance and precision. You can also view your braking data on your display or in the eBike Flow app.
Heart rate measurement
Your heart rate always in view: You can connect your heart rate monitor or your Apple Watch to your eBike and track your heart rate on your display while riding.
Strava
When you set off, the eBike Flow app automatically records your ride data and synchronises it automatically with Strava or Apple Health if you wish.
eBike Flow app
Use the eBike Flow app to fine-tune your individual riding modes or to record, analyse and share tour and fitness data.
| New | |
|---|---|
| Performance Line CX-R (BDU386Y) | |
| eBike system | The smart system |
| Gear type | Derailleur gears, hub gears |
| Max. Support level (%) | 600 % |
| Max. possible drive torque | 120 Nm |
| Starting behaviour | direct, very powerful |
| Support up to max. | 25 km/h |
| Coaster brake | no |
| Push assist with hill hold | yes |
| Hill start assist with hill hold | yes |
| Shifter identification | Gear hub: no Derailleur gears: yes |
| Weight, approx. | 2.7 kg |
| Rated continuous power | 250 W |
| Maximum power | 750 W |
| Max. Power at a cadence of 70 rpm | 730 W |
| Max. weight-related power, approx. | 277 W/kg |
eBike Flow app
The eBike Flow app is the centrepiece of our smart system and gives you a better, connected riding experience: safer, more individual and more comfortable.
eBike Lock - free additional protection against theft
Ideal addition - park your eBike. Enjoy time out.
eBike Lock is free of charge for all eBikes with the smart system. When you switch on your eBike, it automatically checks whether your smartphone is nearby as a digital key. Only then will the motor assistance be enabled and your eBike unlocked.
Display as a key - use your Kiox 300 or Kiox 500 as a key
It's as intuitive as it sounds: you remove the display from the holder and stow it away. This quickly gives your eBike additional protection. Put the display back in and use it to activate the motor support to set off.
Unlocking via smartphone - unlock eBike manually via smartphone
Instead of unlocking your eBike automatically, you can also unlock it manually using your smartphone with a button on the home screen.
Battery Lock - digitally lock the battery
Additional protection - protect a valuable component of your eBike
With Battery Lock, you can also protect your eBike battery digitally: This function ensures that your battery can no longer be used if it is stolen.
Digital keys - Flexible with a digital key
You can use several digital keys at the same time for Battery Lock: your smartphone with the eBike Flow app and your Kiox 300 or Kiox 500.
Flow+ - Premium service with Flow+
Battery Lock is available as a premium service from Flow+. You can test Flow+ free of charge - for 12 months with the ConnectModule. Without the ConnectModule, you get one month free of charge.
Protect your eBike - eBike Alarm
Carefree parking - valuable location and status information
Whether you're only parking your eBike for a short time or are away for a longer period, your smartphone will keep you connected and relaxed.
Two-stage alarm - audible and visual alarm
Your eBike warns you with sound signals and illuminated LEDs when it detects movement or is moved. You will also receive a notification on your smartphone.
Tracking functions - helpful location tracking
If your eBike is moved a lot, you can use the tracking function to track its location.
eBike Pass - All data always to hand
The eBike passport allows you to keep track of important information about your eBike. Data about the eBike is stored here. You can add details manually - even independently of eBike Alarm.
Theft report - quick help in the event of theft
If your eBike is stolen, you can create a document with all the important information about the incident for the police, based on the data from the eBike Pass - and add a live tracking link.
Navigation - Exploring means experiencing
Route planning - plan according to your needs
Select the route profile and map details that suit your journey. Plan your own routes with intermediate destinations or import existing ones from komoot.
Display navigation - Navigate precisely with your display
The navigation function for Kiox 300, Kiox 400C and Kiox 500 takes you precisely to your destination - with turn-by-turn directions and clear route guidance. If you have subscribed to Flow+, you will receive even more map details on your display.
Ride Screen - turn your smartphone into an eBike display
You can use the Ride Screen with the SmartphoneGrip. It not only shows you all the important riding data, but also offers full navigation with 3D map display - even in portrait format.
Activity tracking - automatically record and analyse ride data
The eBike Flow app records your ride data as soon as you set off. The statistics provide you with valuable insights into your tour and fitness data - for analysing and sharing. If desired, all data can also be synchronised automatically with Apple Health.
koomot and Strava - Connect the eBike Flow app with your favourite apps
Transfer your routes from komoot to the eBike Flow app, synchronise your activities with Strava and share your successes with your friends or your community.
Personalise your eBike - as individual as you are
Display configuration
Configure your Kiox 300, Kiox 400C or Kiox 500 display according to your needs. Create new screens with your favourite information. Choose from over 30 display options and organise them as you wish.
Individual riding modes - tune and customise
Support, dynamics, maximum torque and maximum speed - you decide what you need. You can also put together your favourite riding modes. Choose from all the riding modes available for your eBike.
Performance Upgrade 2.0- Performance redefined
Unleash more power for your eBike. The Performance Upgrade 2.0 not only provides better acceleration, but also stronger support. Software optimisations give you more powerful propulsion and make you faster for longer - with even more precise control. Maximum torque of up to 120 Nm per update. Deviations are possible depending on the type of shifting. Higher performance values can lead to increased wear and lower range. The eBike manufacturer can limit the maximum torque at the factory. Therefore, only the maximum value approved by the manufacturer can be set in the eBike Flow app.
Available for:
- Performance Line CX-R (BDU386Y)
- Performance Line CX (BDU384Y)
- Cargo Line (BDU384Y)
Performance values supplied as standard:
- Performance Line CX-R: 100 Nm / 750 W / 400 % support
- Performance Line CX: 85 Nm / 600 W / 340 % support
- Cargo Line: 85 Nm / 600 W / 400 % support
The factory settings ensure a good balance between performance, riding enjoyment, range and wear.
Up to 600 % assistance up to 15 km/h.
Available in Race, Turbo, eMTB+, Cargo and Auto riding modes for selected drive units of the smart system.
Compatible drive units:
- Performance Line CX-R (BDU386Y)
- Performance Line CX Race Limited Edition (BDU376Y)
- Performance Line CX (BDU384Y / BDU374Y)
- Cargo Line (BDU384Y / BDU374Y)
- Performance Line PX (BDU347Y)
Only in the USA and New Zealand:
- Performance Line Speed (BDU388Y)
- Performance Line Sport (BDU347Y)
Details on compatibility can be found in the eBike Flow app.
The Drive Units are supplied with a maximum of 340 % or 400 % support as standard - depending on the respective model. These settings offer a balanced relationship between performance, riding enjoyment, range and wear.
Display configuration
Configure your Kiox 300, Kiox 400C or Kiox 500 display according to your needs. Create new screens with your favourite information. Choose from over 30 display options and organise them as you wish.
Extended Boost - Precise push. More momentum
A targeted push on the pedal is all it takes to give your eBike that decisive boost. With the Extended Boost, you can overcome obstacles such as steps or stones. Customise the extra boost in the eBike Flow app.
Further functions
Over-the-air updates
Updates keep your eBike up to date and even improve it. You can easily download new eBike functions and transfer them to your eBike via Bluetooth.
One account. Multiple eBikes
The eBike Flow app becomes your digital garage: you can add up to six eBikes to your account - and easily switch between them.
Digital service book
Your Bosch eBike dealer can synchronise the data of your service appointments with the eBike Flow app. Simply tap on "My eBike" in the app settings and you will find a record of what was done when your eBike was serviced.
CO₂ savings
After your ride, find out how many CO₂ emissions you have saved compared to a car journey.
Trick Check - More skills. More fun.
Improve your skills and analyse your performance: Trick Check automatically recognises and records the type of tricks you perform, whether jumps, stoppies, manuals or wheelies. To help you improve your riding technique, you receive direct feedback on the display and via an acoustic signal. During the ride, you can see the distance, duration, altitude or angle on your display for eight seconds. After the ride, you can find your best values in the eBike Flow app. The function is active as standard on your Kiox 400C and Purion 400. For all other displays, you can activate it at any time in the display settings and switch the signal tone on and off. The sensor system is set so that it only reacts to clear tricks.
Trick Check works with the Performance Line CX (BDU384Y), Performance Line CX-R (BDU384Y), Performance Line CX Race (BDU374Y), Performance Line CX (BDU374Y) and Performance Line SX (BDU314Y) and on the following displays: Kiox 300, Kiox 400C, Kiox 500, Purion 200, Purion 400.
Features - Bosch Kiox 400C (BRC3200)
- Colour screen size: Diagonal approx. 2.0" / 5.1 cm
- Maximum typical brightness: 1,000 cd/m² with brightness control
- Power supply: eBike battery / internal battery
- Charging option for external devices via USB-C®
- Dynamic screen display without manual screen switching
- Warning tones for navigation
- Display configuration with 30 customisation options via the eBike Flow app
- Expandable with Mini Remote for more convenient operation
Product features
- Size (H x W x D): 45 x 86 x 20 mm
- Display: 2.0 inch display (5.1 cm)
- Compatibility: Bosch The smart system
- Weight: 57 g
More details
Protected in the frame
Kiox 400C is inconspicuously integrated into the frame and firmly installed in the top tube. This means it is optimally protected from bumps and knocks - even on fast-paced downhill rides.
Dynamic display
Kiox 400C always shows you exactly the information you need.
Charge USB-C devices
The integrated USB-C charging socket turns your eBike into a power bank. Easily charge your smartphone or eBike light - even while riding.
Brilliant display
A particularly bright 1,000 cd/m² display shows the information on the Kiox 400C in razor-sharp color. Thanks to the sensor, the brightness adapts to the ambient light.
Guidance sounds guide you
If you start the navigation in the eBike Flow app, your Kiox 400C automatically takes over the route and guides you precisely with audio instructions.
Display configuration
Customise the display of the Kiox 400C in the eBike Flow app to suit your preferences. With over 30 customisation options, you decide what you see on your display while riding.
Bosch Mini Remote
As an additional operating unit, the Mini Remote complements the System Controller, extends the range of functions and enables safe operation. It is connected to the System Controller via Bluetooth and can be flexibly mounted on the handlebars. The buttons near the thumb keep your hands on the handlebars at all times. More buttons offer more functions: With the Mini Remote, you get practical features such as the smart pushing aid and you can switch your eBike light on or off.
Quick to retrofit
The Mini Remote can be retrofitted quickly and is connected to the System Controller via Bluetooth.
Three buttons, more functions
The buttons on the Mini Remote have two functions: for the riding mode, the light function and the smart pushing aid, as well as for controlling a display.
Full flexibility
The Mini Remote works with or without a display. Operate the Ride Screen of the eBike Flow app or your display screens.
Intuitive operation
Short distances for the thumb and non-slip soft-touch surface: The buttons are labelled with icons and can be used intuitively.
Hardware facts
- Optional addition to the system controller for additional functions and convenient operation on the handlebars
- Control of the ride screen or navigation screen in the eBike Flow app (smartphone) or the Bosch display
- Smart pushing aid and innovative rollback protection (provides support on steep, unrideable inclines and can prevent the eBike from rolling backwards)
- Switch light on/off
- Optimum ergonomics of the buttons thanks to flat design
- Wireless mounting on the handlebars
- Soft-touch surface for particularly good grip
- LED indicates low battery of the Mini Remote, pairing activity or missing connection to the system
- The battery life (button cell CR1620) can last up to approx. 2 years and can be easily replaced by removing it from the handlebars and inserting it into the rubber insert
- IP54 protected against dust and splash water
- Temperature range: -5 °C to +40 °C (operation) and +10 °C to +40 °C (storage)
- Only available for eBikes with the smart system
- Bluetooth connectivity (Bluetooth 5.0 Low Energy)
Bosch PowerTube 600 / 800
Maximum range
With the PowerTube 600 / 800, long distances and many metres in altitude are easy to master.
Stylish eBike design
Like all Bosch PowerTubes, the PowerTube 600 / 800 is perfectly integrated into the frame. An attractive eBike design and high capacity - a combination without compromise. A new, lighter housing has been used for the battery. Provided the eBike manufacturer has prepared the eBike for this, it can be easily replaced - for more or less range.
Reliable energy supplier
High safety standards. Enormous mileage, long service life, reliable handling - the lithium-ion battery is equipped with a battery management system that protects the battery cells from overload.
User-friendly handling
The PowerTube 600 / 800 is characterised by particularly easy handling. The battery is always securely anchored in the frame on all tours, removal is via an intuitive, lockable mechanism and offers you user-friendly operation.
Comparison table
| 600 | 800 | |
| System | The smart system | The smart system |
| Mounting type | In the frame | In the frame: Horizontal / Vertical |
| Voltage | 36 V | 36 V |
| Battery capacity | 16.7 Ah | 22.2 Ah |
| Energy content | approx. 600 Wh | approx. 800 Wh |
| Weight, Frame battery / Pannier rack battery | approx. 3.0 kg | approx. 3.9 kg |
| Size, horizontal / vertical | 424 x 71 x 67 mm | 424 x 77 x 71 mm / 430 x 71 x 77 mm |
| Compatible with DualBattery of the smart system | yes | yes |
| 4A Charger | 50 % charge: approx. 2.0 hours 100 % charge: approx. 5.3 hrs. | 50 % charge: approx. 2.6 hours 100 % charge: approx. 6.9 hours |
| 2A Charger | 50 % charge: approx. 4.2 hours 100 % charge: approx. 9.1 hours | 50 % charge: approx. 5.7 hours 100 % charge: approx. 12.4 hours |
Geometry
neleCustomerReviews.detail.tabReview.info
Last viewed
