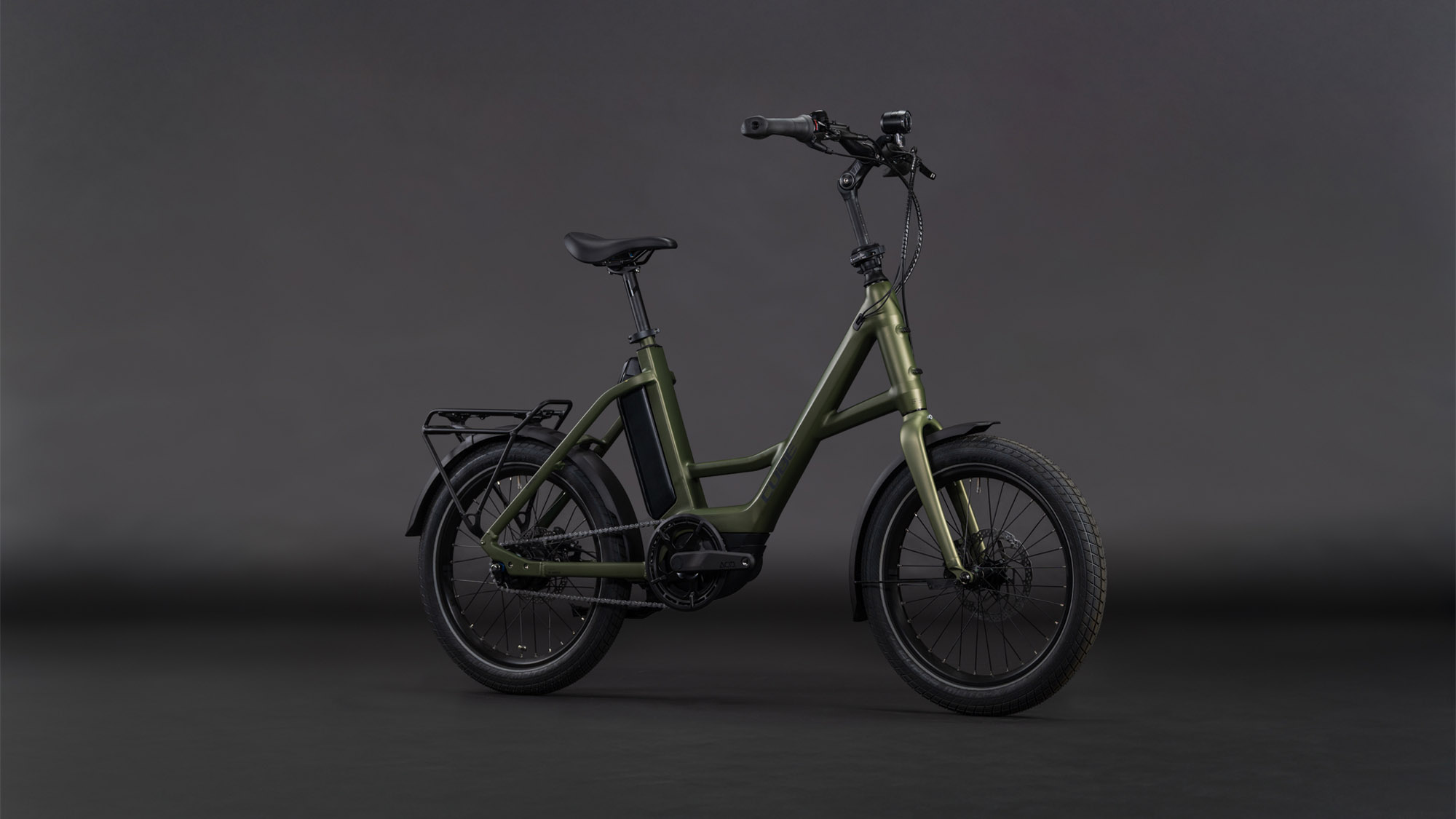

Cube Compact Hybrid Comfort 545 reedgreen´n´reflex

New
RRP* 2.599,00 €

2.209,15 €

incl. 19% VAT

plus shipping costs


Quantity
Item no: 20161839

Product information "Compact Hybrid Comfort 545 reedgreen´n´reflex"

Getting from A to B can be fun and accessible for everyone – the Compact Hybrid proves it. A rugged, easy step-through design fits riders of all sizes and makes the bike simple to store and transport. Bosch’s powerful Performance drive unit – with Smart System and 545Wh battery – takes the effort out of everyday riding, while Shimano’s wide-ranging and reliable 10-speed Cues gears handle any route with ease. Powerful hydraulic disc brakes deliver safe stopping in all conditions. Integrated lighting, mudguards, luggage carrier and kickstand make the Compact Hybrid ready for everyday use. For work, for play, for any occasion.
open 360° view

Highlights

  • Elegant and super-comfortable aluminum frame with practical carrying handle on the down tube - designed for a system weight of 142 kg
  • Powerful Bosch Performance Line Smart System motor with 75 Nm torque
  • Long range thanks to Bosch PowerPack 545 Wh battery
  • Bosch Purion 200 display for clear and intuitive operation of the e-bike system
  • Shimano Nexus 5-speed hub gear
  • Hydraulic 2-piston BR-MT200 disc brakes from Shimano with 180/160 mm rotors
  • High-quality and robust ACID SLX 30 tubeless ready wheelset
  • Equipped with mudguards, pannier rack and lights from ACID

FRAME Cube Compact Hybrid Comfort 545

The simplest solutions are often the best. The Compact Hybrid's cross-braced down tube is elegant, stiff and strong. It makes stepping on and off easy and also serves as a convenient carrying handle. A long head tube ensures accurate, safe steering. The smooth and powerful Bosch Performance drive unit sits in a custom housing at the bottom of the frame, while the 545Wh battery is tucked neatly out of the way of both luggage and rider. Bosch's Smart System provides complete control, accessible via the eBike Flow app. Quick and easy saddle and handlebar adjustments allow the bike to fit a wide range of riders. An optional front luggage carrier boosts carrying capacity and adds extra versatility. For commuting, for shopping, for camping, for exploring.


Flexibles ONE SIZE CONZEPT

The flexible ONE SIZE CONCEPT makes one bike so versatile that it can be used by any number of people – irrespective of their height. Everyone can enjoy a comfortable ride courtesy of the upright riding position and step-through frame. The saddle and stem easily adjust up or down to suit any rider from around 5ft 2in to 6ft 2in (1.60m to 1.90m). The ONE SIZE CONCEPT is a universal platform that's ideal to share between the whole family, partners, friends, neighbours and colleagues alike. Or keep it for yourself as the perfect companion for wherever life takes you. One bike, flexible for all!


Technologies

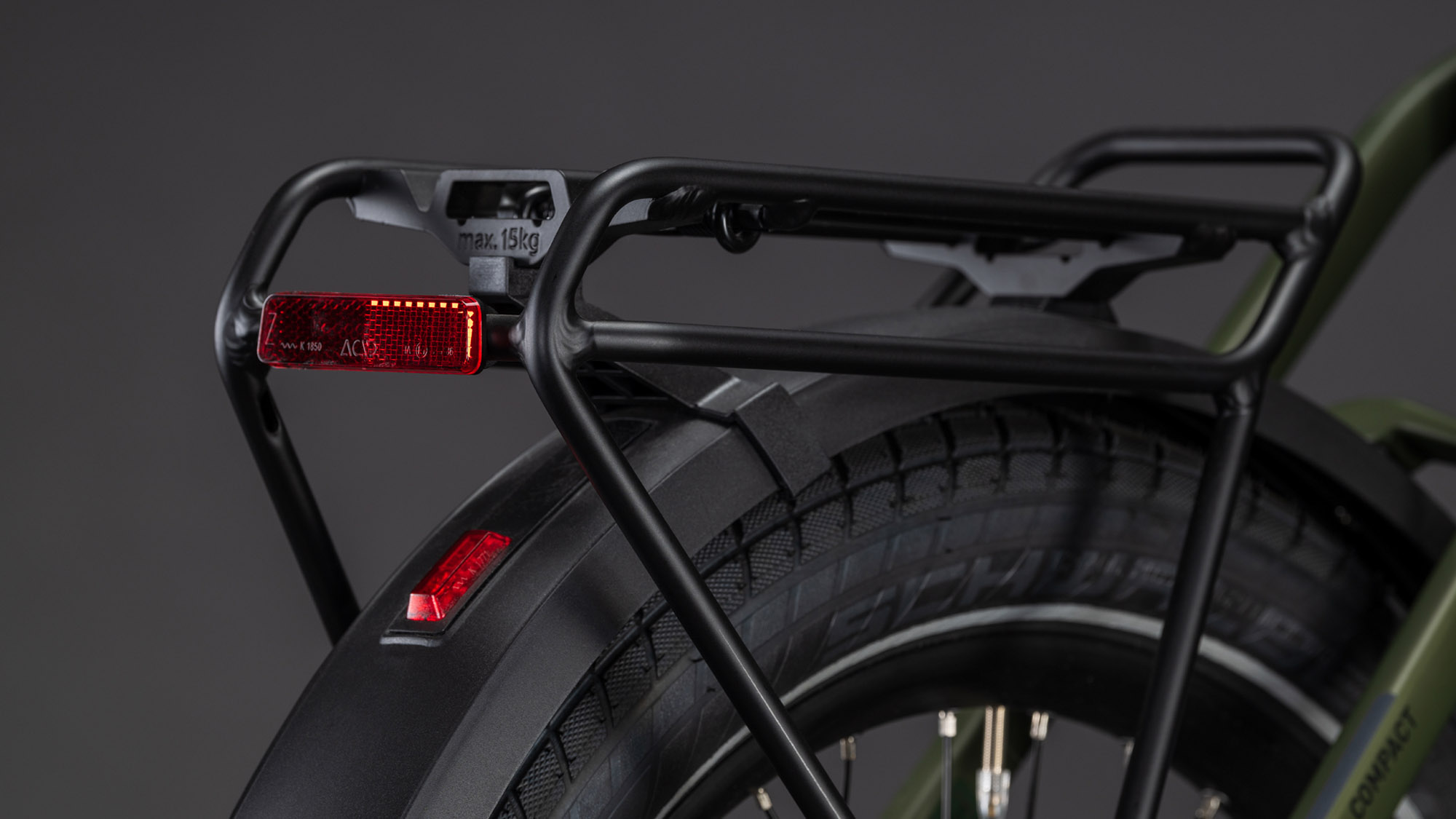

Semi Integrated Carrier
The luggage carrier as a necessary evil that detracts from the look of the bike? Not with CUBE! The stable, adaptable, semi-integrated carrier blends so beautifully and cleanly into the frame that it is hardly noticeable. But when it comes to transporting bags, shopping or other luggage safely and comfortably from A to B, it really comes into its own. Conclusion: a practical helper that makes everyday life easier!

Suitable for front luggage racks
The Compact Hybrid is the epitome of versatility and is more confident and practical in city traffic than almost any other bike of its size. But if you need a little more load capacity and therefore flexibility, the special front carrier comes into play. aesthetically pleasing in appearance, stable and secure - the odd bag will happily travel on it on the way to the office or to the shops.

High Performance Aluminum
High Performance Aluminum (HPA) allows you to get the best performance out of the stable and extremely durable material aluminum. A specially matched alloy is used, the quality of which is precisely tailored to the requirements of the respective model. The tube sets are shaped according to the area of application and each frame is welded to fit precisely. The result: a guaranteed light, stable, durable and safe bike.

Comfort Ride Geometry
As the name suggests, our Comfort Ride Geometry stands for maximum comfort on two wheels - an advantage that all riders will appreciate! Cube has carefully fine-tuned all the details, such as the frame angle and dimensions, so that you sit as naturally and intuitively as possible on the bike. And for the perfect mix of stability and agility. Conclusion: Riding comfort and safety in one!

One Size Concept
The flexible One Size Concept makes a bike so versatile that anyone can ride it, regardless of their height! The saddle and stem can be easily adjusted up or down to fit riders from 1.60 m to 1.90 m tall. Top comfort and a relaxed riding experience included. The result is the ideal bike for everyone - family, partner, friends, neighbors and colleagues. Or the perfect companion for you and everything you plan to do with it.

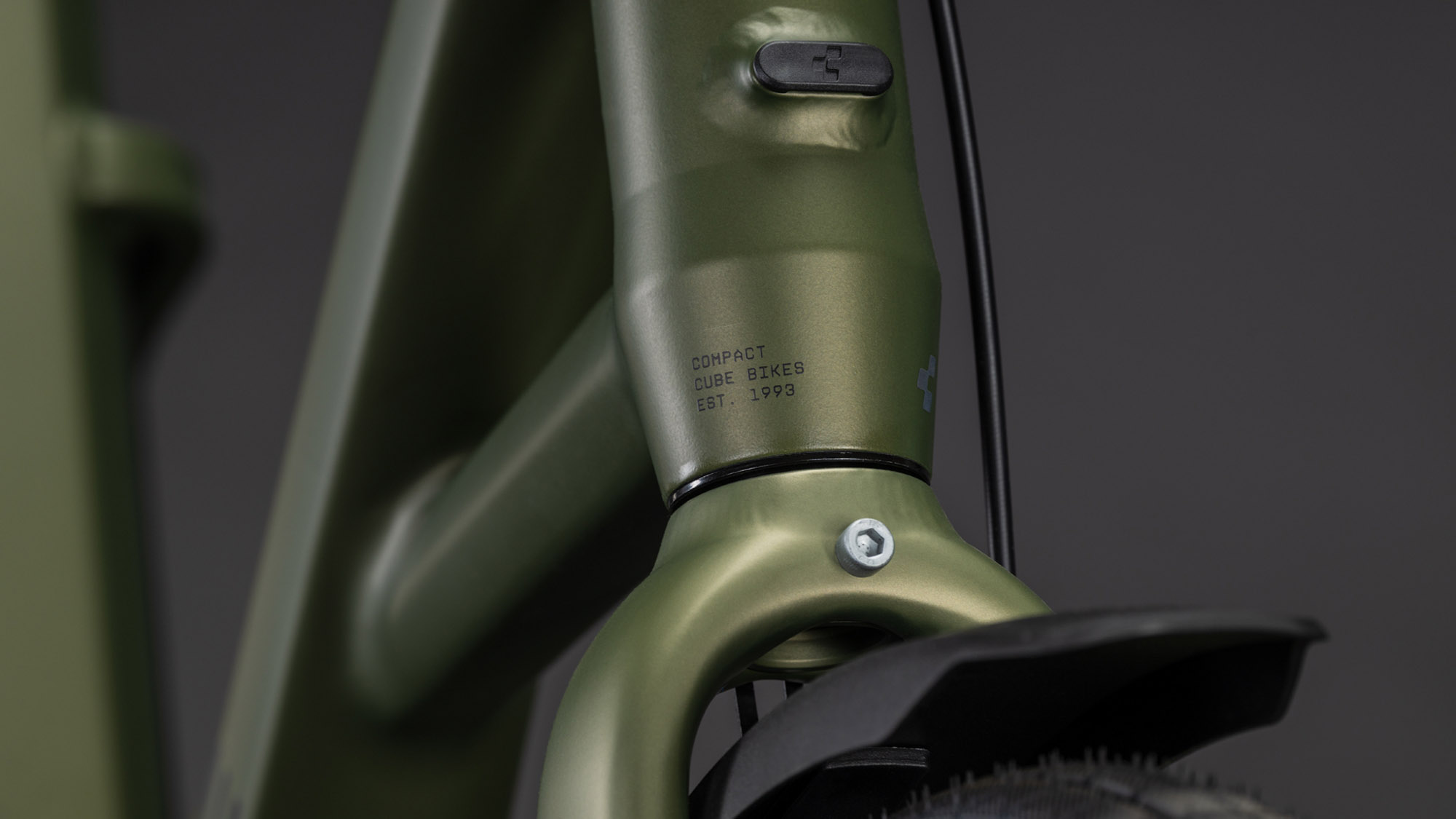

X-Connect
X-Connect is a simple and effective way of attaching a compatible ACID light to a CUBE bike. A connector is integrated into the headset and the cables are routed inside the frame. For top safety and visibility, simply plug in the light, switch it on and ride off!

  • Manufacturer number: 118210
  • Model Year: 2026

  • Manufacturer:
    Pending System GmbH & Co. KG
    Ludwig-Hüttner-Str. 5-7
    95679 Waldershof
    Deutschland
    https://www.cube.eu/kontakt

Cube Compact Hybrid Comfort 545 reedgreen´n´reflex

Getting from A to B can be fun and accessible for everyone – the Compact Hybrid proves it. A rugged, easy step-through design fits riders of all sizes and makes the bike simple to store and transport. Bosch’s powerful Performance drive unit – with Smart System and 545Wh battery – takes the effort out of everyday riding, while Shimano’s wide-ranging and reliable 10-speed Cues gears handle any route with ease. Powerful hydraulic disc brakes deliver safe stopping in all conditions. Integrated lighting, mudguards, luggage carrier and kickstand make the Compact Hybrid ready for everyday use. For work, for play, for any occasion.
open 360° view

Highlights

  • Elegant and super-comfortable aluminum frame with practical carrying handle on the down tube - designed for a system weight of 142 kg
  • Powerful Bosch Performance Line Smart System motor with 75 Nm torque
  • Long range thanks to Bosch PowerPack 545 Wh battery
  • Bosch Purion 200 display for clear and intuitive operation of the e-bike system
  • Shimano Nexus 5-speed hub gear
  • Hydraulic 2-piston BR-MT200 disc brakes from Shimano with 180/160 mm rotors
  • High-quality and robust ACID SLX 30 tubeless ready wheelset
  • Equipped with mudguards, pannier rack and lights from ACID

FRAME Cube Compact Hybrid Comfort 545

The simplest solutions are often the best. The Compact Hybrid's cross-braced down tube is elegant, stiff and strong. It makes stepping on and off easy and also serves as a convenient carrying handle. A long head tube ensures accurate, safe steering. The smooth and powerful Bosch Performance drive unit sits in a custom housing at the bottom of the frame, while the 545Wh battery is tucked neatly out of the way of both luggage and rider. Bosch's Smart System provides complete control, accessible via the eBike Flow app. Quick and easy saddle and handlebar adjustments allow the bike to fit a wide range of riders. An optional front luggage carrier boosts carrying capacity and adds extra versatility. For commuting, for shopping, for camping, for exploring.


Flexibles ONE SIZE CONZEPT

The flexible ONE SIZE CONCEPT makes one bike so versatile that it can be used by any number of people – irrespective of their height. Everyone can enjoy a comfortable ride courtesy of the upright riding position and step-through frame. The saddle and stem easily adjust up or down to suit any rider from around 5ft 2in to 6ft 2in (1.60m to 1.90m). The ONE SIZE CONCEPT is a universal platform that's ideal to share between the whole family, partners, friends, neighbours and colleagues alike. Or keep it for yourself as the perfect companion for wherever life takes you. One bike, flexible for all!


Technologies

Semi Integrated Carrier
The luggage carrier as a necessary evil that detracts from the look of the bike? Not with CUBE! The stable, adaptable, semi-integrated carrier blends so beautifully and cleanly into the frame that it is hardly noticeable. But when it comes to transporting bags, shopping or other luggage safely and comfortably from A to B, it really comes into its own. Conclusion: a practical helper that makes everyday life easier!

Suitable for front luggage racks
The Compact Hybrid is the epitome of versatility and is more confident and practical in city traffic than almost any other bike of its size. But if you need a little more load capacity and therefore flexibility, the special front carrier comes into play. aesthetically pleasing in appearance, stable and secure - the odd bag will happily travel on it on the way to the office or to the shops.

High Performance Aluminum
High Performance Aluminum (HPA) allows you to get the best performance out of the stable and extremely durable material aluminum. A specially matched alloy is used, the quality of which is precisely tailored to the requirements of the respective model. The tube sets are shaped according to the area of application and each frame is welded to fit precisely. The result: a guaranteed light, stable, durable and safe bike.

Comfort Ride Geometry
As the name suggests, our Comfort Ride Geometry stands for maximum comfort on two wheels - an advantage that all riders will appreciate! Cube has carefully fine-tuned all the details, such as the frame angle and dimensions, so that you sit as naturally and intuitively as possible on the bike. And for the perfect mix of stability and agility. Conclusion: Riding comfort and safety in one!

One Size Concept
The flexible One Size Concept makes a bike so versatile that anyone can ride it, regardless of their height! The saddle and stem can be easily adjusted up or down to fit riders from 1.60 m to 1.90 m tall. Top comfort and a relaxed riding experience included. The result is the ideal bike for everyone - family, partner, friends, neighbors and colleagues. Or the perfect companion for you and everything you plan to do with it.

X-Connect
X-Connect is a simple and effective way of attaching a compatible ACID light to a CUBE bike. A connector is integrated into the headset and the cables are routed inside the frame. For top safety and visibility, simply plug in the light, switch it on and ride off!

  • Manufacturer number: 118210
  • Model Year: 2026

  • Manufacturer:
    Pending System GmbH & Co. KG
    Ludwig-Hüttner-Str. 5-7
    95679 Waldershof
    Deutschland
    https://www.cube.eu/kontakt

Configuration

Frame: Aluminium Superlite, Comfort Ride Geometry, Semi-Integrated Carrier, Double Butted, Front-Carrier Ready, Slider Dropout
Frame material: aluminium
Wheel size: 20"
Speeds: 1 x 9
Colour: reedgreen´n´reflex
Fork: Aluminium Rigid Fork, 20"
Brakes: Shimano BR-MT200, Hydr. Disc Brake
Brake discs: 180/160 mm
Headset: Cube H835D3, Semi-Integrated, Sealed bearing
Stem: BySchulz Speedlifter Twist Pro SDS T15
Handlebar: CUBE Comfort Trail Bar, 680mm
Bar grips: ACID Travel Comfort Gripshift
Saddle: ACID Sequence Pro 160
Seatpost: Newmen Evolution, 27.2mm

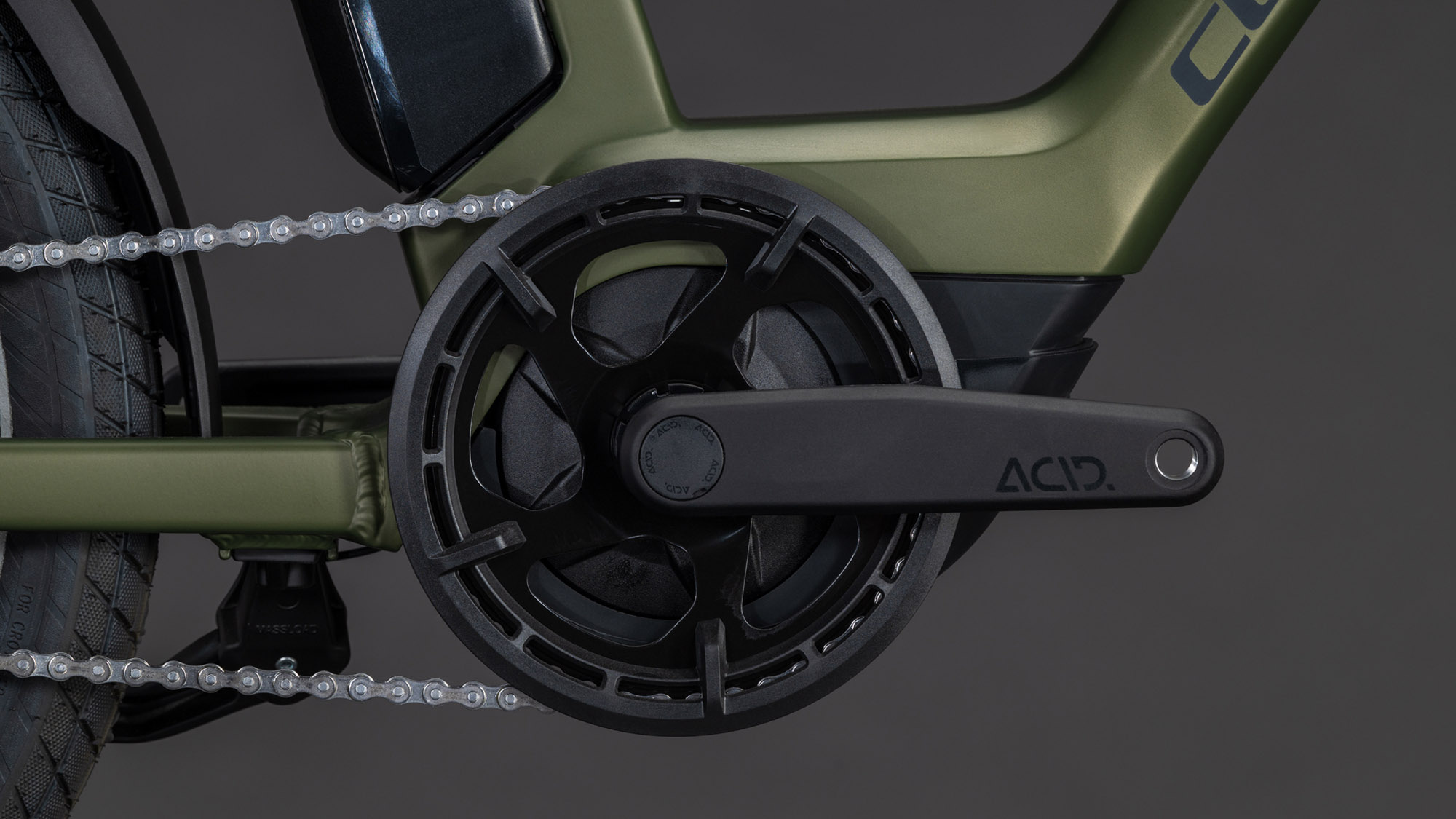

Crankset: ACID Trekking Hybrid, 44T
Cassette: Shimano Nexus CS-C7000, 24T
Chain: KMC Z610
Tyres: Schwalbe Super Moto-X, Double Defense, 62-406
Front hub: Shimano HB-QC300, QR, Centerlock
Rear hub: Shimano Nexus SG-C7000-5D, 5-Speed, Centerlock, Nut
Rims: ACID EX30, 32H, Disc, Tubeless Ready
Display: Bosch Purion 200 with Integrated Display
Battery: 1 x Bosch PowerPack 500 (expandable to 2 x PowerPack 500)
Charger: Bosch 2A
Engine: Bosch Drive Unit Performance Line 75Nm, 600Watt, (BDU34)
Front light: ACID Front Light PRO-E 60 X-Connect, 12V, DC
Backlight: ACID Mudguard Rear Light PRO-E, 12V, DC
Rack: ACID 20" Semi-Integrated Carrier, ACID RILink Adapter Compatible
Pedals: not included
Other details: mud guard, stand, bell
Maximum total weight allowed: 142 kg (body weight + bike + equipment)
Weight: starting from 24 kg

Bosch Performance Line 2025 (BDU346Y) - All-rounder for everyday use and excursions

  • 75 Nm Max. Max. torque
  • 600 W Max. Motor power
  • 340 % Max. Max. support
  • 2.8 kg motor weight

Comfortable and reliable
The Performance Line is your perfect all-rounder - in everyday life and on excursions into the countryside. With up to 75 Nm of torque and 600 W of power, it provides you with reliable support when commuting or riding around the lake.

Intensive support
With a maximum of 340 % support, 75 Nm torque and 600 W power, the Performance Line is ideal for everyday use and excursions.

Natural riding feel
The Performance Line adapts sensitively and almost silently to your riding style. When starting off, it provides you with an intensive and even boost - making it easier to start at traffic lights, for example.

Lighter and slimmer
At just 2.8 kg, the Performance Line is 400 g lighter than its predecessor and therefore also fits into slimmer frames - with the same level of support.

Reliable companion
The Performance Line has a robust design and requires no additional maintenance even under intensive use - ideal for daily use, even in wind and weather. In addition to reliability, we have also attached great importance to the responsible use of materials in the development of the drive unit. For example, we use around 40% recycled aluminum in the drive housing. This has enabled us to save almost half of the housing's CO₂ emissions. We also use recycled plastic for some components in the drive unit - thereby supporting the circular economy.

The right support
Automatically the optimum assistance regardless of your own performance: automatic and optimum adaptation of the assistance to the riding situation with up to 340 %.
no need to switch riding modes manually on climbs or sudden headwinds

ideal for eCity, eTrekking, eUrban bikes and S-Pedelecs
individually customizable via the eBike Flow app

New
Performance Line (BDU346Y)
eBike system The smart system
Gear type Derailleur gears,
Hub gears
Max. Support level (%) 340 %
Max. possible drive torque 75 Nm
Starting behavior powerful, smooth
Support up to max. 25 km/h
Coaster brake yes
Push assist with Hill Hold yes
Hill start assist with hill hold yes
Switch recognition optional
Weight, approx. approx. 2.8 kg
Nominal continuous power 250 W
Maximum power 600 W
Max. Power at a cadence of 70 rpm 440 W
Max. weight-related power, approx. 214 W/kg

Bosch eBike Flow app

Extend the eBike
Use the eBike Flow app to download new functions and updates for components such as the battery or motor and send them to your eBike via Bluetooth. This keeps it up to date and gives you more options.

Record activities
Record your tour and fitness data as soon as you set off. For iPhone users, Activity Tracking also synchronizes all data automatically with Apple Health if desired. If you take a break, the recording stops automatically.

Individualize riding modes
Customize the riding mode exactly to your needs: You can fine-tune the Eco, Tour, Sport and Turbo riding modes so that they offer you more support or consume less power.

Keep an eye on everything
Get a quick overview of everything important on the home screen. Whether battery status, remaining range, distance already ridden or next service appointment - the home screen shows you everything you need to know with constantly updated eBike data.


Bosch Purion 200 Remote with integrated 1.6" color display

Developed with ergonomics experts
Purion 200 is mounted on the left-hand side of the handlebar, close to the thumb. Thanks to its curved shape, the combination of control unit and display fits beautifully on the handlebars. If the plus and minus buttons are aligned correctly - i.e. almost vertically - this means more comfort for you when operating the system and faster reading of the riding data. You can control your eBike with just one thumb movement and change the riding mode or the display, for example. We developed Purion 200 together with the ergonomics experts from SQlab to achieve the optimum combination of functionality, comfort and design.

Optimum readability
A high resolution, greater color depth, a clear structure and easy-to-understand symbols ensure that you can quickly read and understand the information on Purion 200. The integrated ambient light sensor automatically adjusts the brightness of the display depending on the ambient light. This makes it very easy to read even in sunshine and darkness.

Powerful display combinations
If you want more information or a larger display for even better readability, you can use another display in addition to Purion 200: Have Kiox 300 or Kiox 500 fitted via your specialist dealer or use your smartphone as a second display using SmartphoneGrip and the eBike Flow app. The additional new main display is controlled via the Purion 200 buttons. Purion 200 continues to show you the information that was last selected: For example, you can display the current speed on Purion 200 while your main display navigates you.

Wide range of functions
Purion 200 offers numerous functions to help you ride and arrive better. In addition to basic functions such as switching your eBike on and off and the lights, you can also activate the smart push-assist function using the Purion 200 buttons to make it easier to push your eBike when walking. At the touch of a button, you can change the display in a matter of seconds and simply select the information that is important to you at the moment: for example, keep an eye on the remaining range, see how far you have already ridden or check your cadence.

Intelligently connected
Five buttons, one display and lots of options: Purion 200 is networked in the smart system and connects the eBike to the eBike Flow app. This provides you with digital functions that you can easily activate and use via the app - e.g. for more theft protection, recording your activities or the option of adapting riding modes to your needs. In addition, Purion 200 is the interface for transferring updates to your eBike. So it is always up to date.


Bosch PowerPack 545

System The smart system
Mounting type Frame
Voltage 36 V
Battery capacity 14.4 Ah
Energy content approx. 545 Wh
Weight,
Frame battery /
Rack battery
approx. 3.0 kg
Size (L x W x D),
Frame battery /
Rack battery
338 x 93 x 81 mm
Compatible with DualBattery of the smart system yes
4A Charger 50 % charge: approx. 1.8 hours
100 % charge: approx. 4.9 hours
2A Charger 50 % charge: approx. 3.8 hours
100 % charge: approx. 7.7 hours

Geometry

20": ONE SIZE
445 mm
408 mm
72 °
480 mm
545 mm
500 mm
72 °
260 mm
580 mm
1080 mm
Geometry
