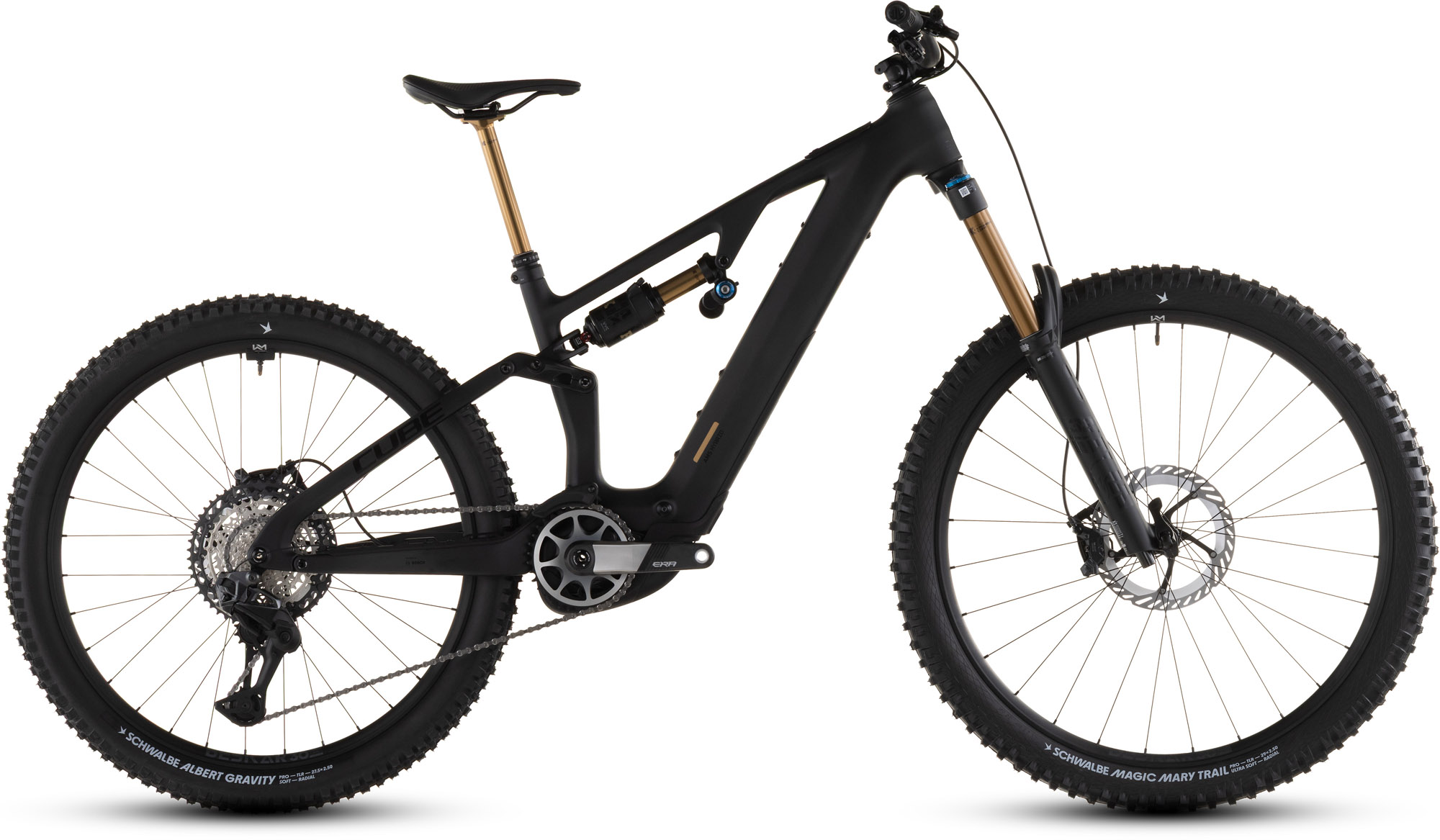

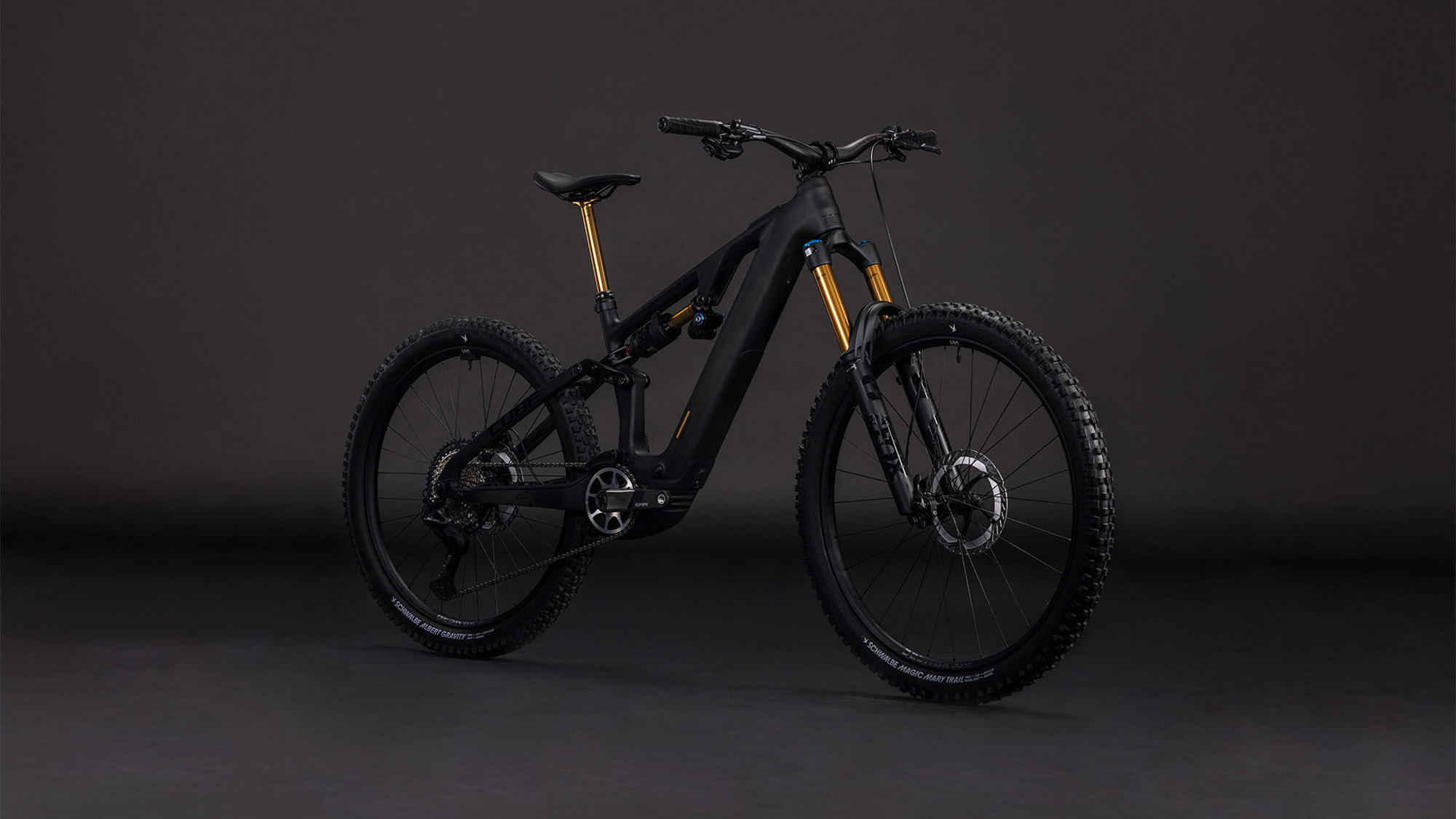

Cube AMS Hybrid ONE77 C:62 AT 600X carbon'n'gold
Product information "AMS Hybrid ONE77 C:62 AT 600X carbon'n'gold"
Highlights
- High-quality carbon frame with internal cable routing, UDH derailleur hanger, designed for a maximum system weight of 135 kg
- Powerful Bosch Performance Line CX Gen.5 Smart System motor with 100 Nm torque
- Long range thanks to the Bosch Powertube 600 Wh battery
- Bosch Kiox 400C display and Bosch Mini Remote for clear and intuitive operation of the e-bike system
- Fox 38 Float Factory GRIPX2 suspension fork with 170 mm travel
- Fox Float X2 Factory shock
- Shimano XT Di2 RD-M8260-SGS 12-speed drivetrain
- Hydraulic 4-piston Shimano XT BR-M8220 disc brakes with 203 mm rotors
- High-quality and durable Newmen Beskar 30 tubeless ready wheelset

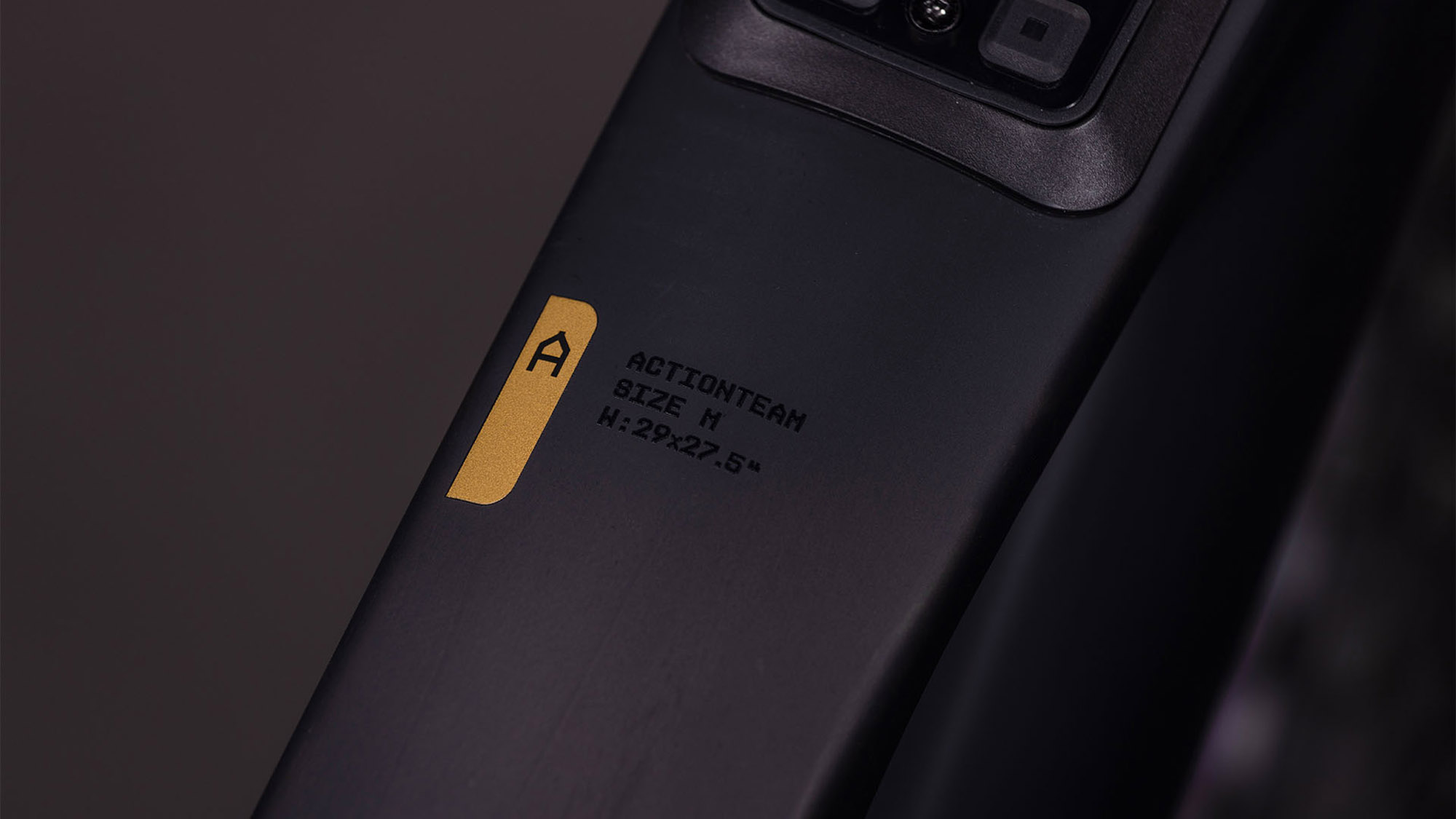

FRAME Cube AMS Hybrid ONE77 C:62 AT 600X carbon´n´gold
We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from our C:62® carbon and featuring Bosch's BDU38YY motor mount for compatibility with both SX and CX motors, it features a built-in 600Wh PowerTube battery. We've tweaked the geometry and kinematics to suit a bike built to take on rowdy, technical trails at high speed. Mullet wheels and 170mm travel front and rear deliver epic handling, and an angle-adjustable headset means you can tweak the geometry to suit your own preference. Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard. Bring it on!
Technology
C:62 Carbon Fiber Technology
Not all carbon is created equal. With the C:62® carbon Cube has increased the high modulus fibre content, then they reinforced the resulting material with nanoparticles incorporated into the bonding resin. Which is all just a fancy way of saying it's extremely strong, light and durable.
Advanced Internal Cable Routing
Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? Cube has come up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.
Fixed Integrated Battery
Bosch SX technology incorporates a new, lighter and more configurable battery setup. To make the most of the weight saving, we've integrated the new battery fully into the down tube. This means we can position it optimally for the best weight distribution and handling, as well as saving more weight by building a down tube that's precisely the right size to fit, and without the need for an access hatch. And the Power More option means you can add an additional 250Wh battery quickly and simply, for extra range. It's the best of both worlds.
Adjustabel headset angle
When you're harnessing gravity, the trail is challenging and every second counts, the geometry of your CUBE is a critical component. That's why our adjustable headset allows you to tweak head angle, so you can set your bike up just the way you like it. A little slacker for more stability, or a little steeper for better agility. The choice is yours...
Agile Ride Geometry
Agile Trail Geometry is a development of our popular and well received Agile Ride Geometry, with a focus on riders who enjoy pushing their limits on the trails. By lowering standover height and allowing more room for the rider to move around over the bike, we've created a setup that rewards adventurous line choices. Because, after all, it's all about having fun.
Universal Derailleur Hanger
One size fits all: Thanks to the innovative universal derailleur hanger, the derailleur hanger on your bike can be easily replaced. Cube has also designed it so that the derailleur hanger moves backward when the rear derailleur is hit hard, preventing chain jams. It also optimizes shifting and is compatible with all drivetrains. And best of all, as a standardized accessory, it is available everywhere.
Advanced Twin Mold
With the Advanced Twin Mold process we use two precisely manufactured forms for our C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.
- Manufacturer number: 105300
- Model Year: 2026
Ludwig-Hüttner-Str. 5-7
95679 Waldershof
Deutschland
https://www.cube.eu/kontakt
Cube AMS Hybrid ONE77 C:62 AT 600X carbon'n'gold
Highlights
- High-quality carbon frame with internal cable routing, UDH derailleur hanger, designed for a maximum system weight of 135 kg
- Powerful Bosch Performance Line CX Gen.5 Smart System motor with 100 Nm torque
- Long range thanks to the Bosch Powertube 600 Wh battery
- Bosch Kiox 400C display and Bosch Mini Remote for clear and intuitive operation of the e-bike system
- Fox 38 Float Factory GRIPX2 suspension fork with 170 mm travel
- Fox Float X2 Factory shock
- Shimano XT Di2 RD-M8260-SGS 12-speed drivetrain
- Hydraulic 4-piston Shimano XT BR-M8220 disc brakes with 203 mm rotors
- High-quality and durable Newmen Beskar 30 tubeless ready wheelset
FRAME Cube AMS Hybrid ONE77 C:62 AT 600X carbon´n´gold
We set out to make a lighter, more capable all-mountain e-mtb – and the AMS Hybrid 177 C:62 frame is the heart of it. Built from our C:62® carbon and featuring Bosch's BDU38YY motor mount for compatibility with both SX and CX motors, it features a built-in 600Wh PowerTube battery. We've tweaked the geometry and kinematics to suit a bike built to take on rowdy, technical trails at high speed. Mullet wheels and 170mm travel front and rear deliver epic handling, and an angle-adjustable headset means you can tweak the geometry to suit your own preference. Internal Cable Routing complements the frame's clean aesthetic and, of course, there's a UDH gear hanger and Direct Mount chain guard. Bring it on!
Technology
C:62 Carbon Fiber Technology
Not all carbon is created equal. With the C:62® carbon Cube has increased the high modulus fibre content, then they reinforced the resulting material with nanoparticles incorporated into the bonding resin. Which is all just a fancy way of saying it's extremely strong, light and durable.
Advanced Internal Cable Routing
Gear and brake cables need a way to get from handlebar controls to frame – but what if there was no need for holes near the head tube? Cube has come up with a design that takes cables into the frame via the headset, maintaining full internal cable routing but making it even neater and less obtrusive.
Fixed Integrated Battery
Bosch SX technology incorporates a new, lighter and more configurable battery setup. To make the most of the weight saving, we've integrated the new battery fully into the down tube. This means we can position it optimally for the best weight distribution and handling, as well as saving more weight by building a down tube that's precisely the right size to fit, and without the need for an access hatch. And the Power More option means you can add an additional 250Wh battery quickly and simply, for extra range. It's the best of both worlds.
Adjustabel headset angle
When you're harnessing gravity, the trail is challenging and every second counts, the geometry of your CUBE is a critical component. That's why our adjustable headset allows you to tweak head angle, so you can set your bike up just the way you like it. A little slacker for more stability, or a little steeper for better agility. The choice is yours...
Agile Ride Geometry
Agile Trail Geometry is a development of our popular and well received Agile Ride Geometry, with a focus on riders who enjoy pushing their limits on the trails. By lowering standover height and allowing more room for the rider to move around over the bike, we've created a setup that rewards adventurous line choices. Because, after all, it's all about having fun.
Universal Derailleur Hanger
One size fits all: Thanks to the innovative universal derailleur hanger, the derailleur hanger on your bike can be easily replaced. Cube has also designed it so that the derailleur hanger moves backward when the rear derailleur is hit hard, preventing chain jams. It also optimizes shifting and is compatible with all drivetrains. And best of all, as a standardized accessory, it is available everywhere.
Advanced Twin Mold
With the Advanced Twin Mold process we use two precisely manufactured forms for our C:62®, C:68® and C:68X® carbon frames. The first form is to ensure an accurate layup. The second, inner form keeps every individual fibre precisely where it needs to be while the frame cures. The result is a significantly lighter, stronger frame, with fibre density tailored to anticipated loadings at specific points.
- Manufacturer number: 105300
- Model Year: 2026
Ludwig-Hüttner-Str. 5-7
95679 Waldershof
Deutschland
https://www.cube.eu/kontakt
Configuration
| Frame: | C:62® Monocoque Advanced Twin Mold Technology, Efficient Trail Control, FSP 4-Link. Agile Trail Geometry, Boost 148, UDH™, Fully Integrated Battery, Advanced Internal Cable Routing |
|---|---|
| Frame material: | Carbon |
| Wheel size: | Mullet, Front: 29" / rear: 27.5" |
| Speeds: | 1 x 12 |
| Colour: | carbon´n´gold |

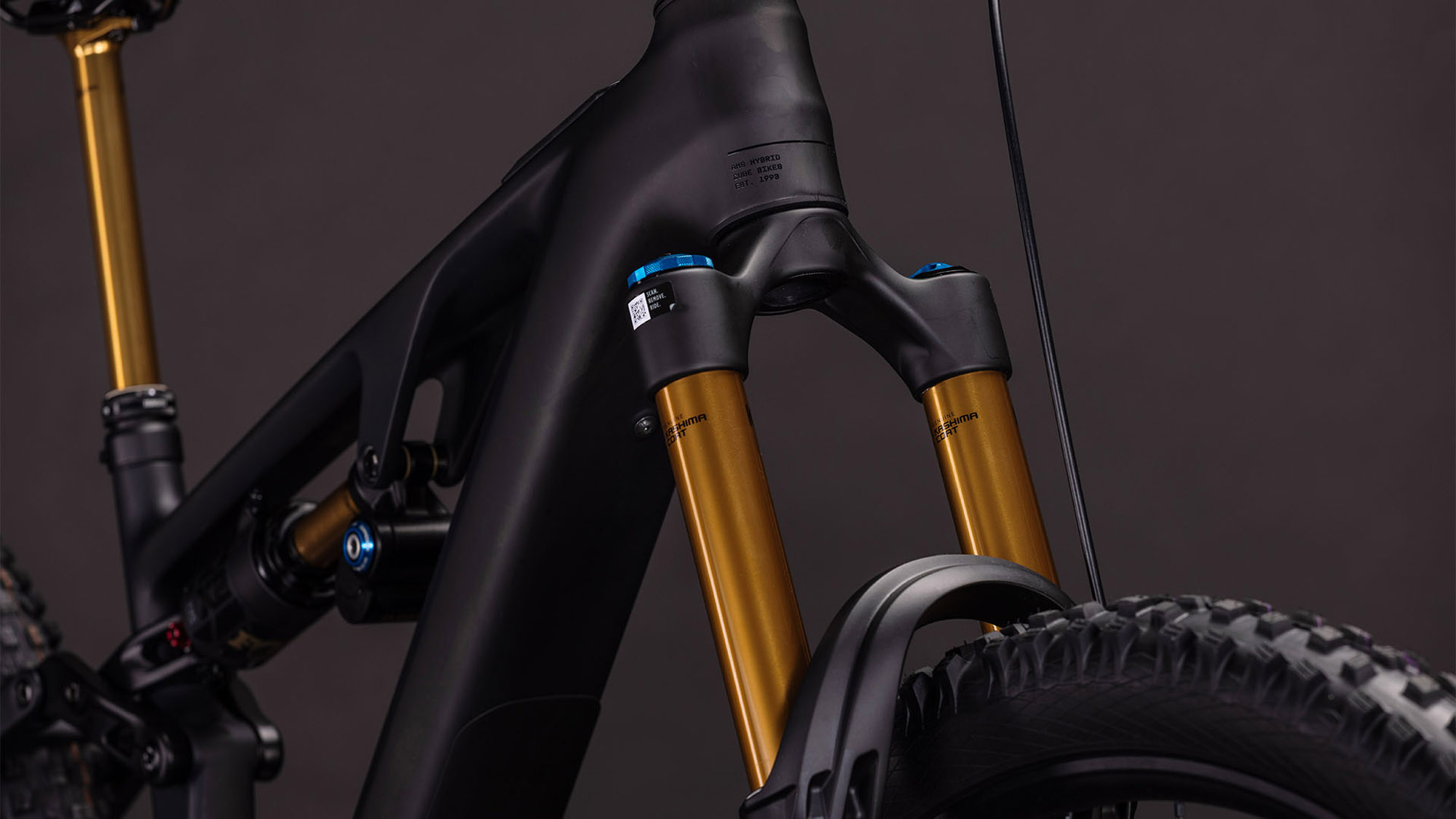

| Fork: | Fox 38 Float Factory GRIPX2, Tapered, 15x110mm, E-Bike Optimized, 170mm |

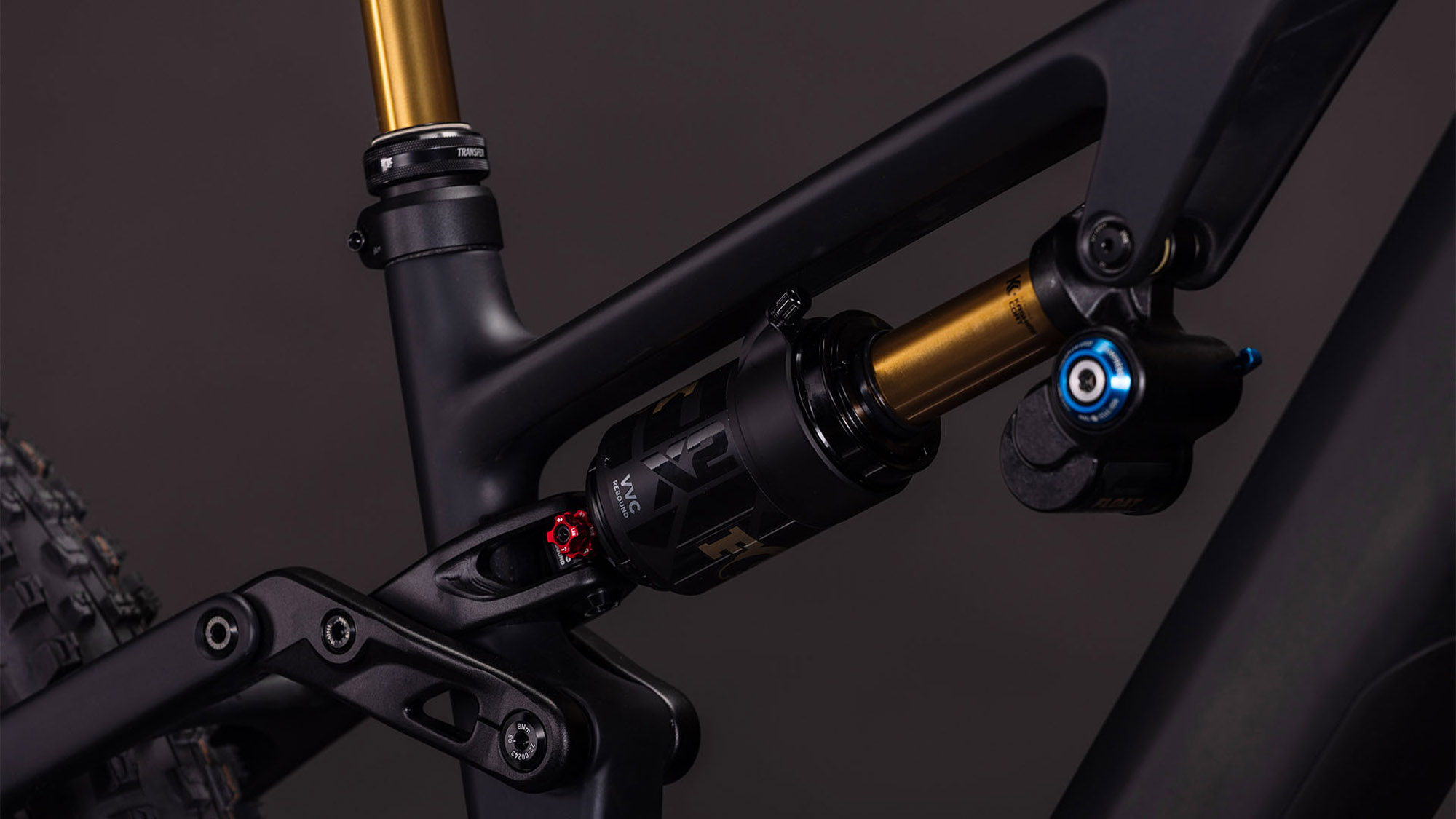

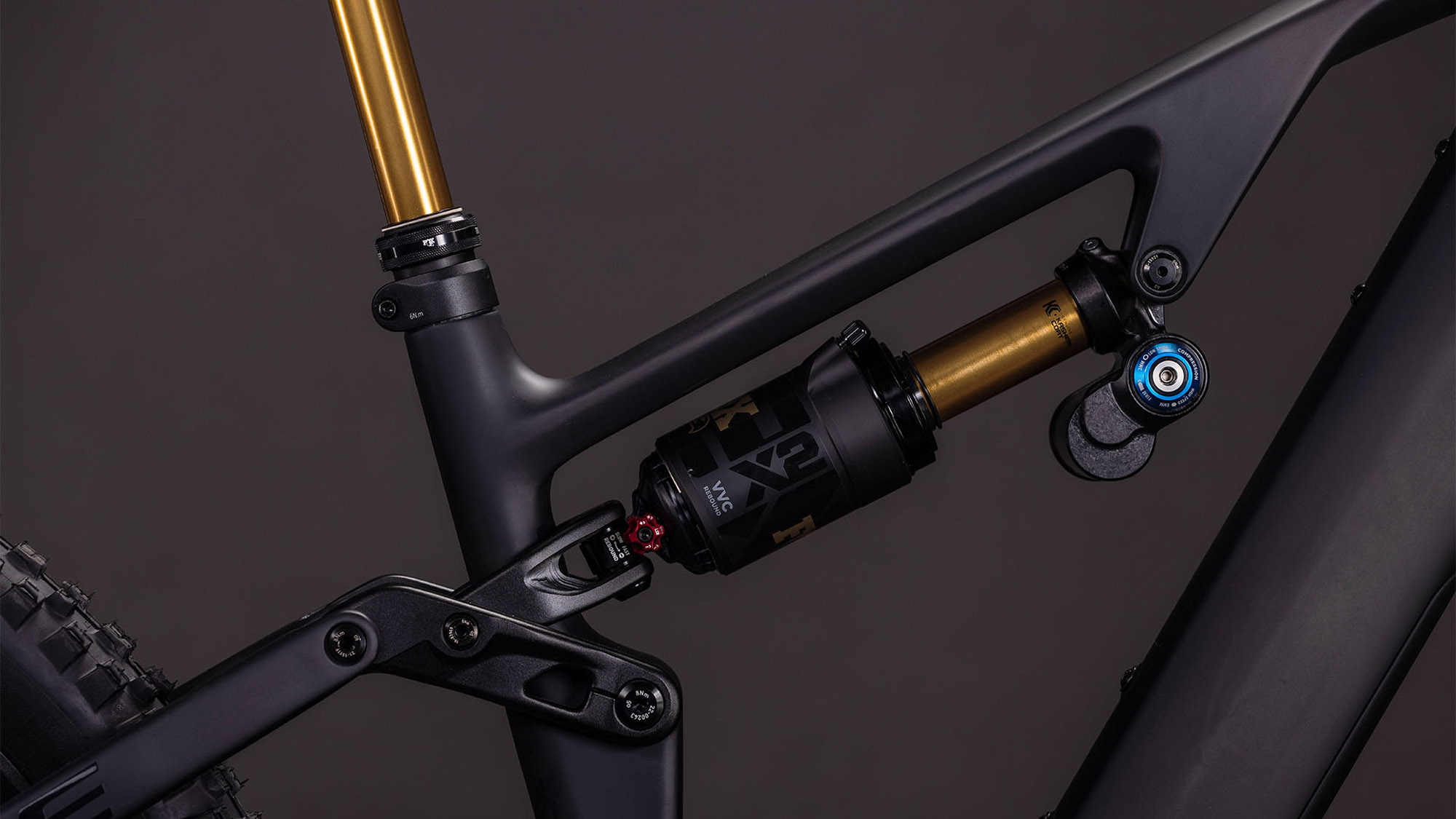

| Rear Shock: | Fox Float X2 Factory, 230x65mm, Adjustable HSC/LSC/HSR/LSR w/ 2-Pos. Lever |
| Travel: | 170 mm / 170 mm |
| Brakes: | Shimano XT BR-M8220, Hydr. Disc Brake (203/203) |
| Brake discs: | 203/203 mm |
| Headset: | ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment |
| Stem: | Race Face Turbine R 35 |
| Handlebar: | Race Face ERA 35 |
| Bar grips: | ACID Disrupt, Soft Compound |
| Saddle: | ACID Venec EMTB Trail 140 |
| Seatpost: | Fox Transfer Factory 31.6mm, Kashima Coated |

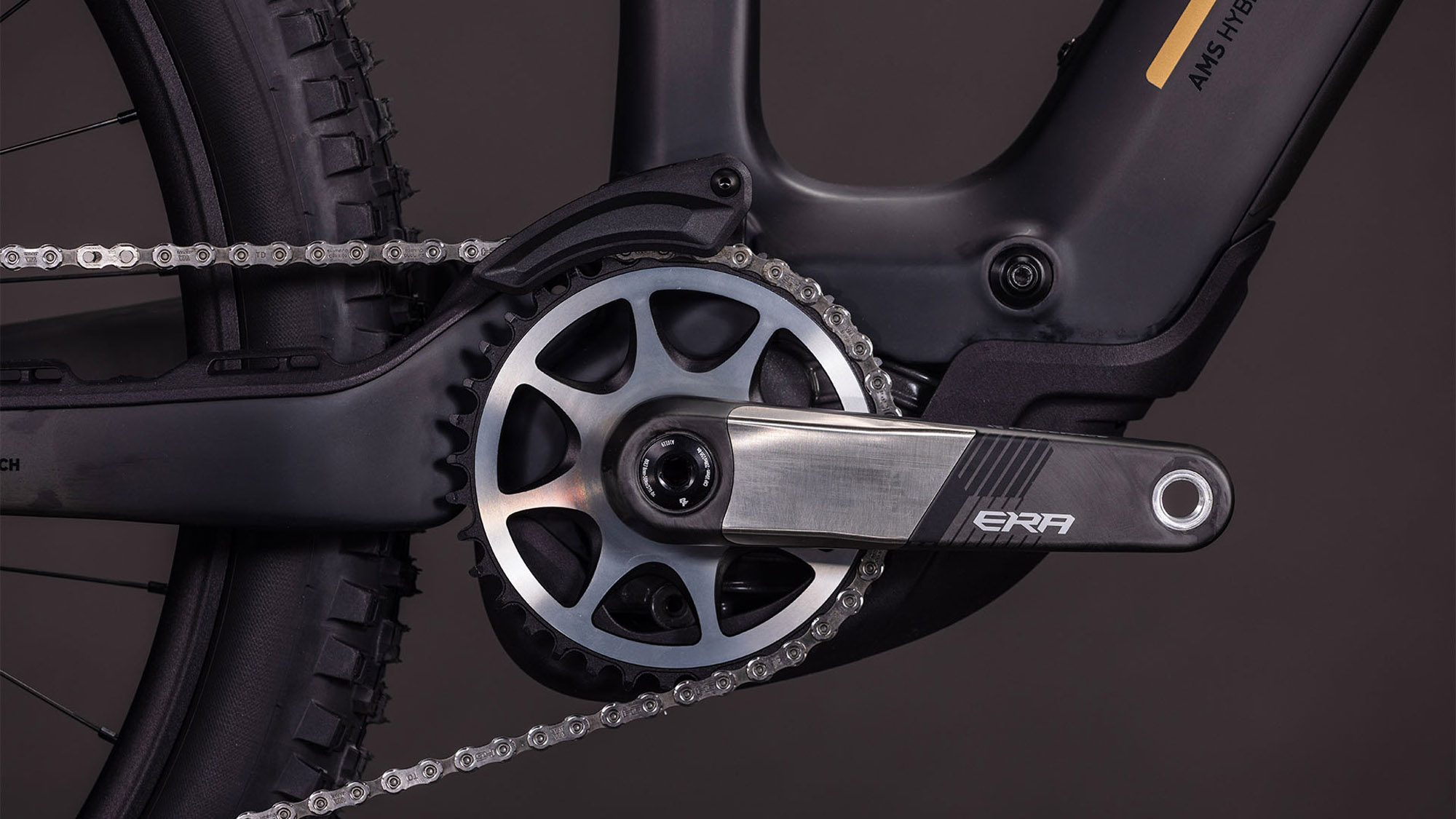

| Crankset: | Race Face ERA E-MTB, 36T |
| Rear derailleur: | Shimano XT Di2 RD-M8260-SGS, 12-Speed, Electronic Shifting System |
|---|---|
| Gear shifters: | Shimano XT Di2 SW-M8250-IR, Direct Attach |
| Chain guide: | Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate |
| Cassette: | Shimano XT CS-M8200, 10-51T |
| Chain: | Shimano XT CN-M8100 |
| Front tyre: | Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5" |
| Rear tyre: | Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5" |
| Wheelset: | Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready |
| Display: | Bosch Kiox 400C incl. Mini Remote |
| Battery: | Bosch PowerTube 600 |
| Charger: | Bosch 4A |
| Engine: | Bosch Drive Unit Performance Line CX Gen.5 max. 100Nm (BDU38) |
| Bearing dimension: | Front: 30x8mm, Rear: DU-Bushing 12.7mm |
| Pedals: | ACID PP MTB |
| Maximum total weight allowed: | 135 kg (body weight + bike + equipment) |
| Weight: | starting from 21,4 kg |
Bosch Performance Line CX Generation 5 - Smart System
The Performance Line CX (BDU384Y) takes riding dynamics and agility to a new level. It is powerful, light and quiet. Bosch's focus: the ultimate uphill flow.
The Performance Line CX (BDU384Y) offers you the perfect triad of performance and riding fun in relation to wear and tear and range with the performance values 85 Nm, 600 watts and 340 % support as standard - for a natural riding experience. New Available from mid-July 2025: Decide for yourself and increase the performance values of your drive unit: more power, higher torque, increased support factor.
- 100 Nm max. Max. torque
- 750 W Max. Motor power
- 400% Max. Support factor
- 2.8 kg motor weight (100g lighter than its predecessor)
The Performance Line CX reacts more sensitively to your input than ever before.
Bosch has reinterpreted and improved the signals from the sensors.
The cadence sensor measures how fast the cranks are turning.
The torque sensor measures how much force is exerted on the pedals.
Acceleration and position sensors detect how the e-bike is moving.
The Drive Unit does exactly what you want - sensitively, controlled and directly.
All options. Your choice
The higher torque ensures stronger acceleration. The increased maximum power makes best times possible. The increased support quadruples your own power.
eMTB+ mode
With the built-in "Dynamic Control", you ride with full control, even if you have increased your performance values. In steep, bumpy riding situations, you have superior propulsion and on loose or wet surfaces it is like traction control.
eMTB mode and Extended Boost
The eMTB mode reacts progressively to you and recognizes in a flash how much power you want based on your pedal pressure - dynamically, with maximum traction and always in control. With the integrated Extended Boost, all it takes is a targeted kick on the pedal and the Drive Unit pushes you effortlessly over steps and stones.
Push assist and hill start assist
With the push assist, you can easily push your eMTB, while the Drive Unit automatically adjusts the pushing speed to the incline and surface. In addition, the hill start assist enables a controlled and high-traction start, even on steep terrain. Hill Hold is active in both cases: your eMTB stays in place and does not roll back unexpectedly.
Bosch eBike ABS Pro
ABS Pro is ideal for professional eBikers: designed for fast, sporty downhill riding and braking. You can make full use of your braking skills and still feel how the system increases performance.
eShift with TRP
You can decide whether you want eShift with TRP to shift gears automatically for you or whether you want to change gears yourself on varied terrain with fast maneuvers - simply at the touch of a button. With eShift, gear changes are efficient and precise.
PowerMore 250
Compact and 1.5 kilograms in weight, the range extender can be easily attached to the water bottle holder. It can be combined with all batteries in the smart system. Please find out in advance whether you can use the range extender for your eBike.
Individual riding modes
Your trail, your riding experience, your mode: with the help of four parameters, you can easily adapt the riding modes to your needs using the slider in the eBike Flow app. Support, dynamics, maximum torque and maximum speed - you decide what you need.
Powder-coated. Robust right up to the tips
- The housing is made of magnesium - robust, corrosion-resistant and hard.
- The sealing concept prevents splash water from penetrating.
- Bosch has been able to reduce the noise generated by the gearbox.
- The Performance Line CX motor is quiet. It strikes a balance between power delivery and noise development
| Performance Line CX (BDU384Y)² | |
|---|---|
| eBike system | The smart system |
| Gear type | Derailleur gears, hub gears |
| Max. Support level (%) | 400 % |
| Max. possible drive torque | 100 Nm |
| Starting behavior | direct, powerful |
| Support up to max. | 25 km/h |
| Coaster brake | no |
| Push assist with hill hold | yes |
| Hill start assist with hill hold | yes |
| Shifter identification | Gear hub: no Derailleur gears: yes |
| Weight, approx. | 2.8 kg |
| Rated continuous power | 250 W |
| Maximum power | 750 W |
| Max. Power at a cadence of 70 rpm | 730 W |
| Max. weight-related power, approx. | 268 W/kg |
Bosch eBike Flow app
Extend the eBike
Use the eBike Flow app to download new functions and updates for components such as the battery or motor and send them to your eBike via Bluetooth. This keeps it up to date and gives you more options.
Record activities
Record your tour and fitness data as soon as you set off. For iPhone users, Activity Tracking also synchronizes all data automatically with Apple Health if desired. If you take a break, the recording stops automatically.
Individualize riding modes
Customize the riding mode exactly to your needs: You can fine-tune the Eco, Tour, Sport and Turbo riding modes so that they offer you more support or consume less power.
Keep an eye on everything
Get a quick overview of everything important on the home screen. Whether battery status, remaining range, distance already ridden or next service appointment - the home screen shows you everything you need to know with constantly updated eBike data.

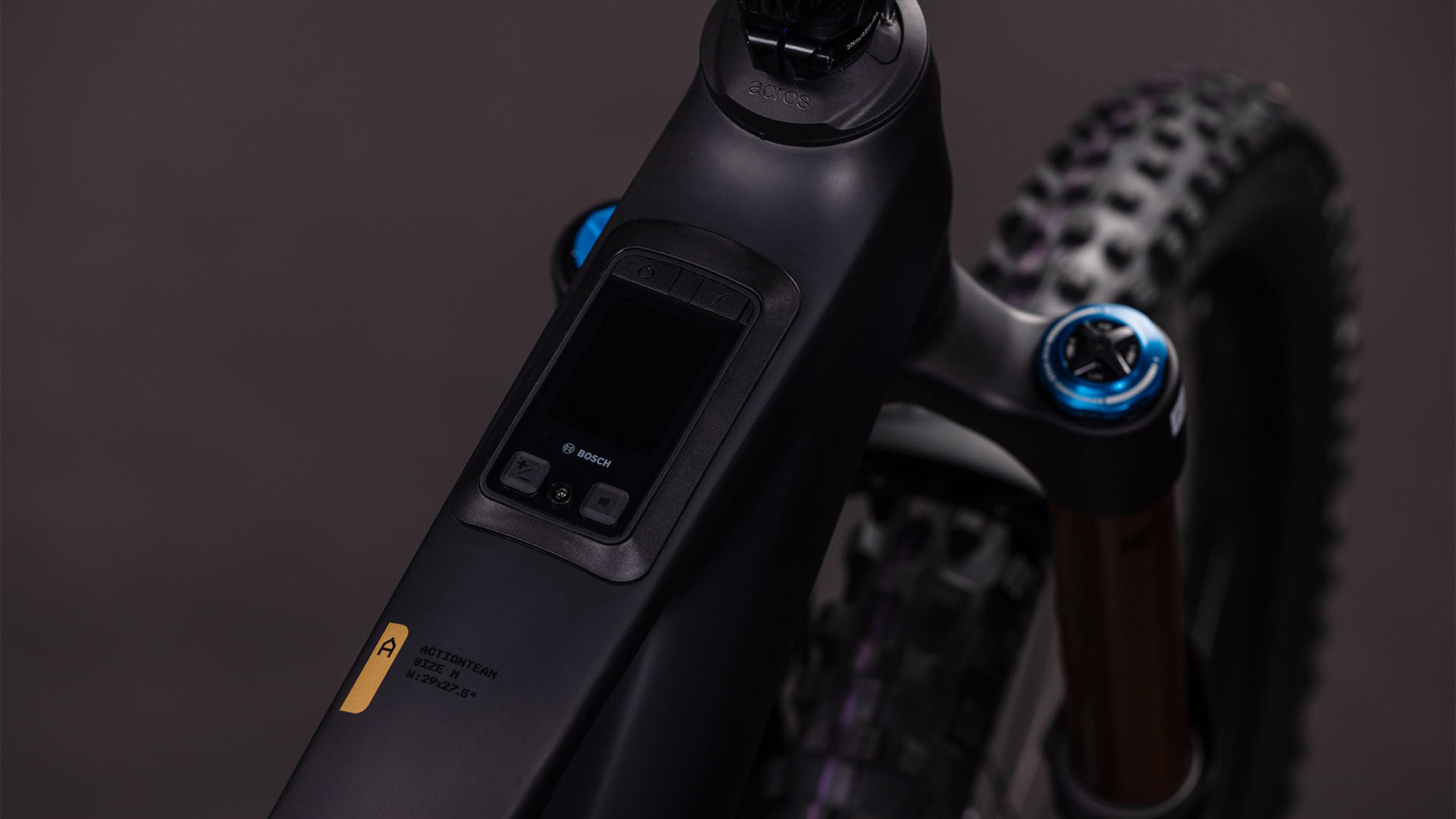

Bosch Kiox 400C (BRC3200) Display The smarte System
The Bosch Kiox 400C is the perfect display for the trail. Inconspicuously integrated into the frame and full of functions at the same time. It is firmly installed in the top tube and thus optimally protected from bumps and knocks, even on fast downhill rides.
Features - Bosch Kiox 400C (BRC3200)
- Color screen size: Diagonal approx. 2.0" / 5.1 cm
- Maximum typical brightness: 1,000 cd/m² with brightness control
- Power supply: eBike battery / internal battery
- Charging option for external devices via USB-C®
- Dynamic screen display without manual screen switching
- Warning tones for navigation
- Display configuration with 30 customization options via the eBike Flow app
- Expandable with Mini Remote for more convenient operation
Product features
- Size (H x W x D): 45 x 86 x 20 mm
- Display: 2.0 inch display (5.1 cm)
- Compatibility: Bosch The smart system
- Weight: 57 g
More details
Protected in the frameKiox 400C is inconspicuously integrated in the frame and securely installed in the top tube. It's therefore ideally protected from knocks and bumps, even on fast-paced downhill rides.
Dynamic screen
Kiox 400C always shows you exactly the information you need.
Charge devices with USB-C
Kiox 400C is inconspicuously integrated in the frame and securely installed in the top tube. It's therefore ideally protected from knocks and bumps, even on fast-paced downhill rides.
Brilliant display
Kiox 400C displays information in razor-sharp colour and with a brightness of 1,000 cd/m². Thanks to the sensor, the brightness adapts to the ambient light.
Notification tones to guide you
If you start navigation in the eBike Flow app, your Kiox 400C automatically takes over the route and guides you precisely with notification tones.
Make your display unique
Customise the screen layout of the Kiox 400C in the eBike Flow app to suit your preferences. With over 30 customisation options, you decide for yourself what you see on your display while riding.
Bosch Mini Remote
As an additional operating panel, the Mini Remote supplements the System Controller, extends the range of functions and enables safe operation. It is connected to the System Controller via Bluetooth and can be flexibly mounted on the handlebar. The buttons near the thumb keep the hands on the handlebar at all times. More keys offer more functions: with the Mini Remote you get practical features like the smart Push Assist and you can turn your eBike light on or off.
Quickly retrofittable
The Mini Remote can be quickly retrofitted and is connected to the System Controller via Bluetooth.
Three keys, more functions
The keys of the Mini Remote have dual assignments: riding mode, light function, smart Push Assist, and for controlling a display.
Full flexibility
The Mini Remote works with or without display. Operate the Ride screen of the eBike Flow app or your display screens.
Intuitive operation
Short distances for the thumb and grippy soft-touch surface: The buttons have icons and can be used intuitively.
Hardware Facts
- Supplement to the system controller for additional functions and convenient operation on the handlebar
- Control of the navigation or ride screen in the eBike Flow app (smartphone) or the Bosch display
- Smart Push Assist and innovative rollback protection (supports on steep, non-rideable inclines and can prevent the eBike from rolling backwards)
- Switch light on/off
- Optimal ergonomics of the buttons due to low profile design
- Wireless mounting on the handlebar
- Soft touch surface for extra good grip
- LED indicates low battery of the Mini Remote, pairing activity or lack of connection to the system
- Battery life (coin cell CR1620) can last up to approx. 2 years and can be easily replaced by removing it from the handlebar and inserting it into the rubber insert
- IP54 protected against dust and splash water
- Temperature range: -5 °C to +40 °C (operation) and +10 °C to +40 °C (storage)
- Bluetooth connectivity (Bluetooth 5.0 Low Energy)
Bosch PowerTube 600 / 800
Maximum range
With the PowerTube 600 / 800, long distances and many meters of altitude are easy to master.
Stylish eBike design
Like all Bosch PowerTubes, the PowerTube 600 / 800 is perfectly integrated into the frame. An attractive eBike design and high capacity - a combination without compromise. A new, lighter housing has been used for the battery. Provided the eBike manufacturer has prepared the eBike for this, it can be easily replaced - for more or less range.
Reliable energy supplier
High safety standards. Enormous mileage, long service life, reliable handling - the lithium-ion battery is equipped with a battery management system that protects the battery cells from overload.
User-friendly handling
The PowerTube 600 / 800 is characterized by particularly easy handling. The battery is always securely anchored in the frame on all tours, removal is via an intuitive, lockable mechanism and offers you user-friendly operation.
Comparison table
| PowerTube | 600 | 800 |
|---|---|---|
| System | The smart system | The smart system |
| Mounting type | In the frame | In the frame: Horizontal / Vertical |
| Voltage | 36 V | 36 V |
| Battery capacity | 16.7 Ah | 22.2 Ah |
| Energy content | approx. 600 Wh | approx. 800 Wh |
| Weight, Frame battery / Rack battery |
approx. 3.0 kg | approx. 3.9 kg |
|
Size, horizontal / vertical |
424 x 71 x 67 mm | 424 x 77 x 71 mm / 430 x 71 x 77 mm |
| Compatible with DualBattery of the smart system | yes | yes |
| 4A Charger | 50 % charge: approx. 2.0 hours 100 % charge: approx. 5.3 hours |
50 % charge: approx. 2.6 hours 100 % charge: approx. 6.9 hours |
| 2A Charger | 50 % charge: approx. 4.2 hours 100 % charge: approx. 9.1 hours |
50 % charge: approx. 5.7 hours 100 % charge: approx. 12.4 hours |
Bosch eBike ABS
Brakes your bike, not your flow.
With Bosch eBike ABS, you can use the front brake more safely and confidently. It can prevent the front wheel from locking up, help to avoid a possible skid or prevent you from going over the handlebar – even if you suddenly brake hard on firm asphalt or slippery gravel paths. Bosch eBike ABS has different ABS modes because every eBike is different and is used differently.
Bosch eBike ABS explanatory video
At a glance
Anti-lock braking function
Sensors measure wheel speed and regulate brake pressure – for efficient braking.
Effective accident prevention
If all eBikes were equipped with ABS, up to 29% of all accidents involving eBikes could be prevented every year.
Call up the braking statistics
you can call up information about your braking behavior via the Kiox 300 display. If the front brake is used, the braking distance and braking time are recorded and can be displayed; this gives you a feel for how a different surface affects your braking distance - for example, compare the braking distance on gravel or asphalt. Analyze your braking and improve your braking performance.
Different ABS modesThe
The ABS modes are matched to the eBike type: ABS Cargo, ABS Touring, ABS Allroad, ABS Trail.
Improve braking behaviorYour
Your connected display and the eBike Flow app show you your braking statistics.
Geometry
To submit a rating, please log in. We do not check whether the rated item was purchased from us.
Last viewed
