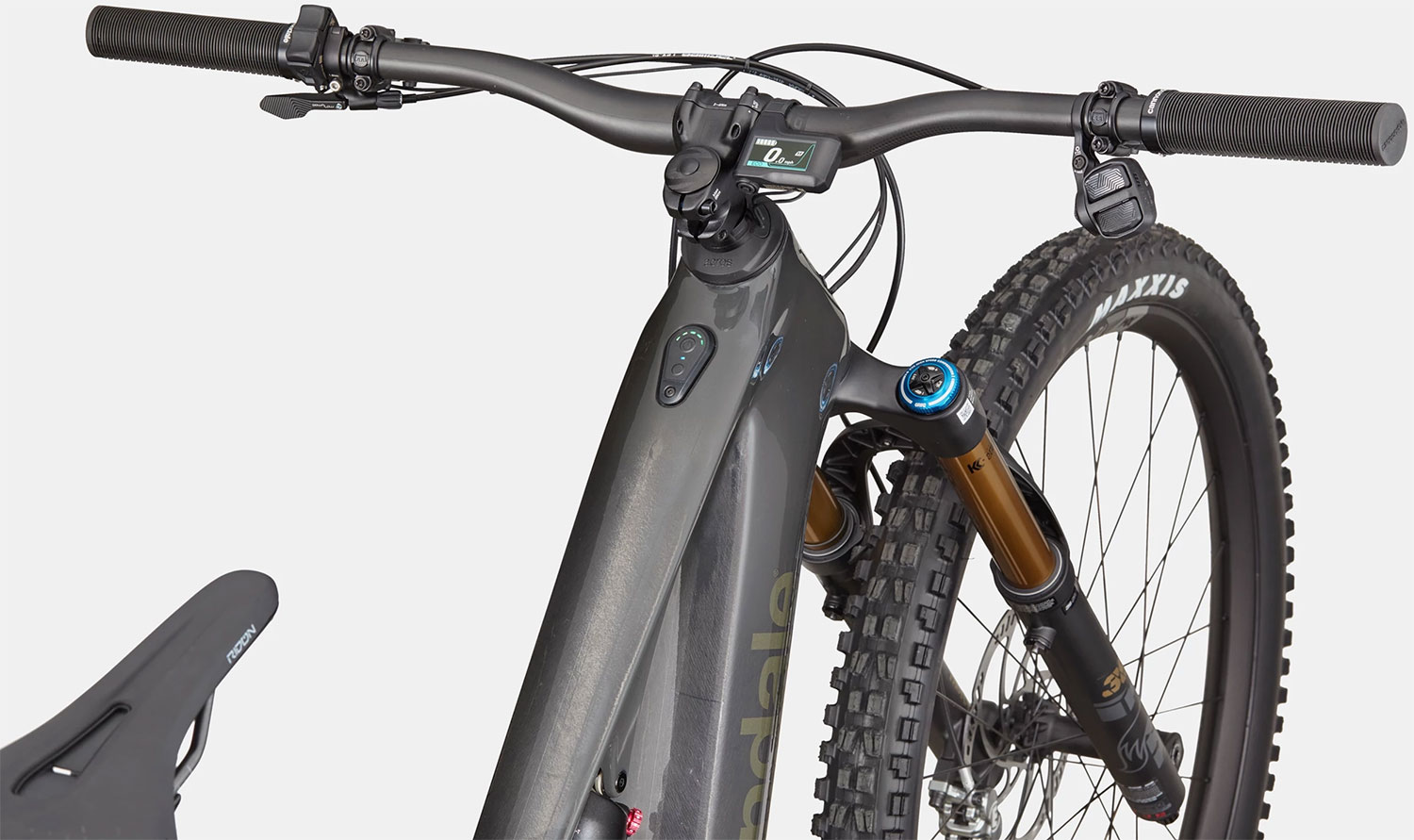

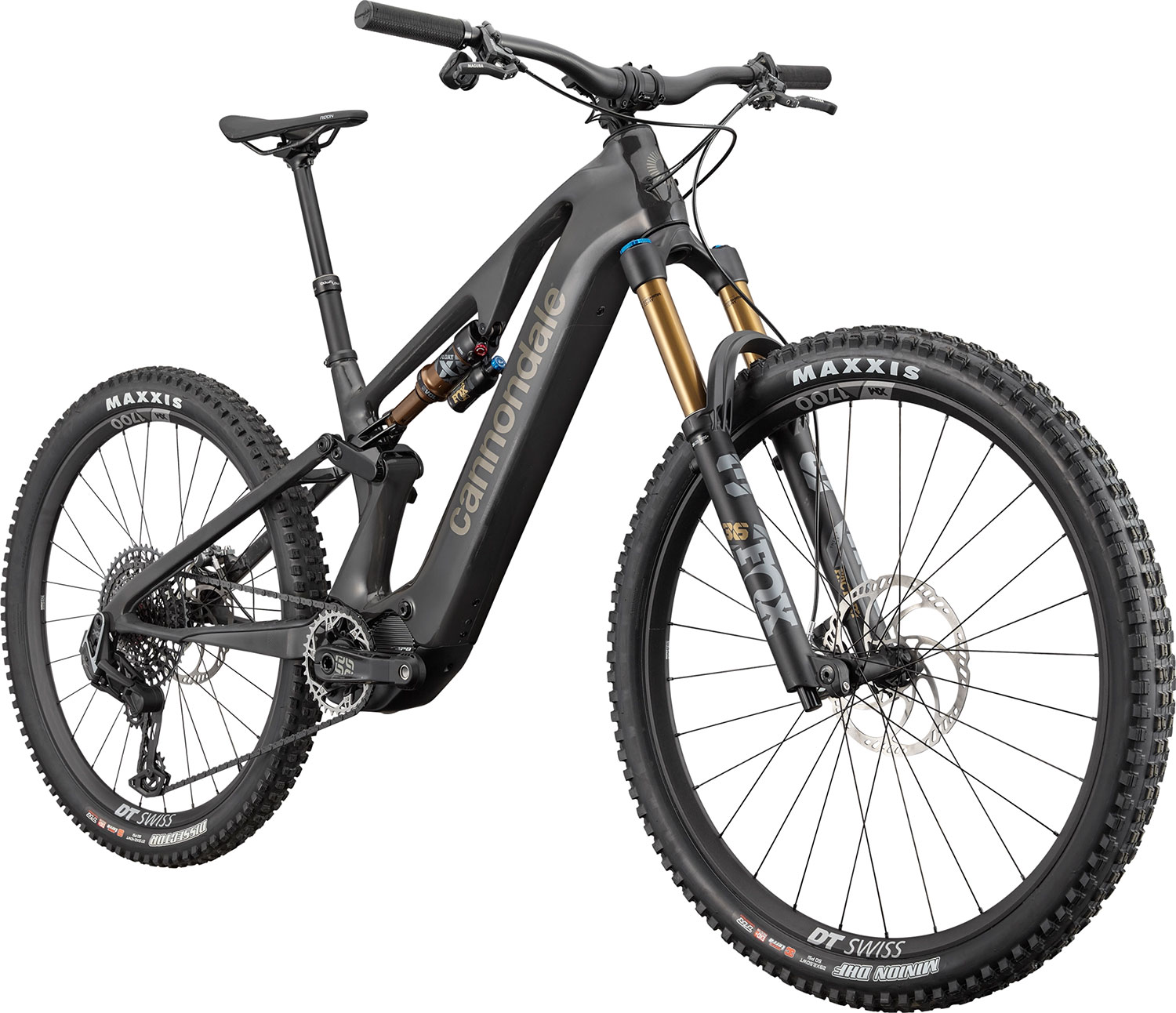

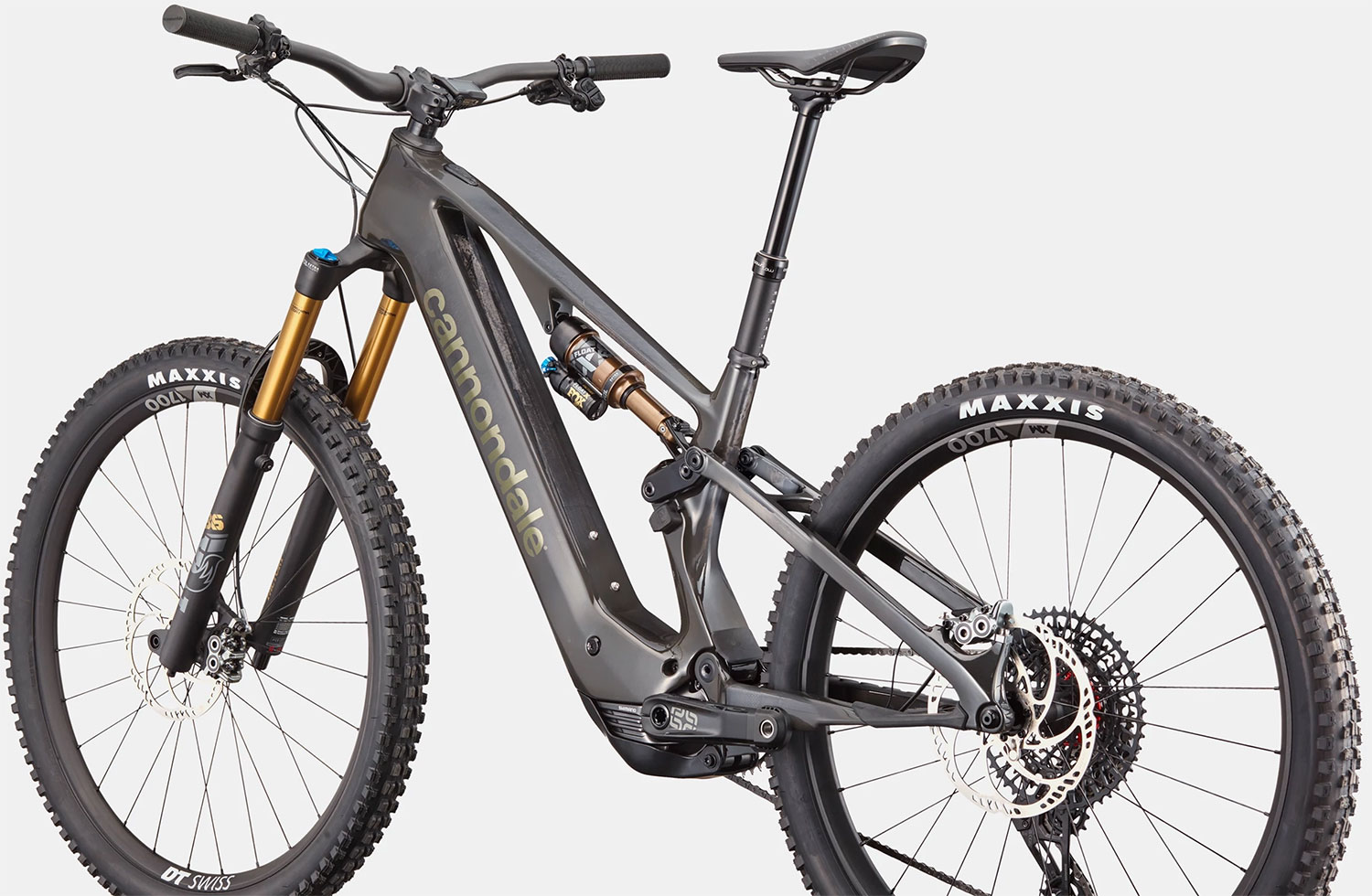

Cannondale Moterra SL 1 Raw
Product information "Moterra SL 1 Raw"
The Cannondale Moterra SL 1 offers the perfect balance and the best of both worlds. Plenty of power and long ride times, combined with playful agility, first-class handling and a low weight, thanks to its full-carbon frame. In short, this is the bike many have been waiting for. It might even be the most fun mountain bike Cannondale has ever developed.
This e-mountain bike combines the power of the Shimano EP 801 motor and the 601Wh battery with nimble agility. Fitted with our lightest e-MTB suspension, a Fox Factory fork and a Fox Factory rear shock, DT Swiss XM 1700 wheels, SRAM’s X0 T-Type drivetrain and the superior braking power of Magura MT7 disc brakes.
Features – Cannondale Moterra SL 1
- Full-carbon FlexPivot frame with 150 mm travel, Proportional Response suspension kinematics and geometry
- High-quality Fox Factory suspension components – Factory Float 36 160 mm suspension fork & Factory Float X shock
- Lightweight and robust DT Swiss XM 1700 Spline, tubeless-ready all-mountain wheelset
- SRAM’s second-most powerful e-MTB groupset – wireless XO AXS 12-speed drivetrain, plus e*thirteen Race Carbon crankset & Magura MT7 disc brakes
- DownLow Vario seatpost & Hollowgram SAVE vibration-damping carbon handlebars from Cannondale
- Cannondale-tuned Shimano EP801 motor & specially developed, integrated 601Wh battery
Highlights
FlexPivot
We developed these flexing carbon frame elements several years ago, and they’re simply a stroke of genius in frame design. They reduce weight, minimise maintenance and enable a sophisticated four-bar suspension design that improves your traction and control on the trail.
Tailored just for you
Thanks to our Proportional Response Design, everything – from the suspension kinematics and geometry right through to the length of the chainstays – is optimally tailored to each frame size. Tailored for performance.
Geometry adjustment
Thanks to the flip chip, you can ride the Moterra SL in the standard mullet setup (29” front wheel and 27.5” rear wheel) or as a pure 29er setup without altering the bike’s geometry or handling characteristics. The Mullet setup results in a slightly more playful ride, whilst a pure 29er setup offers a smoother ride.
Adjustable head angle
The steering angle can be adjusted by 1.2 degrees using the adjustable headset cups. Set it flatter for greater stability at high speeds, or steeper for greater agility on technical terrain.
Shimano EP801 drive unit
Shimano’s best e-MTB system: lightweight, reliable and powerful. 85 Nm of torque and over 600+ W of maximum power, paired with specially tuned riding modes for brilliant riding fun.
Specially tuned riding modes
In addition to ‘ECO’ mode (minimum assistance, maximum range for all-day rides), there are two ‘TRAIL’ modes (the first TRAIL mode offers medium power, ideal for rides with friends on lightweight e-bikes. The second TRAIL mode increases the assistance so you can keep up with e-bikes running at full power). In addition, there is the familiar “BOOST” mode (full power) as the fourth option. The choice is yours.
Specially developed 601Wh battery
By using special battery cells that store more energy per kilo than ever before, we’ve been able to develop an astonishingly compact battery that weighs just 3.1 kg (including the cable harness!) whilst delivering a whopping 601 watt-hours. Full power with less weight.
Perfectly routed
For a clean look and better protection of the cables and wires, you can route them directly through the headset or, alternatively, feed them through the openings in the frame for easy fitting and maintenance.
Well protected
Like a helmet for your motor, an integrated bashguard protects it on the trail from stone chips or hard contact with the ground. You might not use it very often, but when you do, you’ll definitely be glad you have it.
Please note that pedals are not included!
Recommended frame sizes
| Frame size | Height |
|---|---|
| SM | 155 cm – 165 cm |
| MD | 163 cm – 175 cm |
| LG | 173 cm – 185 cm |
| XL | 183 cm – 196 cm |
FIRST LOOK: Moterra SL | Cannondale Essentials
- Manufacturer number: C65104U10SM
- Model Year: 2024
Cannondale Moterra SL 1 Raw
The Cannondale Moterra SL 1 offers the perfect balance and the best of both worlds. Plenty of power and long ride times, combined with playful agility, first-class handling and a low weight, thanks to its full-carbon frame. In short, this is the bike many have been waiting for. It might even be the most fun mountain bike Cannondale has ever developed.
This e-mountain bike combines the power of the Shimano EP 801 motor and the 601Wh battery with nimble agility. Fitted with our lightest e-MTB suspension, a Fox Factory fork and a Fox Factory rear shock, DT Swiss XM 1700 wheels, SRAM’s X0 T-Type drivetrain and the superior braking power of Magura MT7 disc brakes.
Features – Cannondale Moterra SL 1
- Full-carbon FlexPivot frame with 150 mm travel, Proportional Response suspension kinematics and geometry
- High-quality Fox Factory suspension components – Factory Float 36 160 mm suspension fork & Factory Float X shock
- Lightweight and robust DT Swiss XM 1700 Spline, tubeless-ready all-mountain wheelset
- SRAM’s second-most powerful e-MTB groupset – wireless XO AXS 12-speed drivetrain, plus e*thirteen Race Carbon crankset & Magura MT7 disc brakes
- DownLow Vario seatpost & Hollowgram SAVE vibration-damping carbon handlebars from Cannondale
- Cannondale-tuned Shimano EP801 motor & specially developed, integrated 601Wh battery
Highlights
FlexPivot
We developed these flexing carbon frame elements several years ago, and they’re simply a stroke of genius in frame design. They reduce weight, minimise maintenance and enable a sophisticated four-bar suspension design that improves your traction and control on the trail.
Tailored just for you
Thanks to our Proportional Response Design, everything – from the suspension kinematics and geometry right through to the length of the chainstays – is optimally tailored to each frame size. Tailored for performance.
Geometry adjustment
Thanks to the flip chip, you can ride the Moterra SL in the standard mullet setup (29” front wheel and 27.5” rear wheel) or as a pure 29er setup without altering the bike’s geometry or handling characteristics. The Mullet setup results in a slightly more playful ride, whilst a pure 29er setup offers a smoother ride.
Adjustable head angle
The steering angle can be adjusted by 1.2 degrees using the adjustable headset cups. Set it flatter for greater stability at high speeds, or steeper for greater agility on technical terrain.
Shimano EP801 drive unit
Shimano’s best e-MTB system: lightweight, reliable and powerful. 85 Nm of torque and over 600+ W of maximum power, paired with specially tuned riding modes for brilliant riding fun.
Specially tuned riding modes
In addition to ‘ECO’ mode (minimum assistance, maximum range for all-day rides), there are two ‘TRAIL’ modes (the first TRAIL mode offers medium power, ideal for rides with friends on lightweight e-bikes. The second TRAIL mode increases the assistance so you can keep up with e-bikes running at full power). In addition, there is the familiar “BOOST” mode (full power) as the fourth option. The choice is yours.
Specially developed 601Wh battery
By using special battery cells that store more energy per kilo than ever before, we’ve been able to develop an astonishingly compact battery that weighs just 3.1 kg (including the cable harness!) whilst delivering a whopping 601 watt-hours. Full power with less weight.
Perfectly routed
For a clean look and better protection of the cables and wires, you can route them directly through the headset or, alternatively, feed them through the openings in the frame for easy fitting and maintenance.
Well protected
Like a helmet for your motor, an integrated bashguard protects it on the trail from stone chips or hard contact with the ground. You might not use it very often, but when you do, you’ll definitely be glad you have it.
Please note that pedals are not included!
Recommended frame sizes
| Frame size | Height |
|---|---|
| SM | 155 cm – 165 cm |
| MD | 163 cm – 175 cm |
| LG | 173 cm – 185 cm |
| XL | 183 cm – 196 cm |
FIRST LOOK: Moterra SL | Cannondale Essentials
- Manufacturer number: C65104U10SM
- Model Year: 2024
Configuration
| Frame: | Moterra SL Carbon, 150mm travel, Proportional Response Tuned Suspension, FlexPivot Chainstay, direct mount internal battery, 55mm chainline, internal cable routing, 29” FlipChip, 148x12mm Maxle thru-axle, UDH hanger |
|---|---|
| Frame material: | Carbon |
| Wheel size: | Mullet (27.5"/29") |
| Speeds: | 1 × 12 |
| Colour: | Raw |
| Fork: | Fox Float Factory 36, 160mm travel, Grip2, Kashima coating, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset |

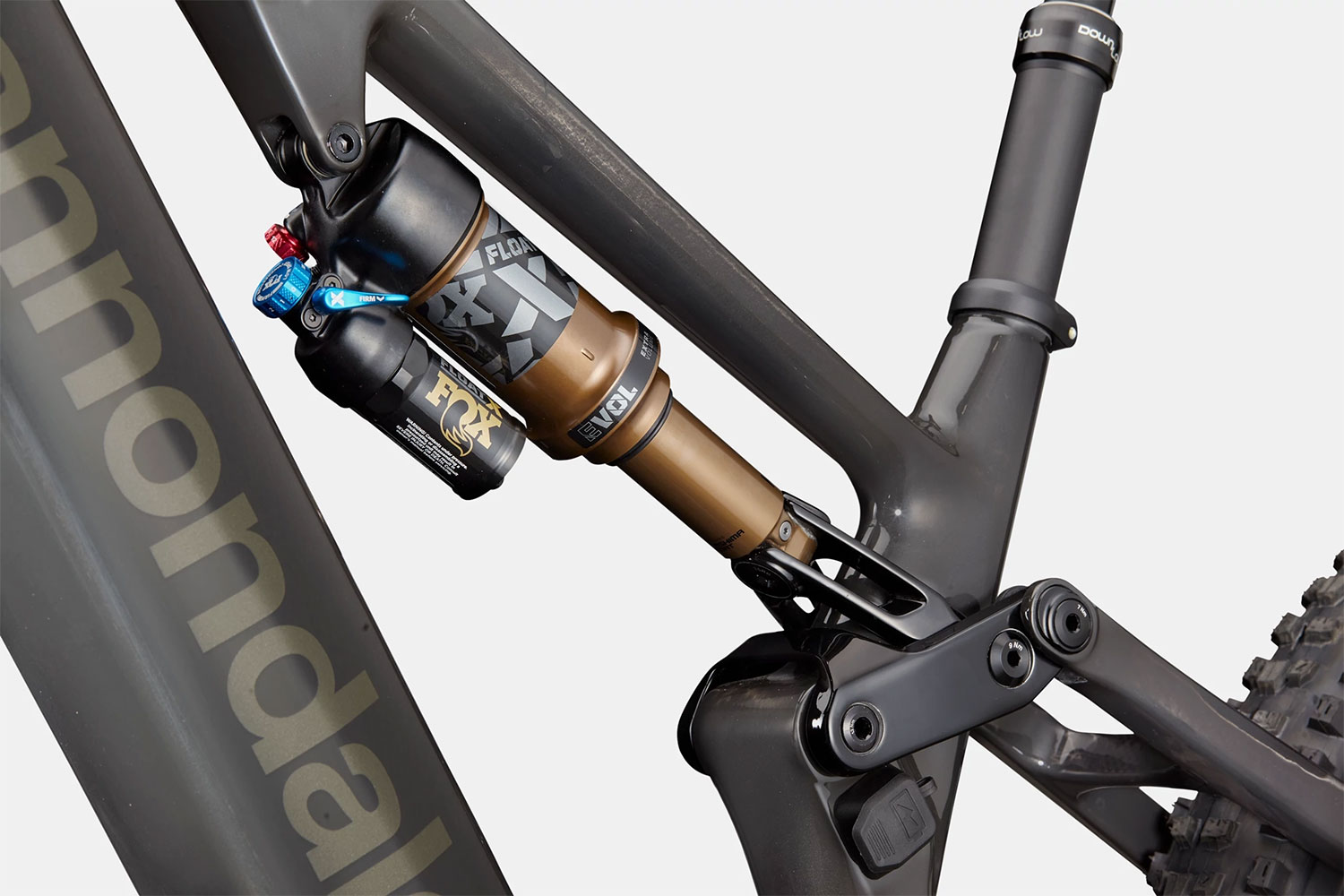

| Rear Shock: | Fox Float X Factory, 2 pos adj, EVOL LV, 210x55mm |
| Travel: | 160mm/150mm |
| Brakes: | Magura MT7 4-piston hydraulic disc |
| Brake discs: | Storm HC 203mm, 6-bolt rotors |
| Brake levers: | Magura MT7 HCW hydraulic disc |
| Headset: | Acros Adjustable Angle (1.2°) |
| Stem: | Cannondale 1, 7075 Alloy, 1-1/8", 35mm, 0° |
| Handlebar: | HollowGram SAVE riser bar, Carbon, 35mm clamp, 30mm rise, 8° sweep, 5° rise, 780mm |
| Bar grips: | Cannondale TaperRidge |
| Saddle: | Fizik Terra Ridon X3, 145mm, Wingflex, K:ium Mobius rail 7x7mm |
| Seatpost: | Cannondale DownLow Dropper, internal routing, 31.6, 150mm (S), 170mm (M-XL) |

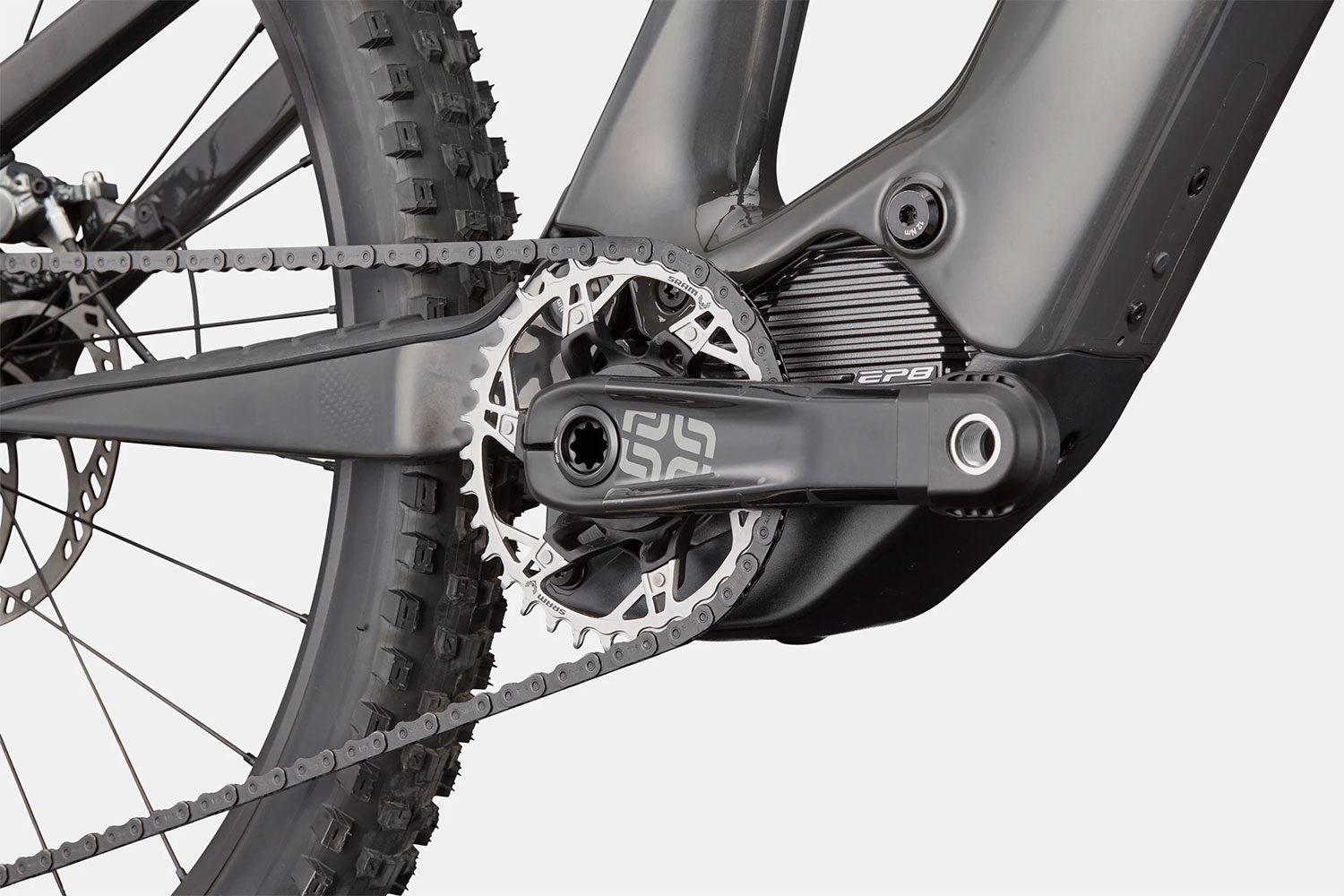

| Crankset: | e*thirteen e*spec Race Carbon - Gen 4, 165mm, 34T |
|---|---|
| Rear derailleur: | SRAM XO Eagle AXS, T-Type |
| Gear shifters: | SRAM AXS T-Type Pod Controller |
| Cassette: | SRAM XO Eagle, 10-52T, T-Type |
| Chain: | SRAM XO Eagle, T-Type, Flattop |
| Front tyre: | Maxxis DHF, 29x2.5 ", 3C, EXO+, tubeless ready |
| Rear tyre: | Maxxis Dissector , 27.5x2.4", 3C, EXO+, tubeless ready |
| Front hub: | DT Swiss 350, 15x110mm, thru axle |
| Rear hub: | DT Swiss 350 Ratchet System 36 SL, 12x148mm |
| Spokes : | DT Swiss Competition, straight pull |
| Rims: | DT Swiss XM 1700 Spline, 30mm inner width, TC tubeless ready |
| Display: | Shimano SC-EM800 Cycle Computer, Bluetooth LE Compatible |
| Battery: | Custom 601Wh battery |
| Charger: | Bosch 2A |
| Engine: | Shimano EP801, 85Nm, Custom Tuned, Eco, Trail 1, Trail 2, Boost Modes |
| Pedals: | not included in the scope of delivery |
| Other details: | Tubeless valves, SRAM XO charger |
SHIMANO EP8 – The right power at the right time
What are the benefits of a SHIMANO e-MTB?
Available across a wide range of brands and models
Countless options help you find the perfect e-MTB that best suits your riding style and preferences
Technology tried and tested on the trails
E-MTB systems are based on 40 years of research and set the undisputed benchmark in the mountain bike industry
Designed as a complete system
Unique performance thanks to seamless integration with other SHIMANO components
Discover Shimano’s EP8 series
Shimano’s flagship model. The lightweight and smarter EP8 e-MTB system delivers controllable peak performance for a natural riding experience on the trails. A wide range of brands and models are already equipped with the versatile and powerful SHIMANO EP8 e-bike system. Click on a component to find out more.
SHIMANO EP8 (EP801) motor
The EP8 (EP801) is a smarter drive unit that delivers superbly controllable high power with a maximum torque of 85 Nm across a wider cadence range than ever before. The result is smooth power delivery and optimised control for a natural riding experience on the trail.
- 85 Nm maximum torque across a wider cadence range
- Smooth and intuitive for a natural riding experience
- Compact and lightweight at just 2.7 kg
- Offers connectivity via CAN and ACC ports
- Low noise levels for a relaxed ride on the trails
- Improved thermal management prevents power loss on long climbs
- Comprehensive configuration options via the FINE TUNE mode in the E-TUBE PROJECT Cyclist app
- Assist modes: Walk, Eco, Trail and Boost
Everything you need to know about the EP Series | SHIMANO
SHIMANO SC-EM800 Display
Shimano has developed a range of displays designed to optimise the riding experience across a wide variety of scenarios.
SC-EM800
- Compact size for a secure fit on the handlebars
- Colour display that’s easy to read even in bright sunlight
Switch for assistance mode
The large contact surfaces allow for intuitive operation even on rough trails – with or without gloves. Concave-shaped switches make it easy to switch between Eco, Trail and Boost modes.
- A tidy cockpit thanks to the compact design
- Ergonomic, intuitive design
- Push-assist function activated at the touch of a button
- Robust construction for off-road use
- Easy to operate with or without gloves
Trail mode
Trail Mode utilises the full 85 Nm of the EP8 drive to support the rider comfortably, safely and reliably through challenging sections. This extremely versatile assistance mode is optimally calibrated as standard and requires no further adjustment. This allows you to concentrate fully on tackling the toughest trails. The harder you pedal, the more assistance is available to you. This means you’re supported by the drive unit at exactly the right moment and always have optimum traction and control. Whether it’s loose sand or steep mountain climbs, the drive unit always adapts quickly and automatically so you can concentrate fully on the terrain.
