Campagnolo Shamal Dual Profile DB 2WF C23 Wheelset

The Campagnolo Shamal Dual Profile wheelset: innovation and performance in perfection

The heart of the Shamal Dual Profile is its revolutionary design. A modular rim profile optimized in the wind tunnel in combination with differentiated hub flanges enables the use of shorter spokes. This results in increased overall stiffness while maintaining riding comfort. The use of carbon fibres with a C-LUX finish guarantees optimum riding characteristics in all conditions, even when using wide tires for gravel use.

A special feature of the Shamal Dual Profile is the 2-way fit system. It offers riders the flexibility to choose between classic clincher tires and tubeless tires. The drill-less upper rim bridge makes the use of sealing tape superfluous and considerably simplifies the fitting of tubeless tires.

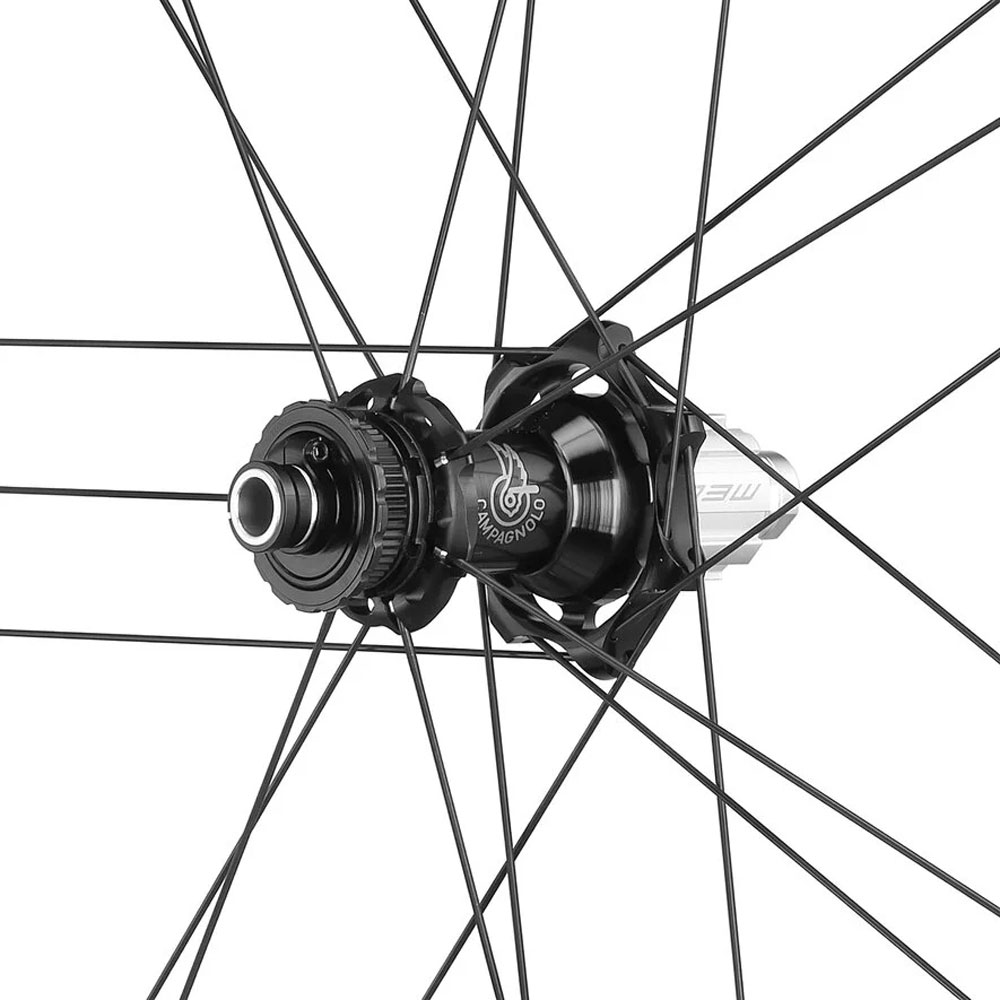

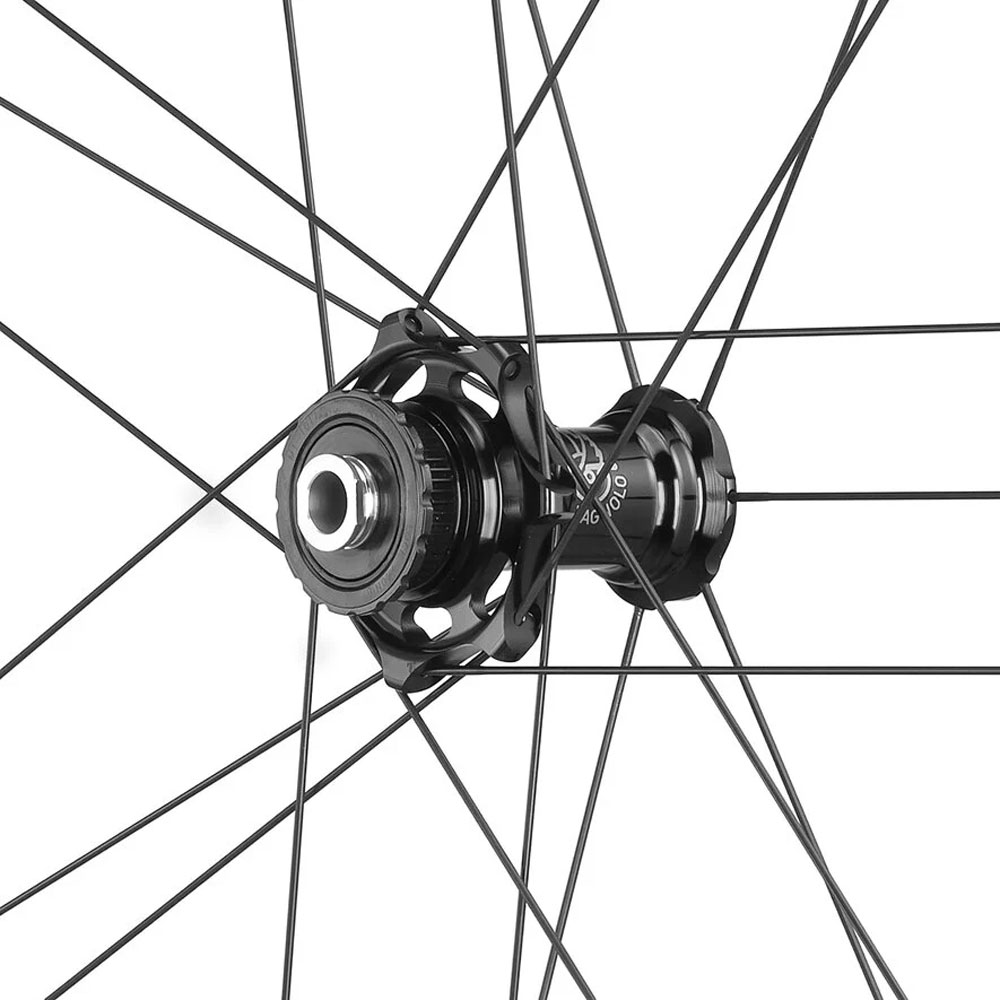

Campagnolo's patented G3 spoking ensures perfect tension balance and optimum stiffness, which guarantees efficient power transfer from the pedal to the road. Aluminum hubs with plain and tapered bearing system contribute to smooth running and allow for easy maintenance.

Weighing just 1,480 grams, the Shamal Dual Profile is more than 100 grams lighter than its predecessor. This makes it the ideal choice for cyclists looking for a versatile, high-performance wheel that excels in a variety of scenarios.

The Shamal Dual Profile combines state-of-the-art technologies with the know-how from high-end models, setting new standards in terms of performance, comfort and versatility in cycling.

Features - Campagnolo Shamal Dual Profile wheelset

• Optimized handling: The innovative "Dual Profile" carbon rim with unidirectional finish improves control at all speeds while offering comfort and optimal performance in various conditions. The C23 rim is ideal for tires from 28 mm, making this wheel a versatile all-round solution for road use.
• Increased responsiveness: The newly developed monolithic hub design in combination with the proven G3 geometry ensures optimally balanced tension, increased stiffness and improved power transmission.
• Durable construction: These wheels are characterized by high durability and easy maintenance. Since their introduction in 1992, they have been continuously developed to reach new levels of performance.
• Powerful and comfortable: These high-performance wheels offer both comfort on long distances and reliable performance in a variety of terrain and wind conditions.
• Unsurpassed versatility: The revised modular profile combined with differentiated hub flanges ensures high overall stiffness without compromising ride comfort. The design with unidirectional fiber arrangement and C-LUX finish ensures optimal riding characteristics in all conditions.

Product features

• Application: Road bike / Gravel bike
• Model: Shamal Carbon Dual Profile
• Rim type: Clincher
• Tubeless ready: ✔ (2-Way Fit)
• Wheel size: 28"
• Rim size: 622x23C
• Rim width: C23 / HOOK
• Rim height: 45 mm / 40 mm
• Brake system: Disc brake
• Mounting: AFS (Axial Fixing System by Fulcrum), compatible with Center Lock
• Axle system: thru axle
  • Front: 12 x 100 mm front
  • Rear: 12 x 142 mm rear
• Bearing: Cone bearing shell system
• Spokes:
  • Front wheel: 21 elliptical aero spokes
  • Rear wheel: 21 elliptical aero spokes
• Recommended tire width: from 28 mm

Freehub body (select variant)

• Shimano (HG11)
• Sram (XDR 12)
• Campagnolo N3W (11-13)

Material

• Rims: Carbon
• Hub shell: Aluminum
• Spokes: Stainless steel
• Nipples: Aluminum

Color

• Black / Dark Label

Weight

• 1480 g pair (manufacturer information)

Scope of delivery

• 1 x Shamal Dual Profile DB 2WF C23 wheelset

Technologies

G3 SPOKE GEOMETRY

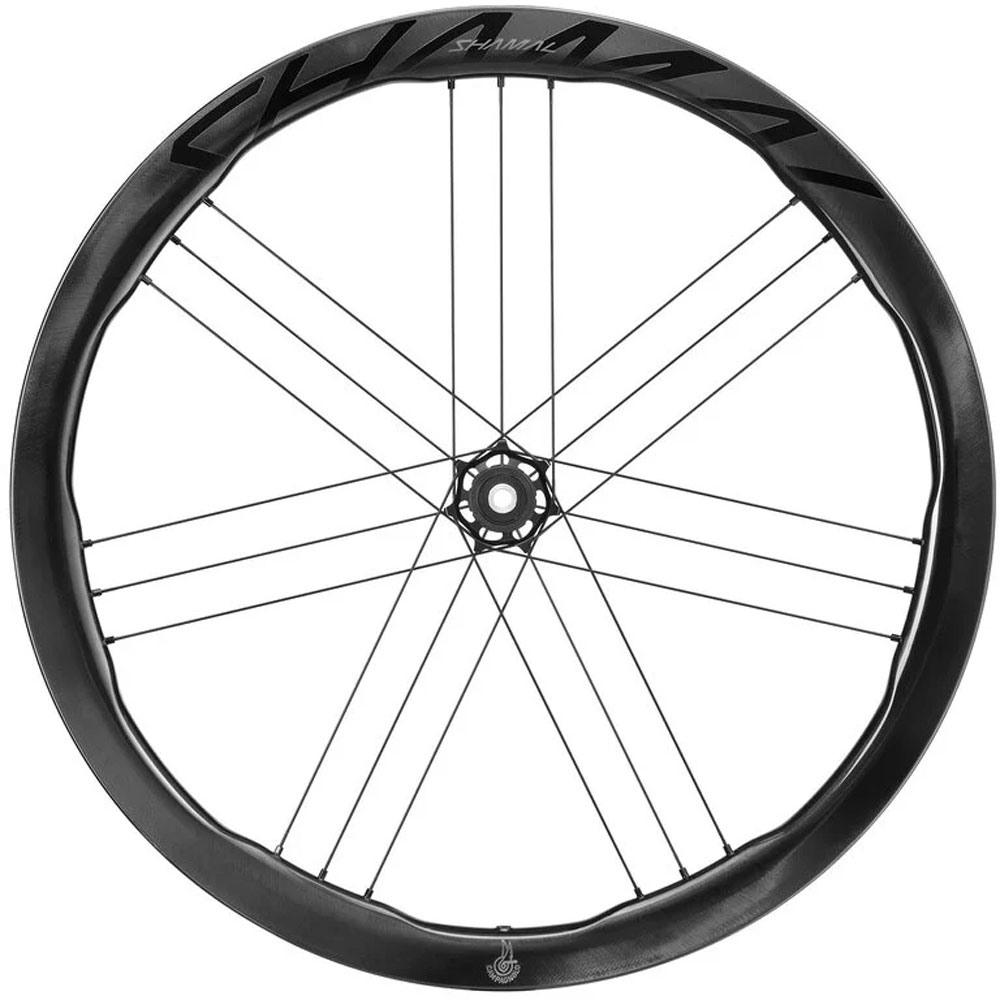

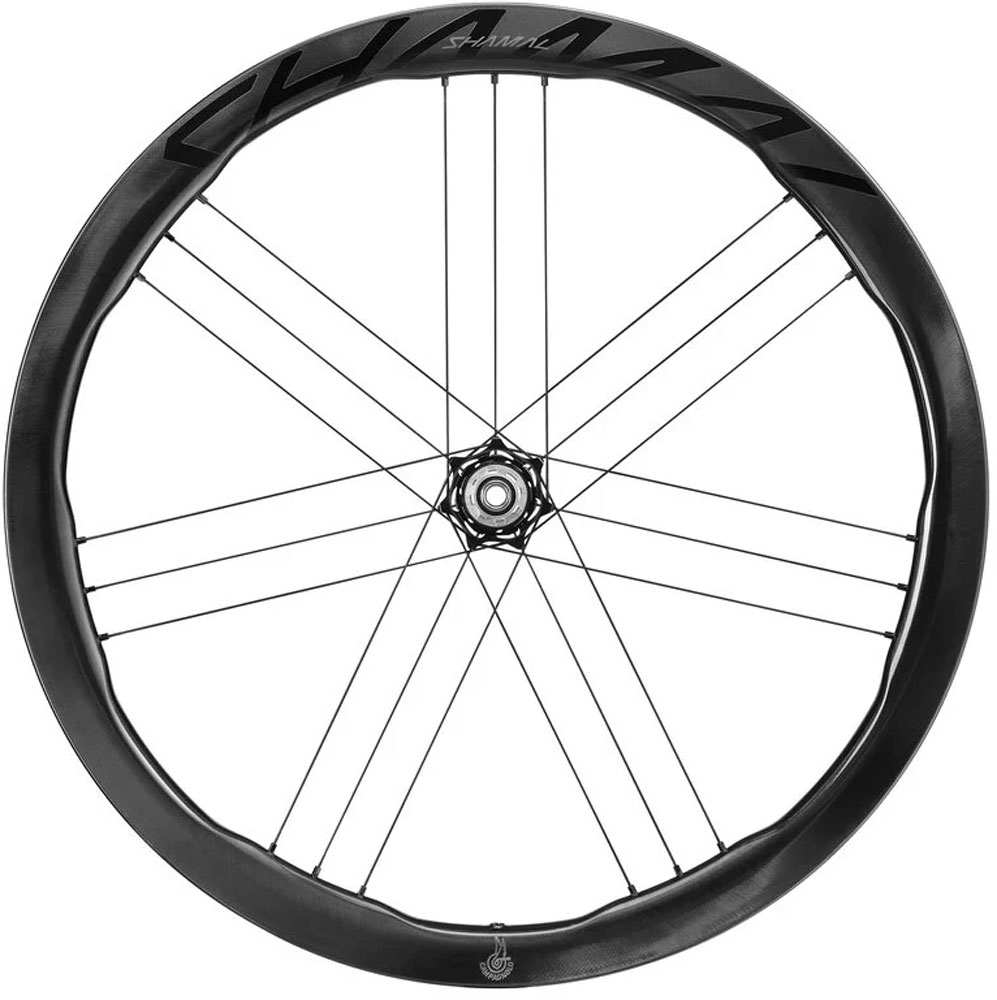

• Campagnolo's G3 geometry revolutionizes the conventional spoke configuration for road wheels. Groups of three parallel spokes are arranged in a 2:1 ratio, creating an optimal tension balance. This innovative arrangement increases stiffness, improves power transmission and reduces weight. The triplet pattern minimizes vibrations and rim deformation under load. On the front wheel there are more spokes on the disk side, while on the rear wheel the spokes on the cassette side are doubled. G3 spoking can be found in the Bora WTO and Bora Ultra WTO road wheels, the Shamal series and all Campagnolo aluminum wheels.

N3W (NEXT 3 WAYS)

• N3W is a patented freehub body standard developed for 11-, 12- and 13-speed cassettes from 9, 10 and 11 teeth, but remains compatible with older 9- and 10-speed cassettes. An N3W ring enables compatibility with current cassettes from 11 teeth upwards. N3W is 4.4 mm shorter than the classic freehub body, resulting in a remarkable weight saving. The N3W Light version with aluminum hub offers maximum torsional rigidity and performance control. This freehub body is used in the carbon wheels of the Bora WTO, Bora Ultra WTO, Hyperon Ultra and Shamal Carbon series.

MOMAG™

• MOMAG™ is an innovative "Mounting Magnet" system for the positioning of spoke nipples. The nipples are inserted through the valve hole and guided magnetically to the spoke engagement point. This results in an unperforated rim bed with conventional spoking. The advantages are a homogeneous rim structure, higher fatigue strength, the possibility of greater spoke tension and greater stiffness. It also considerably simplifies maintenance and spoke replacement. MOMAG™ technology is used in the carbon wheels of the Bora WTO, Shamal, Levante and Hyperon Ultra series.

2-Way Fit™

• The 2-Way Fit™ technology enables the use of both tubeless and classic clincher tires on the same wheel. It offers advantages such as increased comfort and reduced rolling friction with tubeless tires. In the event of a puncture, tubeless tires do not suddenly deflate, which is a safety advantage. The tubeless solution also eliminates the risk of snake-bite punctures. The system makes it easy to switch to a classic inner tube in the event of a puncture. 2-Way Fit™ is used in all Campagnolo carbon wheels and Shamal Ultra aluminum wheels.

C-LUX FINISH

• The C-LUX finish is a high-gloss surface treatment for Campagnolo carbon rims. It is achieved by precisely controlling the outer resin layer of the carbon fiber structure. The result is a flawless surface without additional painting, which saves weight. In the rim channel, the C-LUX surface improves the positioning and sealing of tubeless tires. The fascinating reflections of the exposed carbon fiber and the essential lines turn Campagnolo wheels into design icons. The C-LUX finish is used on the Bora Ultra WTO, Bora WTO, Hyperon Ultra, Shamal, Ghibli and Levante gravel wheels.

• Manufacturer number: WC4490AP8A110
• EAN:
• Model Year: 2025
