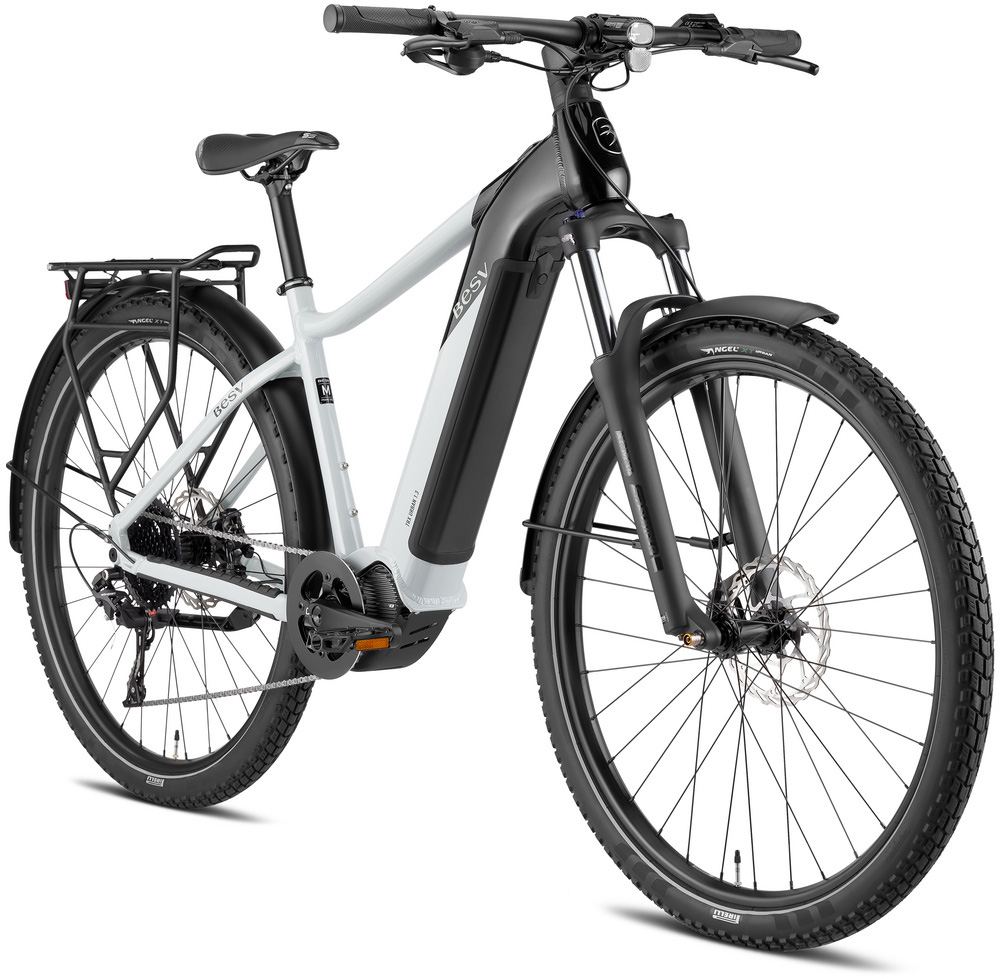

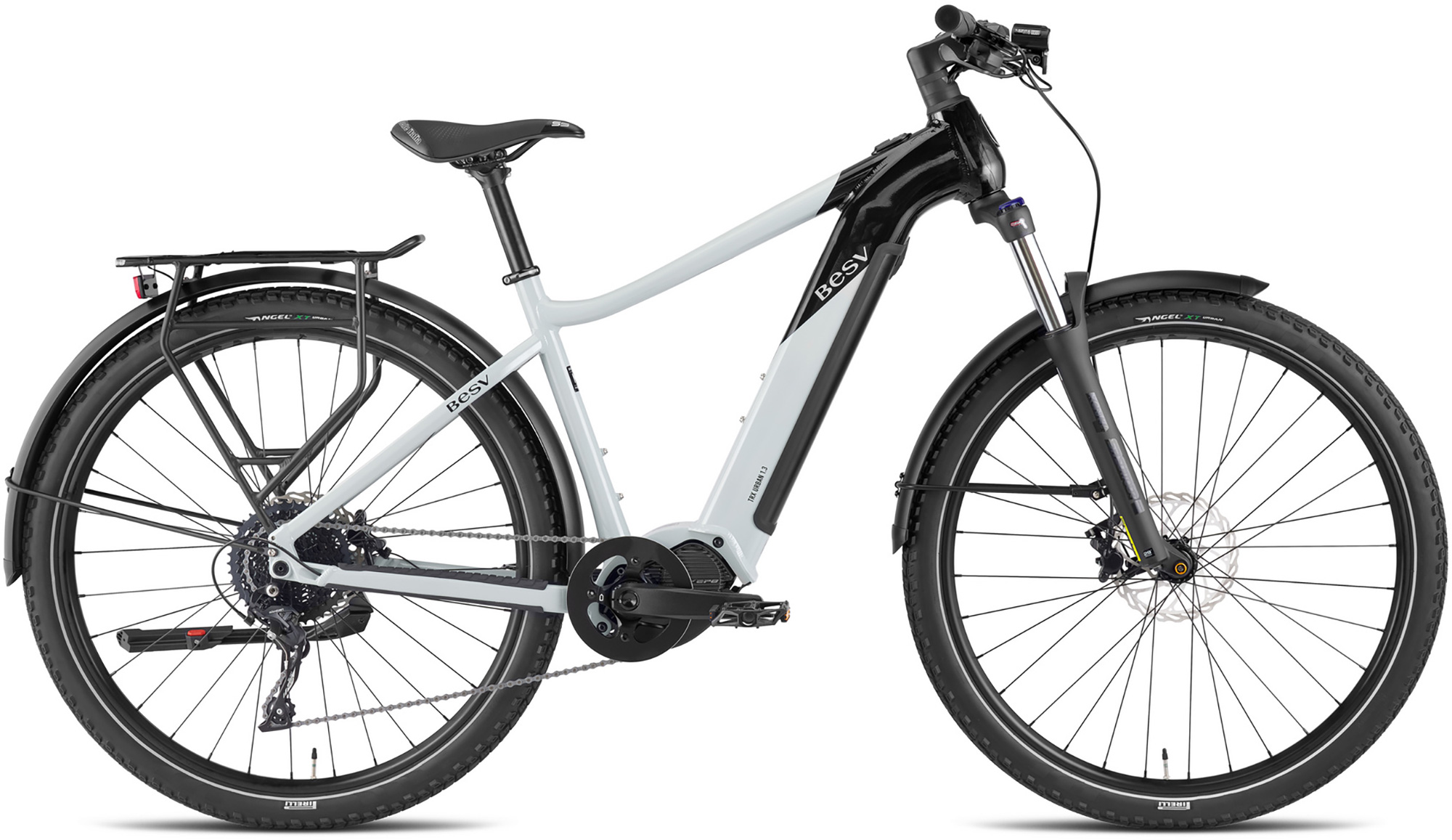

BESV TRX Urban 1.3 Step Over Steel Grey Night Black
Product information "TRX Urban 1.3 Step Over Steel Grey Night Black"
The BESV TRX Urban 1.3 is a versatile SUV e-bike featuring a robust aluminium hardtail frame and a powerful Shimano EP6 mid-drive motor with 85 Nm of torque. The fully integrated 630 Wh battery offers sufficient power for extended trekking tours, daily commutes and off-road rides. The Microshift XLE 10-speed gear system ensures reliable gear changes, whilst the SR Suntour XCM34 suspension fork with 100 mm of travel and the wide Pirelli Angel XT Urban tyres provide riding comfort and traction on a variety of surfaces. Hydraulic Shimano MT200 disc brakes, along with a comprehensive range of everyday features including a Racktime Snap-IT luggage rack, mudguards and 65-lux lights, round off the BESV TRX Urban 1.3.
Features - BESV TRX 1.3 Step Over
- Sturdy BESV TRX aluminium hardtail frame with integrated battery and sporty SUV geometry
- Powerful Shimano EP600 mid-drive motor with a rated power output of 250 watts and 85 Nm of torque
- Fully integrated lithium-ion battery with a capacity of 630 Wh
- Shimano SC-EN500 LCD display for controlling the e-bike system
- SR Suntour XCM34 suspension fork with 100 mm travel and lockout function
- Microshift XLE 10-speed derailleur with an 11–42-tooth cassette
- Shimano MT200 hydraulic 2-piston disc brakes with 180 mm rotors at the front and rear
- Sturdy 29-inch wheelset with WTB ST i27 aluminium rims, Formula hubs and Boost mounting width
- Wide Pirelli Angel XT Urban tyres in 57-622 with Pro Compound Urban, puncture protection and reflective strips
- 3D-forged aluminium stem with integrated SP-Connect mount and internal cable routing
- Lezyne E-Bike Mini E65 front light with 65 lux and Herrmans H-Cargo rear light
- Sturdy aluminium luggage rack with Racktime Snap-IT platform and spring-loaded flap
- Aluminium front and rear mudguards and an adjustable side stand
- Manufacturer number: 99.Y2Q64.8ME
- Model Year: 2025
BESV TRX Urban 1.3 Step Over Steel Grey Night Black
The BESV TRX Urban 1.3 is a versatile SUV e-bike featuring a robust aluminium hardtail frame and a powerful Shimano EP6 mid-drive motor with 85 Nm of torque. The fully integrated 630 Wh battery offers sufficient power for extended trekking tours, daily commutes and off-road rides. The Microshift XLE 10-speed gear system ensures reliable gear changes, whilst the SR Suntour XCM34 suspension fork with 100 mm of travel and the wide Pirelli Angel XT Urban tyres provide riding comfort and traction on a variety of surfaces. Hydraulic Shimano MT200 disc brakes, along with a comprehensive range of everyday features including a Racktime Snap-IT luggage rack, mudguards and 65-lux lights, round off the BESV TRX Urban 1.3.
Features - BESV TRX 1.3 Step Over
- Sturdy BESV TRX aluminium hardtail frame with integrated battery and sporty SUV geometry
- Powerful Shimano EP600 mid-drive motor with a rated power output of 250 watts and 85 Nm of torque
- Fully integrated lithium-ion battery with a capacity of 630 Wh
- Shimano SC-EN500 LCD display for controlling the e-bike system
- SR Suntour XCM34 suspension fork with 100 mm travel and lockout function
- Microshift XLE 10-speed derailleur with an 11–42-tooth cassette
- Shimano MT200 hydraulic 2-piston disc brakes with 180 mm rotors at the front and rear
- Sturdy 29-inch wheelset with WTB ST i27 aluminium rims, Formula hubs and Boost mounting width
- Wide Pirelli Angel XT Urban tyres in 57-622 with Pro Compound Urban, puncture protection and reflective strips
- 3D-forged aluminium stem with integrated SP-Connect mount and internal cable routing
- Lezyne E-Bike Mini E65 front light with 65 lux and Herrmans H-Cargo rear light
- Sturdy aluminium luggage rack with Racktime Snap-IT platform and spring-loaded flap
- Aluminium front and rear mudguards and an adjustable side stand
- Manufacturer number: 99.Y2Q64.8ME
- Model Year: 2025
Configuration
| Frame: | BESV TRX Series aluminum hardtail frame, compatible with Shimano STEPS and an integrated battery |
|---|---|
| Frame material: | Aluminium |
| Wheel size: | 29" |
| Speeds: | 1 x 10 |
| Fork: | SR Suntour XCM34, 34 mm stanchions, lockout, coil spring suspension, tapered 1 1/8"–1.5" aluminum steerer tube, 100 mm travel |
| Travel: | 100 mm |
| Brakes: | Shimano MT200 hydraulic 2-piston disc brakes with 180 mm rotors front and rear |
| Brake discs: | 180mm / 180mm |
| Brake levers: | Shimano MT201, 2-finger levers |
| Colour: | Steel Grey Night Black |
| Headset: | Acros AZX-581, 1.5" headset, angular contact bearings, integrated cable routing |
| Stem: | 3D-forged aluminum City-Trekking stem, SP Connect mount, 31.8 mm clamp diameter, integrated cable routing |
| Handlebar: | E-MTB riser handlebar, 6066 aluminum, 4 mm rise, 7° backsweep, 31.8 mm clamp diameter |
| Bar grips: | Padded E-MTB gel grips with BESV locking system |
| Saddle: | Selle Italia Max S5 Superflow |
| Seatpost: | Promax SP-726, 31.6 mm diameter |
| Crankset: | Samox for Shimano STEPS, 38T chainring |
| Bottom bracket: | Shimano, integrated into the motor |
|---|---|
| Rear derailleur: | Microshift XLE, 10-speed |
| Gear shifters: | Microshift XLE, 10 speed |
| Cassette: | Microshift XLE, 10-speed, 11–42T |
| Chain: | KMC e10Turbo with Quick-Link |
| Tyres: | Pirelli Angel XT Urban, 57-622, Pro Compound Urban, 60 TPI, wire bead, 5 mm nylon puncture protection layer, reflective sidewall stripes |
| Wheelset: | Formula CL-811 front hub, Formula CL-3248 rear hub, Boost hub spacing, WTB ST i27 29" multi-chamber aluminum rims, 32H |
| Display: | Shimano SC-EN500, left-mounted LCD display |
| Battery: | Integrated 630 Wh lithium-ion battery, approved for the Shimano Service Program, with Smart 4–5.6 A charger |
| Charger: | Smart 4–5.6 A charger |
| Engine: | Shimano EP600 mid-drive motor, 250 W nominal power, 85 Nm torque, maximum assisted speed of 25 km/h |
| Front light: | Lezyne E-Bike Mini E65, 6–12 V, 65 lux, with reflector |
| Backlight: | Herrmans H-Cargo, 6–12 V, with reflector |
| Rack: | Tubular aluminum rear carrier with Snap-IT platform, spring clamp and H-Cargo rear light mount |
| Pedals: | Wellgo, alloy body, ball bearings |
| Maximum total weight allowed: | 140 kg (body weight + bicycle + kit) |
| Weight: | 26.6 kg |
Everything you need to know about the EP Series | SHIMANO
What are the benefits of a SHIMANO e-MTB?
Available across a wide range of brands and models
Countless options to help you find the perfect E-MTB that best suits your riding style and preferences
Technology tried and tested on the trails
E-MTB systems are based on 40 years of research and set the undisputed benchmark in the mountain bike industry
Designed as a complete system
Unique performance thanks to seamless integration with other SHIMANO components
Discover Shimano’s EP600 series
The EP600 e-MTB system offers EP8-level performance at an affordable price. A wide range of brands and models are already equipped with the versatile and powerful SHIMANO EP6 e-bike system. Click on a component to find out more.
SHIMANO EP6 motor
The EP6 drive unit has been developed to deliver EP8-level e-bike performance at a more affordable price, without compromising on the 85 Nm of torque.
- A maximum torque of 85 Nm ensures a smooth, natural and intuitive riding experience.
- Weighing just 3 kg, the unit combines intelligent sensors with efficient pedal mechanics
- Enables FREE SHIFT and AUTO SHIFT functionality in conjunction with the new DEORE XT Di2
- Comprehensive configuration options via the FINE TUNE mode in the E-TUBE PROJECT Cyclist Cyclist Cyclist app
- Offers extended connectivity via CAN and ACC ports
- Assist modes: Walk, Eco, Trail and Boost
- Suitable for a wide range of uses, from mountain biking to urban exploration rides
Compatible with SHIMANO Deore XT Di2 (optional)
The EP6 is compatible with the precise electronic shifting technology of the DEORE XT Di2 and enables the use of the FREE SHIFT and AUTO SHIFT functions. Another advantage is the wide selection of cranks, chains and chainrings.
The DEORE XT Di2 is available in two versions:
- Fast and smooth shifting with HYPERGLIDE+ for 12-speed drivetrains with FREE SHIFT
- Smooth and durable shifting with LINKGLIDE technology for 11-speed drivetrains with FREE SHIFT and AUTO SHIFT
Advantages:
- Shorter cranks prevent pedal wobble and enable a smooth cadence whilst maintaining consistent motor assistance
- Crankset lengths: 160 mm, 165 mm, 170 mm or 175 mm
- Lightweight and sturdy chainrings with DYNAMIC CHAIN ENGAGEMENT+ for improved chain retention on rough terrain
- Chainring options: 32T, 34T, 36T or 38T
What happens when DEORE XT Di2 meets the EP Series? | SHIMANO
Personalised riding experience
TUBE PROJECT Cyclist Cyclist Cyclist app
Control everything via the E-TUBE PROJECT Cyclist Cyclist Cyclist app, from the level of assistance to the AUTO SHIFT settings. You can easily adjust the settings from the app to suit the terrain and your preferences. You can also save your settings in two different profiles and switch between them whilst riding.
With 15 customisation modes, the ability to fine-tune the AUTO SHIFT and FREE SHIFT settings for DEORE XT Di2, and wireless firmware updates, the app offers maximum control and freedom to personalise your riding experience.
E-TUBE PROJECT App from version 4.0 | SHIMANO
Fine-tune your ride with the E-TUBE PROJECT Cyclist App | SHIMANO
