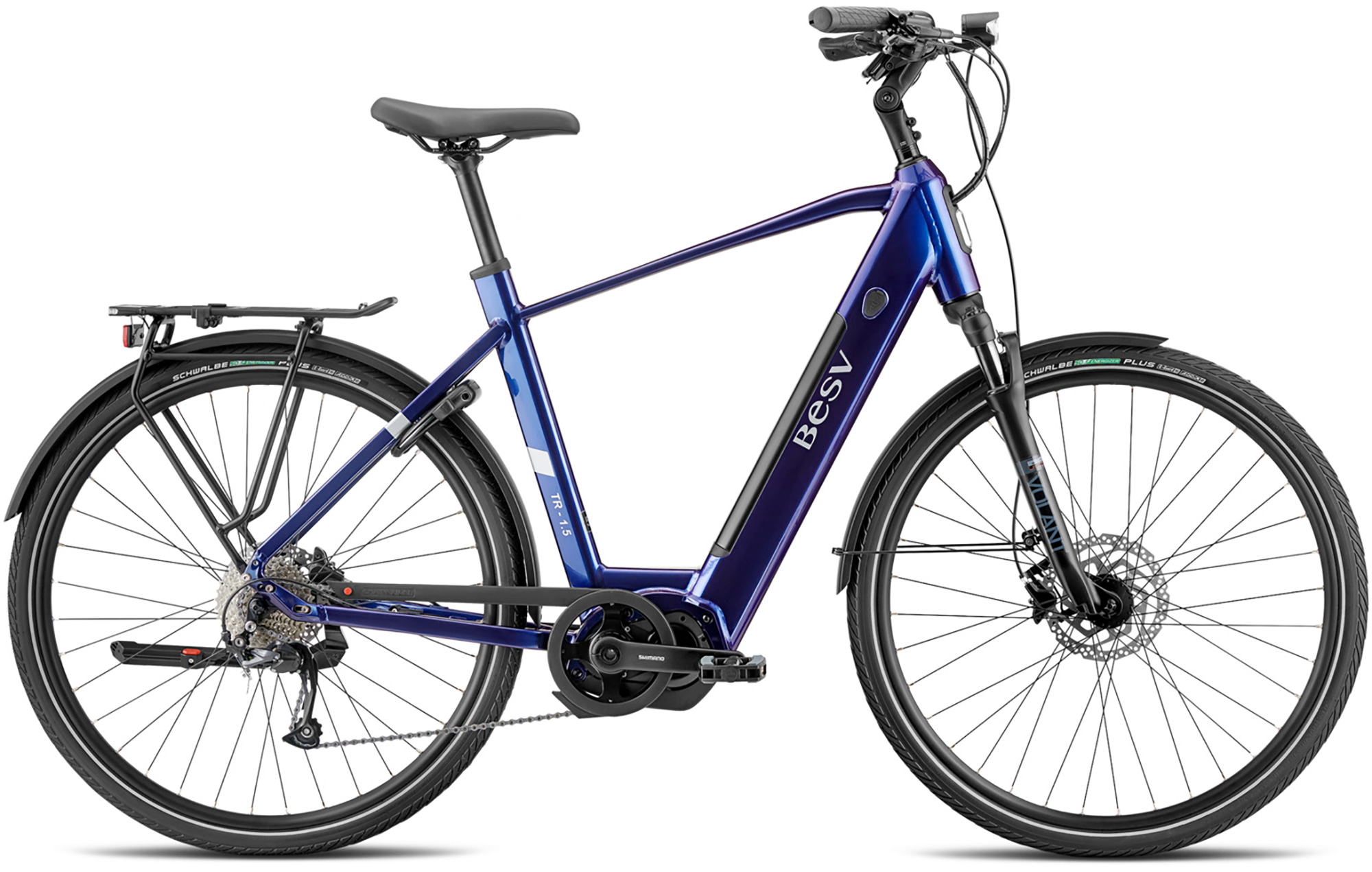

BESV TR 1.5 Men’s Dark Blue
Product information "TR 1.5 Men’s Dark Blue"
The BESV TR 1.5 is a comfortable trekking e-bike with a high-quality aluminium frame and an integrated 418 Wh Darfon battery, making it ideal for everyday use, leisurely rides and longer trips. The Shimano STEPS E6100 mid-drive motor, with 60 Nm of torque, provides smooth pedal assistance, whilst the Shimano E6100 LCD display clearly shows all key riding data. The Shimano Altus 9-speed gear system enables reliable gear changes, and the RST suspension fork with 50 mm of travel enhances riding comfort on uneven terrain. Hydraulic Shimano MT201 disc brakes, Schwalbe Energizer Plus tyres and a full range of everyday features including lights, mudguards, a luggage rack and a side stand round off this versatile trekking e-bike.
Features - BESV TR 1.5
- High-quality BESV aluminium frame with integrated battery
- Shimano STEPS E6100 mid-drive motor with 60 Nm torque and pedal assistance up to 25 km/h

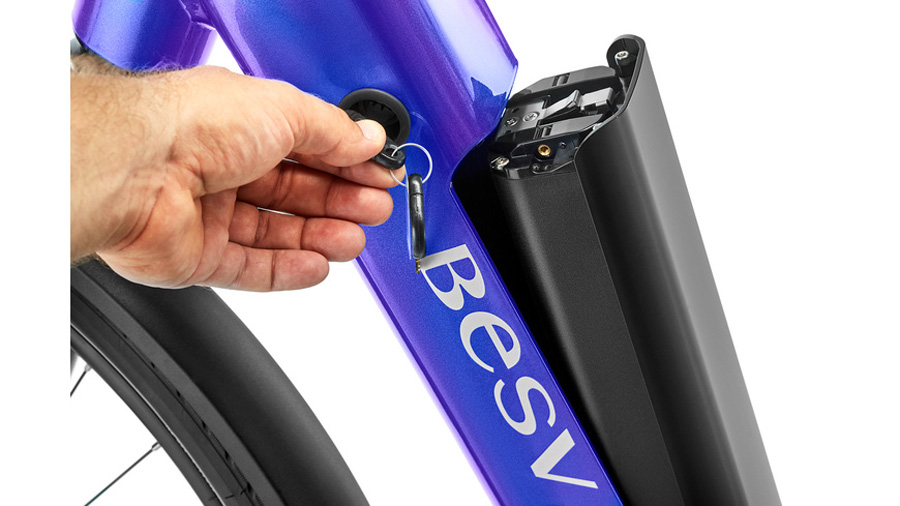

- Integrated Darfon lithium-ion battery with a capacity of 418 Wh
- Shimano E6100 LCD display with Bluetooth and ANT+ connectivity
- RST suspension fork with steel spring and 50 mm travel for added comfort
- Shimano Altus 9-speed derailleur with 11–34-tooth cassette
- Shimano MT201 hydraulic 2-piston disc brakes with 180 mm front and 160 mm rear rotors
- Sturdy 28-inch aluminium wheels with Shimano HB-TX505 hubs and stainless steel spokes
- Schwalbe Energizer Plus Performance tyres in 700 x 47C with reflective sidewalls
- Ergonomic city-trekking handlebars with comfortable gel grips and an angle-adjustable stem
- Comfortable trekking saddle with D1 padding
- Herrmans MR4 e-bike front light with 120 lumens and Herrmans H-Cargo rear light
- Additional daytime running light integrated into the head tube for improved visibility
- Full range of everyday features including aluminium mudguards, a luggage rack with a spring-loaded flap, a chain guard and an adjustable side stand
- Manufacturer number: 99.Y0U64.8XC
- Model Year: 2021
BESV TR 1.5 Men’s Dark Blue
The BESV TR 1.5 is a comfortable trekking e-bike with a high-quality aluminium frame and an integrated 418 Wh Darfon battery, making it ideal for everyday use, leisurely rides and longer trips. The Shimano STEPS E6100 mid-drive motor, with 60 Nm of torque, provides smooth pedal assistance, whilst the Shimano E6100 LCD display clearly shows all key riding data. The Shimano Altus 9-speed gear system enables reliable gear changes, and the RST suspension fork with 50 mm of travel enhances riding comfort on uneven terrain. Hydraulic Shimano MT201 disc brakes, Schwalbe Energizer Plus tyres and a full range of everyday features including lights, mudguards, a luggage rack and a side stand round off this versatile trekking e-bike.
Features - BESV TR 1.5
- High-quality BESV aluminium frame with integrated battery
- Shimano STEPS E6100 mid-drive motor with 60 Nm torque and pedal assistance up to 25 km/h
- Integrated Darfon lithium-ion battery with a capacity of 418 Wh
- Shimano E6100 LCD display with Bluetooth and ANT+ connectivity
- RST suspension fork with steel spring and 50 mm travel for added comfort
- Shimano Altus 9-speed derailleur with 11–34-tooth cassette
- Shimano MT201 hydraulic 2-piston disc brakes with 180 mm front and 160 mm rear rotors
- Sturdy 28-inch aluminium wheels with Shimano HB-TX505 hubs and stainless steel spokes
- Schwalbe Energizer Plus Performance tyres in 700 x 47C with reflective sidewalls
- Ergonomic city-trekking handlebars with comfortable gel grips and an angle-adjustable stem
- Comfortable trekking saddle with D1 padding
- Herrmans MR4 e-bike front light with 120 lumens and Herrmans H-Cargo rear light
- Additional daytime running light integrated into the head tube for improved visibility
- Full range of everyday features including aluminium mudguards, a luggage rack with a spring-loaded flap, a chain guard and an adjustable side stand
- Manufacturer number: 99.Y0U64.8XC
- Model Year: 2021
Configuration
| Frame: | BESV premium alloy frame with down tube for integrated Darfon battery, Shimano center-motor with protection cover, tapered 1 1/8" - 1.5" head tube, post disc mount, cold-forged dropout and replaceable hanger |
|---|---|
| Frame material: | Aluminium |
| Wheel size: | 27.5"x2.4 |
| Speeds: | 1 x 8 |
| Fork: | RST, Coil damping, tapered alloy steerer, travel 50mm |
| Travel: | 50 mm |
| Brakes: | Shimano MT201, 2-piston hydraulic disc, with 180mm front and 160mm rear rotors |
| Brake discs: | 180mm / 160mm |
| Brake levers: | Shimano MT201, 3 finger lever |
| Colour: | Dark blue metallic with cream decals |
| Headset: | First Components, 1 1/8" - 1.5" headset, retainer bearings |
| Stem: | Alloy City-Trekking, adjustable 0-90°, 31.8mm clamp |
| Handlebar: | Alloy City-Trekking, rise bar, 2014 alloy, 20mm rise, sweep: 35° up, 31.8mm clamp, width: 680mm |
| Bar grips: | Comfortable gel grips with padding |
| Saddle: | Comfortable saddle with D1 padding |

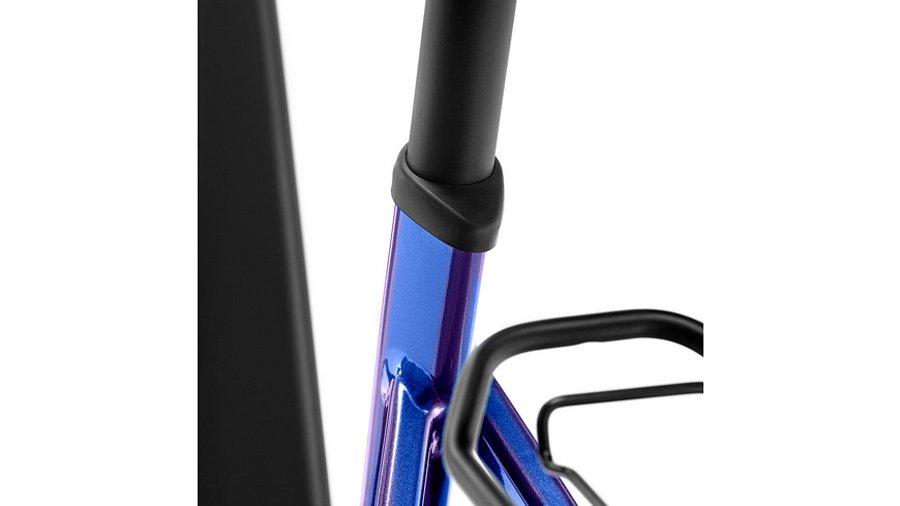

| Seatpost: | Alloy micro-adjust, 31.6mm diameter, 0mm offset |
| Crankset: | Shimano E6100, 38T chainring |
| Bottom bracket: | Shimano, integrated in motor |
|---|---|
| Rear derailleur: | Shimano Altus 9 speed |
| Gear shifters: | Shimano Altus 9 speed |
| Cassette: | Shimano Altus 9 speed, 11-34T |
| Chain: | KMC e9 EPT |
| Tyres: | Schwalbe Energizer Plus Performance, 700×47c, Addix compound, 67 EPI wire bead, with reflective stripe |
| Wheelset: | Shimano HB-TX505 front hub and rear hub, for Center Lock disc brakes, straight stainless steel spokes, 700c multichamber alloy rims for disc brakes with 36H |
| Display: | Shimano E-6100 center mounted LCD display with Bluetooth™ and ANT+ private connectivity |

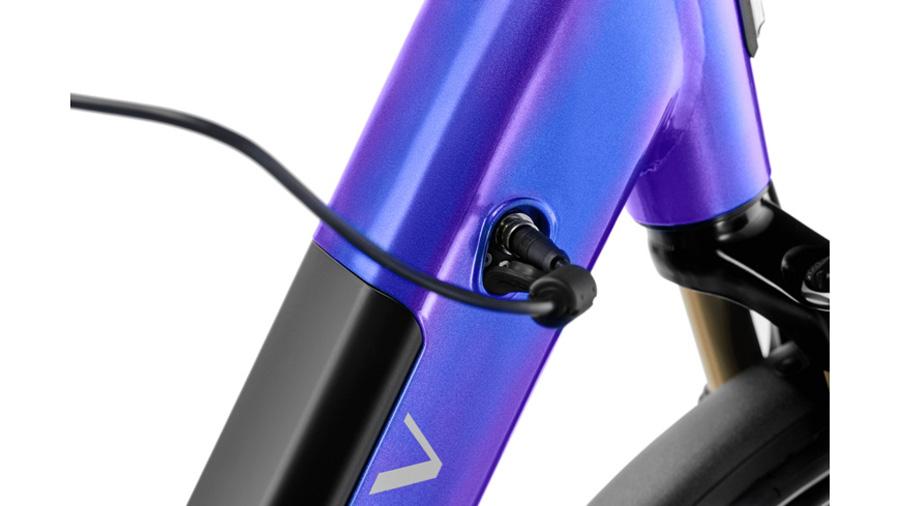

| Battery: | Darfon integrated battery, 418Wh with 2A charger |
| Engine: | Shimano E-6100 center-motor, 250W rated power, 60Nm of torque, 25km/h maximum assist |
| Front light: | Herrmans MR4 E-Bike, 120 Lumens, 6-12V, with reflector, stem mounted |
| Backlight: | Herrmans H-Cargo, 6-12v, with reflector |
| Rack: | Integrated with fender, tubular aluminium carrier, with platform and spring clamp, rear light mount |
| Pedals: | Wellgo C316DU with reflectors |
| Other details: | Mudguard, kickstand, bell, accessories: Day Light integrated into the head tube, adjustable kickstand, chain guard |
| Maximum total weight allowed: | 120 kg (body weight + bicycle + kit) |
| Weight: | 31,4 kg |
Shimano STEPS E6100 motor (DU-E6180)
The Shimano STEPS E6100 is a compact and efficient mid-drive e-bike motor, specially developed for comfortable everyday rides, commuting and extended trekking tours. With a maximum torque of 60 Nm and a rated continuous power output of 250 watts, the drive unit provides smooth and natural pedal assistance. Whether in city traffic, on longer cycle tours or on inclines – the motor ensures a comfortable and controlled riding experience.
Thanks to its energy-efficient drive concept, the Shimano STEPS E6100 utilises the available battery capacity particularly efficiently, thereby supporting a long range. The compact design allows for a short rear triangle, thereby improving the e-bike’s manoeuvrability. At the same time, the narrow, symmetrical Q-factor ensures a natural pedalling position and an ergonomic pedalling feel.
When used with compatible Shimano Di2 electronic gear systems, the E6100 enables fully automatic gear changes, which further enhances riding comfort. The Shimano E-TUBE PROJECT software also allows the cut-off speed of the motor assistance to be configured within the specified system limits.
Highlights of the Shimano STEPS E6100
- Compact and efficient Shimano e-bike mid-drive motor for city, trekking and touring e-bikes
- 60 Nm maximum torque for smooth assistance in everyday use and on tours
- 250 watts rated continuous power for effortless and comfortable cycling
- Energy-efficient motor control for optimised battery usage and a long range
- Natural pedalling feel thanks to a narrow and symmetrical Q-factor
- Compact design allows for short rear triangle lengths and agile handling
- Fully automatic gear changes in conjunction with compatible Shimano Di2 gear systems
- Configurable cut-off speed via Shimano E-TUBE PROJECT within the permissible system limits
- Compatible with mechanical and electronic Shimano gear systems in accordance with the manufacturer’s specifications
- Suitable for e-bikes with disc brakes, V-brakes or roller brakes
Technical specifications of the Shimano STEPS E6100
| Manufacturer | Shimano |
| Motor series | STEPS E6100 |
| Model name | DU-E6180 |
| Motor type | Brushless electric motor |
| Motor position | Mid-drive motor |
| Rated continuous power | 250 W |
| Maximum torque | 60 Nm |
| Rated voltage | 36 V DC |
| Assistance limit | 25 km/h (EU pedelec) |
| Gear compatibility | Shimano Di2 hub gears and compatible derailleurs |
| Automatic gear-shifting function | With compatible Shimano Di2 gear system |
| Software | Shimano E-TUBE PROJECT |
| Brake compatibility | Disc brakes, V-brakes and roller brakes |
| Intended use | City, trekking, touring and everyday use |
