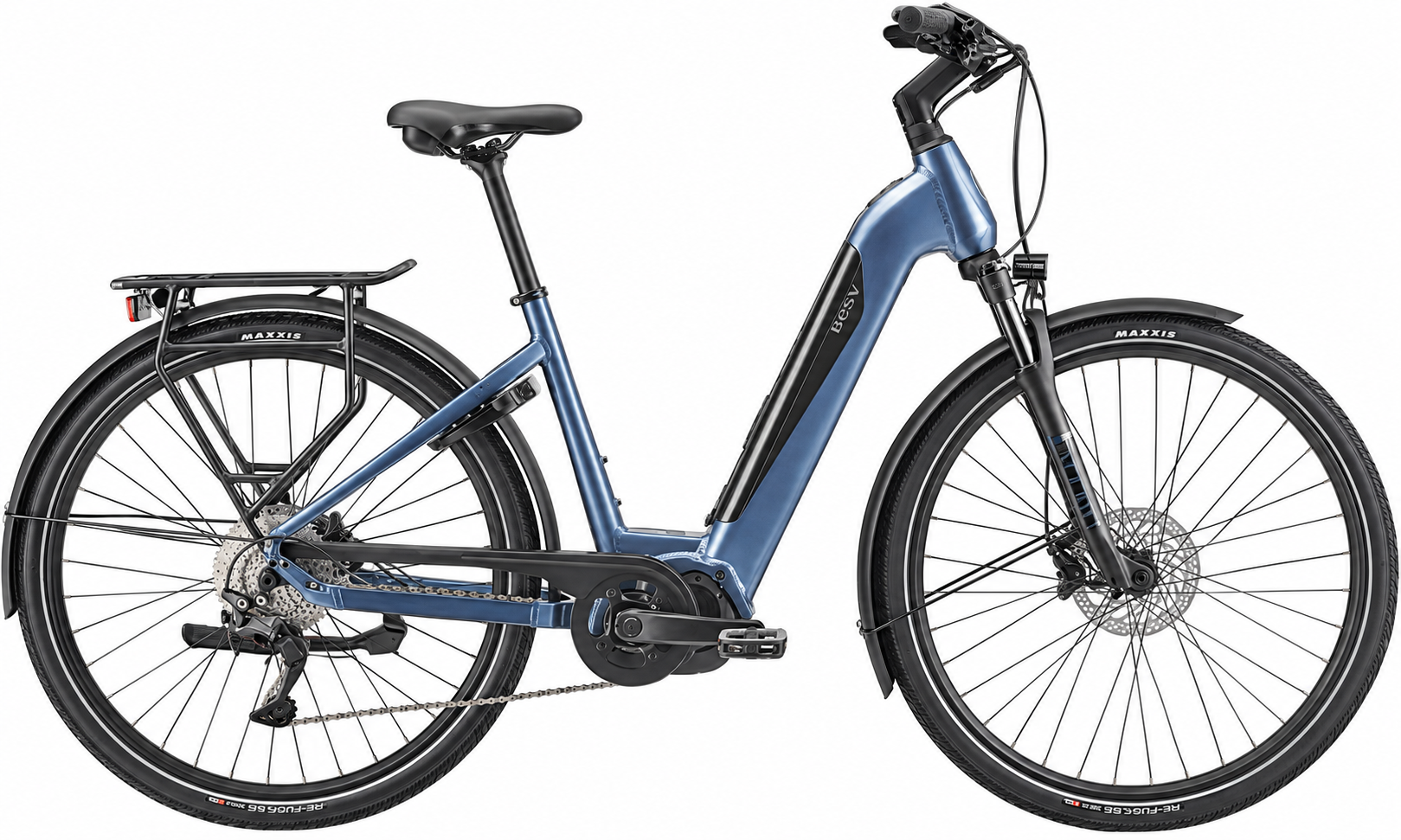

BESV TR 1.3 Low Step Dark Onyx Blue
Product information "TR 1.3 Low Step Dark Onyx Blue"
The BESV TR 1.3 LS is a comfortable, low-step trekking e-bike that is ideal for daily commutes and long cycle rides. The quiet and efficient Shimano E6100 mid-drive motor, with 60 Nm of torque, combined with the long-lasting 630 Wh battery, ensures smooth pedal assistance. The Shimano Deore 10-speed gear system enables precise gear changes, whilst the RST Volant-15 suspension fork offers additional riding comfort. Hydraulic disc brakes ensure reliable braking performance, and practical features such as the Racktime Snap-it luggage rack, the integrated USB charging socket and the lighting system make this e-trekking bike a versatile companion for everyday use and leisure.
Features - BESV TR 1.3 Low Step
- Comfortable aluminium frame with a low step-through for easy mounting and dismounting
- Quiet and efficient Shimano E6100 mid-drive motor with 60 Nm of torque
- Long-lasting, integrated 630 Wh battery for long rides and the daily commute
- Shimano SC-E5000 display for a clear overview of ride data
- Precise Shimano Deore 10-speed gear system for smooth gear changes
- RST Volant-15 suspension fork with steel spring, remote lockout and 80 mm travel
- Hydraulic disc brakes for reliable braking performance
- Maxxis Metropass tyres in 700 x 50C for a comfortable ride on paved paths
- Integrated USB charging port on the frame for charging mobile devices
- Practical Racktime Snap-it luggage rack for carrying bags and luggage
- Everyday-ready specification including aluminium mudguards, an adjustable side stand and a lighting system
- Manufacturer number: 99.Y2U64.8L3
- Model Year: 2022
BESV TR 1.3 Low Step Dark Onyx Blue
The BESV TR 1.3 LS is a comfortable, low-step trekking e-bike that is ideal for daily commutes and long cycle rides. The quiet and efficient Shimano E6100 mid-drive motor, with 60 Nm of torque, combined with the long-lasting 630 Wh battery, ensures smooth pedal assistance. The Shimano Deore 10-speed gear system enables precise gear changes, whilst the RST Volant-15 suspension fork offers additional riding comfort. Hydraulic disc brakes ensure reliable braking performance, and practical features such as the Racktime Snap-it luggage rack, the integrated USB charging socket and the lighting system make this e-trekking bike a versatile companion for everyday use and leisure.
Features - BESV TR 1.3 Low Step
- Comfortable aluminium frame with a low step-through for easy mounting and dismounting
- Quiet and efficient Shimano E6100 mid-drive motor with 60 Nm of torque
- Long-lasting, integrated 630 Wh battery for long rides and the daily commute
- Shimano SC-E5000 display for a clear overview of ride data
- Precise Shimano Deore 10-speed gear system for smooth gear changes
- RST Volant-15 suspension fork with steel spring, remote lockout and 80 mm travel
- Hydraulic disc brakes for reliable braking performance
- Maxxis Metropass tyres in 700 x 50C for a comfortable ride on paved paths
- Integrated USB charging port on the frame for charging mobile devices
- Practical Racktime Snap-it luggage rack for carrying bags and luggage
- Everyday-ready specification including aluminium mudguards, an adjustable side stand and a lighting system
- Manufacturer number: 99.Y2U64.8L3
- Model Year: 2022
Configuration
| Frame: | BESV premium alloy frame with down tube for integrated Darfon battery, Shimano center-motor |
|---|---|
| Frame material: | Aluninium |
| Wheel size: | 27.5"x2.4 |
| Speeds: | stepless, 380 % |
| Fork: | RST Volant-15, coil spring, remote lockout 80 mm travel |
| Travel: | 80 mm |
| Brakes: | Hydraulic disc |
| Brake levers: | HRD |
| Colour: | Onyx blue |
| Stem: | aluminium |
| Handlebar: | Aluminium |
| Saddle: | Selle Italia S5 Superflow |
| Seatpost: | Alloy 6066, micro-adjustable, 31.6 mm diameter, 3.7 mm offset |
| Crankset: | BESV |
| Rear derailleur: | Shimano Deore, 10-speed |
|---|---|
| Gear shifters: | Shimano Deore, 10-speed |
| Cassette: | SHIMANO |
| Chain: | KMC e10Sport with Quick-Link |
| Tyres: | Maxxis Metropass, 700 × 50C |
| Wheelset: | Aluminium, 622 mm |
| Display: | Shimano SC-E5000 |
| Battery: | 630 Wh intube |
| Engine: | Shimano E6100, 60 Nm |
| Front light: | Lezyne eBike Mini E65 |
| Backlight: | Herrmans H-Cargo |
| Rack: | Racktime Snap-it system |
| Other details: | Mudguard, kickstand, bell |
| Maximum total weight allowed: | 140 kg (body weight + bicycle + kit) |

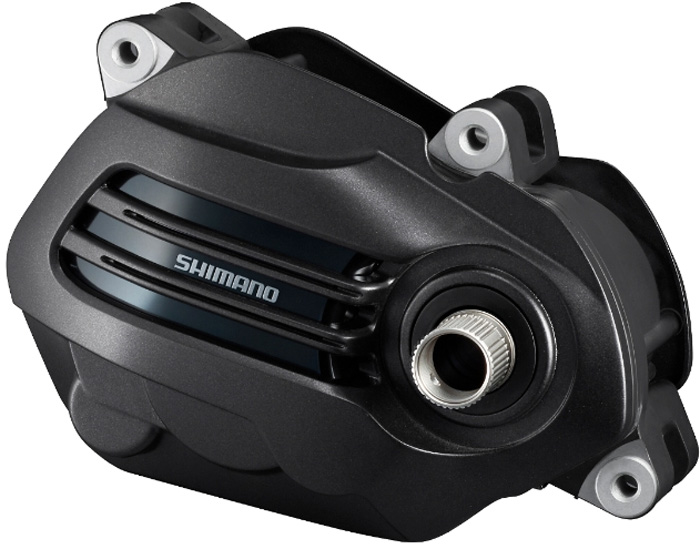

Shimano STEPS E6100 motor (DU-E6180)
The Shimano STEPS E6100 is a compact and efficient mid-drive e-bike motor, specially designed for comfortable everyday riding, commuting and extended trekking tours. With a maximum torque of 60 Nm and a rated continuous power output of 250 watts, the drive unit provides smooth and natural pedal assistance. Whether in city traffic, on longer cycle tours or on inclines – the motor ensures a comfortable and controlled riding experience.
Thanks to its energy-efficient drive concept, the Shimano STEPS E6100 utilises the available battery capacity particularly efficiently, thereby supporting a long range. The compact design allows for a short rear triangle, thereby improving the e-bike’s manoeuvrability. At the same time, the narrow, symmetrical Q-factor ensures a natural pedalling position and an ergonomic pedalling feel.
When used with compatible Shimano Di2 electronic gear systems, the E6100 enables fully automatic gear changes, which further enhances riding comfort. The Shimano E-TUBE PROJECT software also allows the cut-off speed of the motor assistance to be configured within the specified system limits.
Highlights of the Shimano STEPS E6100
- Compact and efficient Shimano e-bike mid-drive motor for city, trekking and touring e-bikes
- 60 Nm maximum torque for smooth assistance in everyday use and on tours
- 250 watts rated continuous power for effortless and comfortable cycling
- Energy-efficient motor control for optimised battery usage and a long range
- Natural pedalling feel thanks to a narrow and symmetrical Q-factor
- Compact design allows for short rear triangle lengths and agile handling
- Fully automatic gear changes in conjunction with compatible Shimano Di2 gear systems
- Configurable cut-off speed via Shimano E-TUBE PROJECT within the permissible system limits
- Compatible with mechanical and electronic Shimano gear systems in accordance with the manufacturer’s specifications
- Suitable for e-bikes with disc brakes, V-brakes or roller brakes
Technical specifications of the Shimano STEPS E6100
| Manufacturer | Shimano |
| Motor series | STEPS E6100 |
| Model name | DU-E6180 |
| Motor type | Brushless electric motor |
| Motor position | Mid-drive motor |
| Rated continuous power | 250 W |
| Maximum torque | 60 Nm |
| Rated voltage | 36 V DC |
| Assistance limit | 25 km/h (EU pedelec) |
| Gear compatibility | Shimano Di2 hub gears and compatible derailleurs |
| Automatic gear-shifting function | With compatible Shimano Di2 gear system |
| Software | Shimano E-TUBE PROJECT |
| Brake compatibility | Disc brakes, V-brakes and roller brakes |
| Intended use | City, trekking, touring and everyday use |
