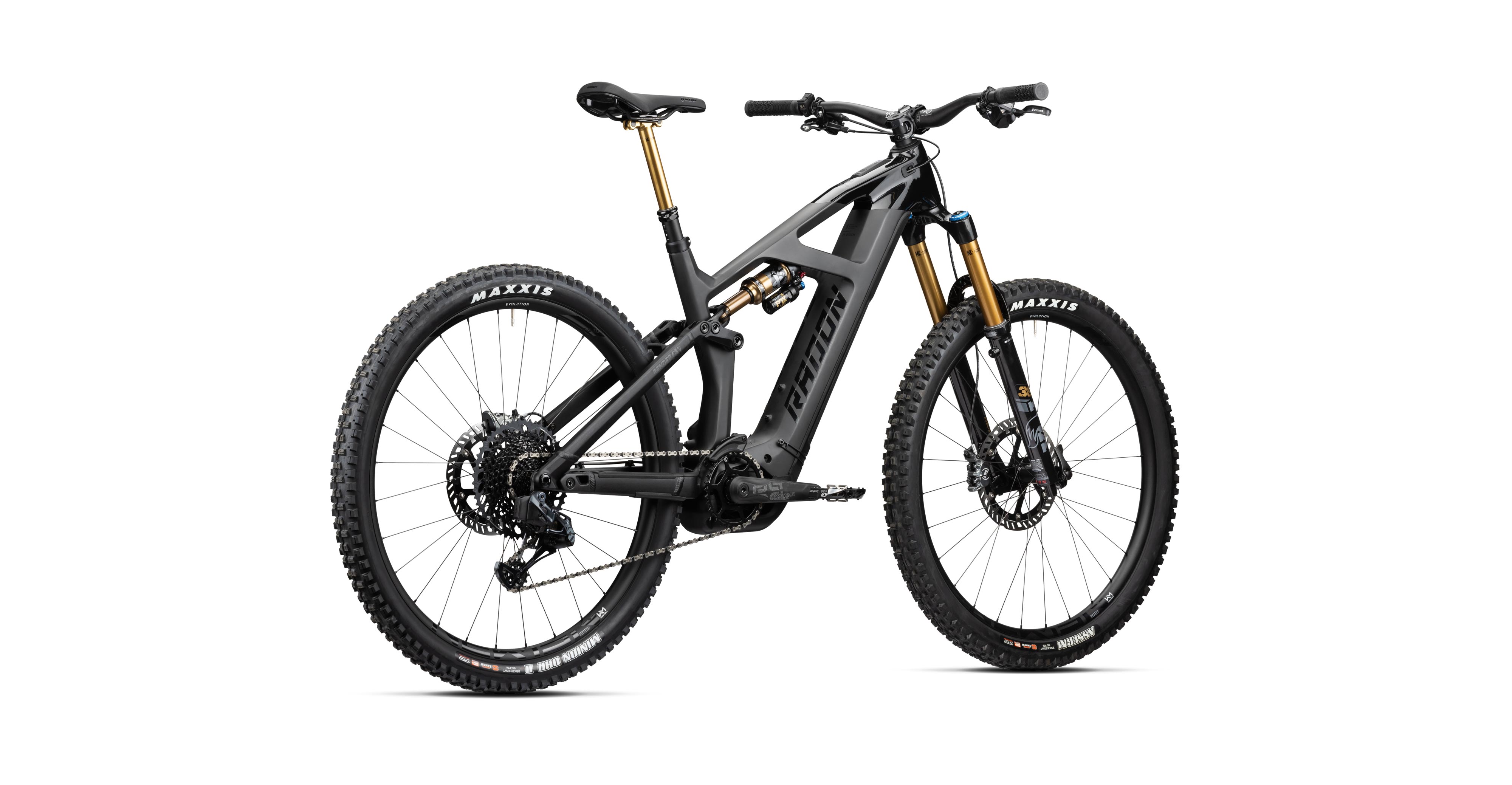

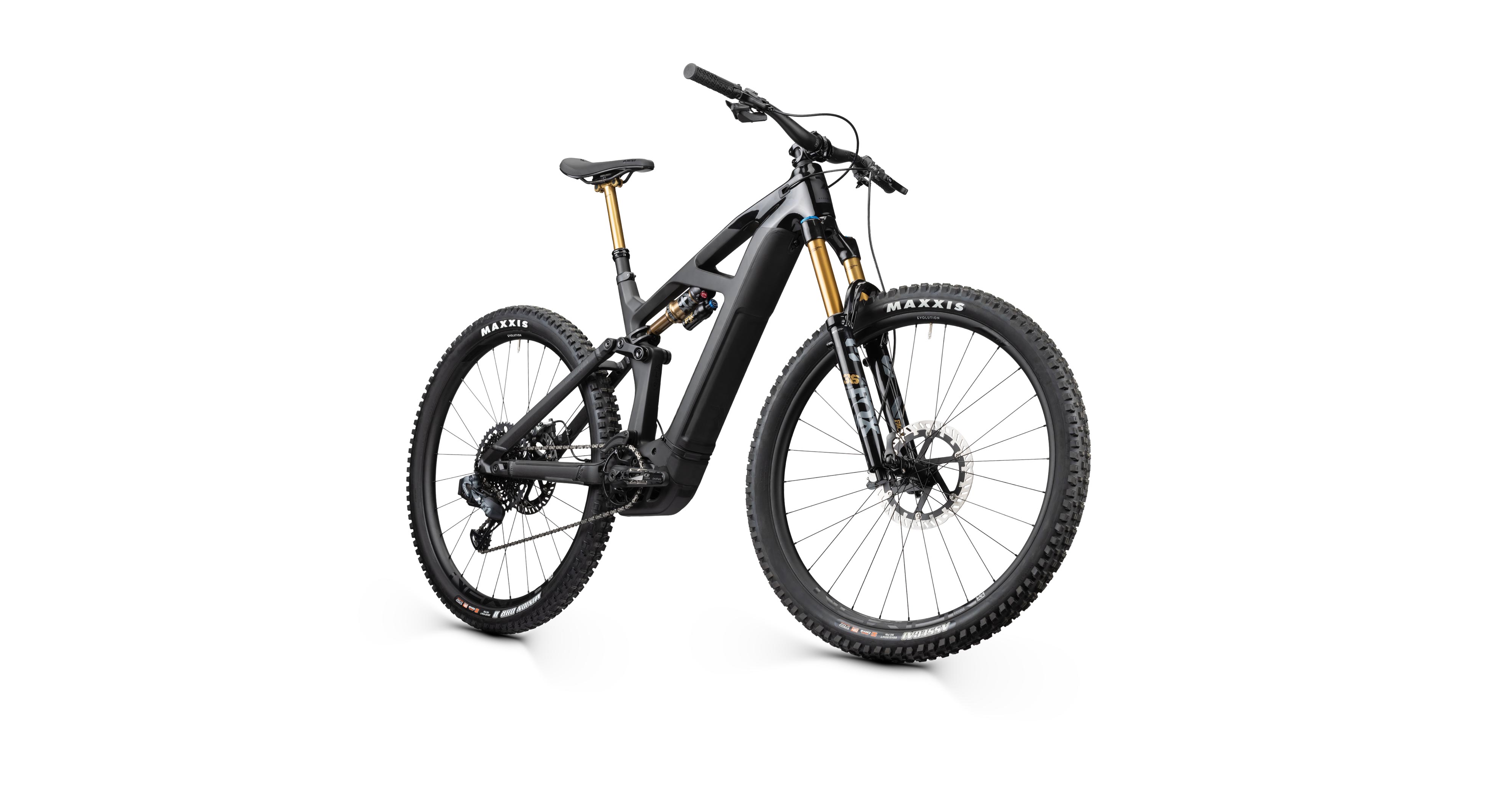

Radon RENDER 10.0 HD 750
4.799,00 €
incluse 19% TVA
- En stock, délai de livraison 13-19 jours
Informations sur le produit "RENDER 10.0 HD 750"
Highlights
- modern carbon main frame
- Bosch Performance Line CX drive unit 4th generation
- Bosch 750Wh Powertube
- Bosch System Controller - the smart system
- Fox 36 Factory FIT GRIP2 fork

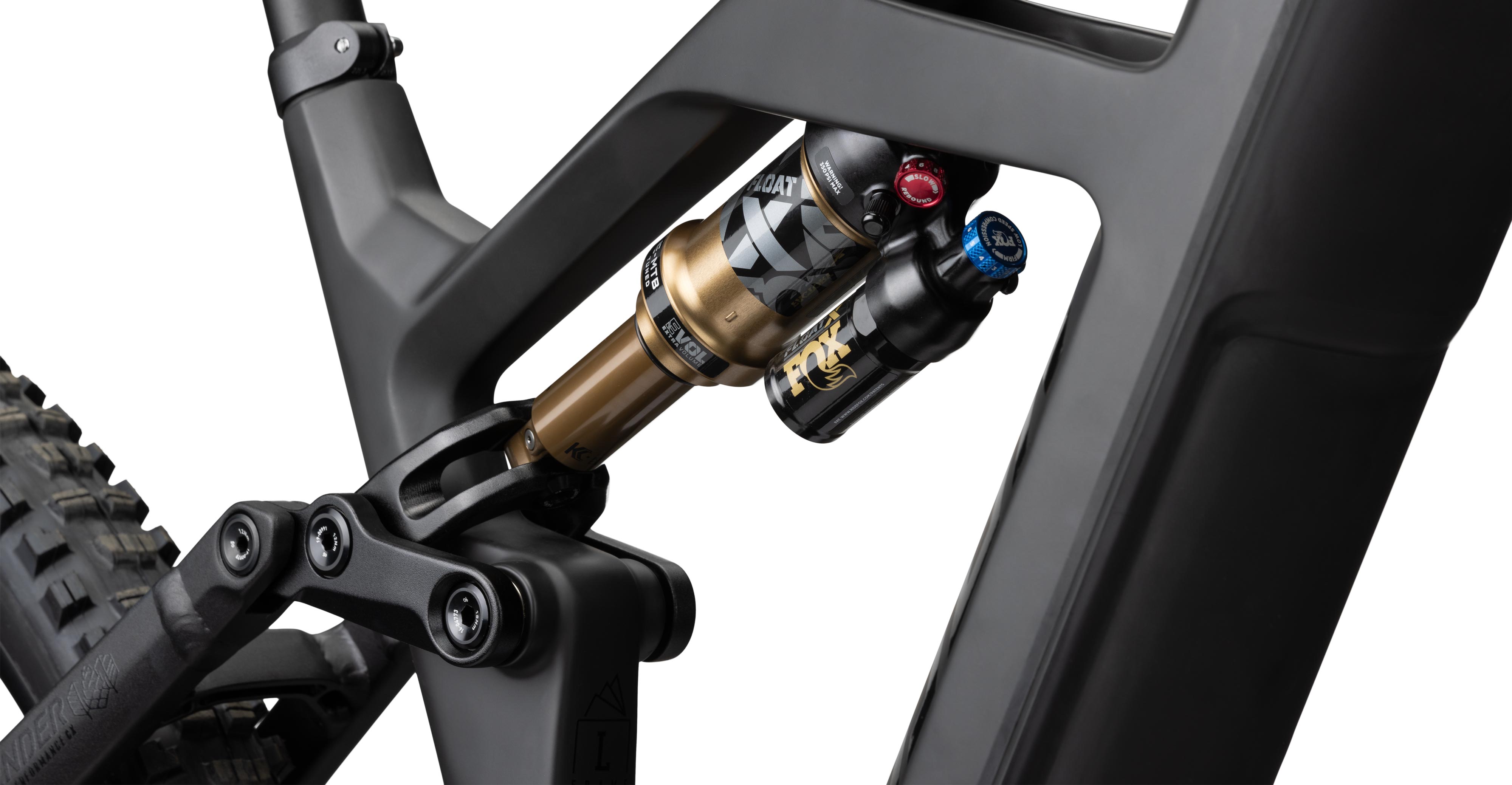

- Fox Float X Factory 2-Pos. rear shock

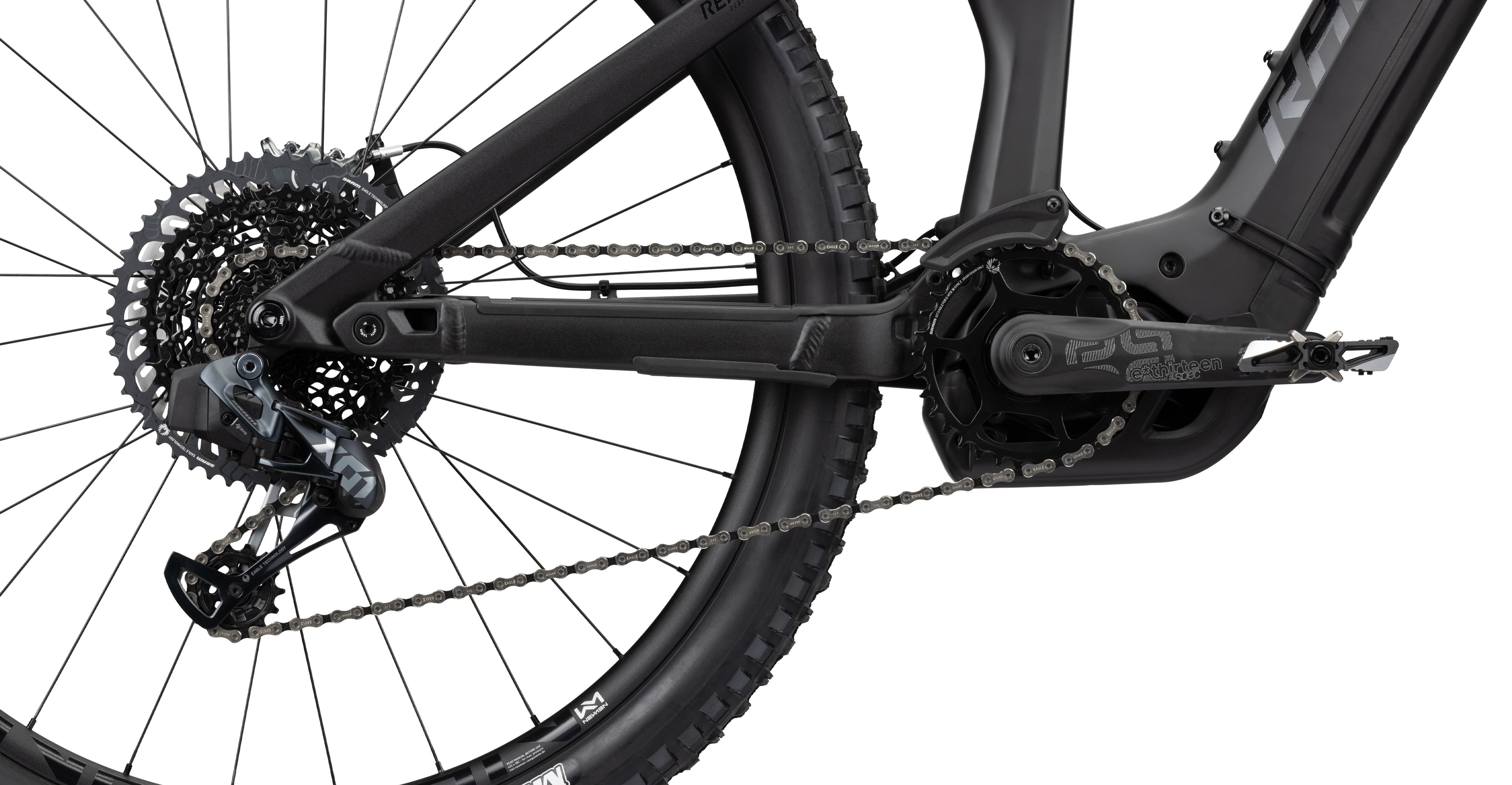

- SRAM AXS Eagle 12-speed groupset
- Newmen Evolution SL E.G.30 wheelset
The high-capacity 750 Wh Powertube is elegantly integrated into the down tube and reliably powers the 85 Nm Bosch CX motor. 250 watts of maximum power, 340 % pedal assistance and many riding modes promise perfect support for every situation. The Bosch Mini Remote is wirelessly integrated on the left-hand side of the handlebar and the Bosch System Controller is elegantly integrated in the top tube - the result: an ultra-clean and intuitive cockpit. For the suspension, we install a flawless Fox Factory suspension, consisting of Fox 36 Factory with FIT GRIP2 cartridge at the front and the Fox Float X Factory at the rear. For all tuning enthusiasts: With the GRIP2 cartridge, all damping parameters, from HSC/LSC to HSR/LSR, can be adjusted separately so that you can optimize the 160 mm travel perfectly for your riding style and intended use. Your trail buddies will go into raptures when they see the gearing: An electronic 1x12 SRAM Eagle X01 AXS rear derailleur and the SRAM AXS Eagle Rocker Paddle on the handlebars - what more could you want? Lightning-fast gear changes, self-adjusting rear derailleur and one less cable on the bike! On the approach to the valley, you benefit from several factors at once: grippy Maxxis Assegai and DHR II in the 3C MaxxTerra rubber compound and EXO+ carcass, together with the light and stable Newmen Evolution SL E.G.30 wheelset, promise pure trail fun. Any braking maneuvers are child's play with the Magura MT7. The four pistons at the front and rear make the MT7 one of the most powerful brakes on the market, yet it can still be controlled ultra-fine. The Fox Transfer Factory dropper post houses the comfortable SDG Bel Air V3 Max and generates up to 150 mm of travel - perfect for technical sections. The dream package is completed by an elegant cockpit with ultra-light Race Face Next R carbon handlebars. With the RENDER 10.0 HD, you're ready for any adventure!
The RENDER Family
The RENDER is now a modern classic that flaunts horsepower and continuous performance. Our trail all-rounder is powered by Bosch’s most powerful motor, the Performance Line CX, with its 85 Nm of torque and a maximum assist of 340%. And it does that for a long time, because the RENDER down tube has the large Powertube battery with up to 750 Wh of capacity. This is beautifully integrated into the down tube, which houses all of the cables for the gear system or the vario support in one rail system. The front frame is made of carbon and is unique in its shape with the wing-like connection from the top to the down tube, which also houses the shock. 160 mm of travel on the front and 140 mm on the rear together with the 29” wheels provide tremendous running smoothness and security. Short chain stays and a sophisticated geometry keep the RENDER very agile and maneuverable. The central seat position gives plenty of control of the bike and invites you to take epic trips. RENDER your ride.
The RENDER Frame
Our RENDER is a modern classic. Since the season 2022, it is also coming as a revision for the new Bosch Smart System. What remains is the ultra-modern, lightweight and very rigid carbon frame with the concise wing between the top tube and down tube, which also elegantly accommodates the shock. Also retained is the 140 mm of travel at the chainstay, which we combine at the front with 160 mm suspension forks. The high-capacity 750 Wh battery can be housed in the down tube, which powers the brutally strong Bosch Performance CX motor with its 85 Nm. Also new is the charging socket for the battery, which is located on the left side of the seat tube and is protected from dirt by a small, rotating disk when not in use. The speed sensor sits in the latest RENDER variant in the dropout. The signal-giving magnet rotates in the rear brake disk. Optionally, the new RENDER frame can accommodate a display in the top tube, where you then have all the data directly in view, which is extremely convenient.
The all new RADON RENDER E-MTB
To download the EG-Certificate of Conformity for Radon e-bikes: >CLICK HERE<
System weight max: 135 kg (body weight + bike + equipment)
Please note that pedals are not included!
- Code article fournisseur: 799942
- EAN: 4054571452269
- Année du Modèle: 2024
Konrad-Zuse-Straße 20
53501 Grafschaft
Deutschland
www.bike-discount.de
Radon RENDER 10.0 HD 750
Highlights
- modern carbon main frame
- Bosch Performance Line CX drive unit 4th generation
- Bosch 750Wh Powertube
- Bosch System Controller - the smart system
- Fox 36 Factory FIT GRIP2 fork
- Fox Float X Factory 2-Pos. rear shock
- SRAM AXS Eagle 12-speed groupset
- Newmen Evolution SL E.G.30 wheelset
The high-capacity 750 Wh Powertube is elegantly integrated into the down tube and reliably powers the 85 Nm Bosch CX motor. 250 watts of maximum power, 340 % pedal assistance and many riding modes promise perfect support for every situation. The Bosch Mini Remote is wirelessly integrated on the left-hand side of the handlebar and the Bosch System Controller is elegantly integrated in the top tube - the result: an ultra-clean and intuitive cockpit. For the suspension, we install a flawless Fox Factory suspension, consisting of Fox 36 Factory with FIT GRIP2 cartridge at the front and the Fox Float X Factory at the rear. For all tuning enthusiasts: With the GRIP2 cartridge, all damping parameters, from HSC/LSC to HSR/LSR, can be adjusted separately so that you can optimize the 160 mm travel perfectly for your riding style and intended use. Your trail buddies will go into raptures when they see the gearing: An electronic 1x12 SRAM Eagle X01 AXS rear derailleur and the SRAM AXS Eagle Rocker Paddle on the handlebars - what more could you want? Lightning-fast gear changes, self-adjusting rear derailleur and one less cable on the bike! On the approach to the valley, you benefit from several factors at once: grippy Maxxis Assegai and DHR II in the 3C MaxxTerra rubber compound and EXO+ carcass, together with the light and stable Newmen Evolution SL E.G.30 wheelset, promise pure trail fun. Any braking maneuvers are child's play with the Magura MT7. The four pistons at the front and rear make the MT7 one of the most powerful brakes on the market, yet it can still be controlled ultra-fine. The Fox Transfer Factory dropper post houses the comfortable SDG Bel Air V3 Max and generates up to 150 mm of travel - perfect for technical sections. The dream package is completed by an elegant cockpit with ultra-light Race Face Next R carbon handlebars. With the RENDER 10.0 HD, you're ready for any adventure!
The RENDER Family
The RENDER is now a modern classic that flaunts horsepower and continuous performance. Our trail all-rounder is powered by Bosch’s most powerful motor, the Performance Line CX, with its 85 Nm of torque and a maximum assist of 340%. And it does that for a long time, because the RENDER down tube has the large Powertube battery with up to 750 Wh of capacity. This is beautifully integrated into the down tube, which houses all of the cables for the gear system or the vario support in one rail system. The front frame is made of carbon and is unique in its shape with the wing-like connection from the top to the down tube, which also houses the shock. 160 mm of travel on the front and 140 mm on the rear together with the 29” wheels provide tremendous running smoothness and security. Short chain stays and a sophisticated geometry keep the RENDER very agile and maneuverable. The central seat position gives plenty of control of the bike and invites you to take epic trips. RENDER your ride.
The RENDER Frame
Our RENDER is a modern classic. Since the season 2022, it is also coming as a revision for the new Bosch Smart System. What remains is the ultra-modern, lightweight and very rigid carbon frame with the concise wing between the top tube and down tube, which also elegantly accommodates the shock. Also retained is the 140 mm of travel at the chainstay, which we combine at the front with 160 mm suspension forks. The high-capacity 750 Wh battery can be housed in the down tube, which powers the brutally strong Bosch Performance CX motor with its 85 Nm. Also new is the charging socket for the battery, which is located on the left side of the seat tube and is protected from dirt by a small, rotating disk when not in use. The speed sensor sits in the latest RENDER variant in the dropout. The signal-giving magnet rotates in the rear brake disk. Optionally, the new RENDER frame can accommodate a display in the top tube, where you then have all the data directly in view, which is extremely convenient.
The all new RADON RENDER E-MTB
To download the EG-Certificate of Conformity for Radon e-bikes: >CLICK HERE<
System weight max: 135 kg (body weight + bike + equipment)
Please note that pedals are not included!
- Code article fournisseur: 799942
- EAN: 4054571452269
- Année du Modèle: 2024
Konrad-Zuse-Straße 20
53501 Grafschaft
Deutschland
www.bike-discount.de
Configuration
| Cadre: | RENDER 750 (Maximale Reifenbreite: 2.6"; Powertube Akku 750Wh horizontal; Schaltauge: UDH) |
|---|---|
| Matériau du cadre: | Cadre principal en carbone/cadre arrière en aluminium |
| Taille des roues: | 29" |
| Vitesses: | 1 x 12 |
| Couleur: | UD carbon/ deepblack |
| Fourche: | Fox 36 Factory, FIT GRIP2, Kashima, E-Tuned, Boost (Nachlauf: 44mm) |
| Amortisseur: | Fox Float X Factory, 2-Pos., EVOL LV (Einbaumaß: 210 x 55mm; Buchsenmaß: Oben: 8 x 30mm, Unten: DU-Bushing 12.7mm) |
| Débattement: | 160mm/ 140mm |
| Freins: | Magura MT7 |
| Disques de frein: | Magura MDR-P, 220/203mm, 6-bolt |
| Jeux de direction: | Acros Block-Lock, ZS56/ZS56 |
| Potence: | Race Face Turbine R, Ø35mm (M: 40mm; L: 40mm; XL: 50mm) |
| Cintre: | Race Face Next R, 35 x 800mm, 35mm rise |
| Poignées: | SDG Thrice |
| Selle: | SDG Bel Air V3 Max, Lux alloy |
| Tige de selle: | Fox Transfer Factory, Kashima, Ø31.6mm (M: 125mm Hub; L: 150mm Hub; XL: 150mm Hub) |
| Pédalier: | e*thirteen e*spec Plus, 165mm, SRAM Eagle Chainring, 34T |
|---|---|
| Dérailleur arrière: | SRAM X01 Eagle AXS, 12-speed |
| Manettes: | SRAM AXS Eagle Rocker Paddle, Shiftmix |
| Guide-chaîne: | Reverse Components Flip-Guide, direct mount |
| Cassette: | SRAM GX Eagle XG-1275, 10-52 |
| Chaîne: | SRAM GX Eagle |
| Pneu avant: | Maxxis Assegai, 3C, MaxxTerra, EXO+, TR, 29" x 2.5" WT |
| Pneu arrière: | Maxxis Minion DHR II, 3C, MaxxTerra, EXO+, TR, 29" x 2.4" WT |
| Paire de roues: | Newmen Evolution SL E.G.30, 110/148mm (Maulweite: 30mm; Tubeless ready: ✔; Tubeless Ventile: nicht enthalten; Tubeless Felgenband: 32-33mm, nicht enthalten; Tubeless Milch: nicht enthalten) |
| Display: | Bosch System Controller / Mini Remote |
| Batterie: | Bosch Powertube 750Wh |
| Chargeur: | Bosch Charger 4A |
| Moteur: | Bosch Performance Line CX Gen4 Smart System |
| Pédales: | non inclus dans la livraison |
| Poids total maximum autorisé: | 135 kg (poids corporel + vélo + équipement) |
| Poids : | ab 23,75 kg |
Bosch - the smart system for e-bikes
At the start into the networked e-bike world, Bosch is equipping the top drive unit Performance line CX for the future. The well-known motor with a new connectivity is accompanied by Bosch's brand-new PowerTube 750 battery - for longer riding pleasure with a significantly increased range. The new smart system includes the new Mini Remote, as well as the system controller in the top tube of the frame and the new 4A Charger also the new eBike Flow app, from now on the center for customizing your e-bike! Thanks to the network, you can easily retrofit new functions or install updates "over-the-air". Of course, you can also track your activities and customize the riding modes. The retrofittable "ConnectModule" is intended to increase security, enabling new options for e-bike theft protection. For example, an acoustic alarm can be triggered in the event of an attempted theft, and the bike can also be tracked if it has been stolen. Further features are planned to promise more riding fun and safety with the smart system by Bosch.
Why should I buy an e-bike with the smart Bosch system?
Your e-bike continues to evolve
Even after purchase, new functions can be retrofitted via "over-the-air" updates, so new riding fun is always guaranteed.
Your e-bike is networked
Thanks to the eBike Flow app, your e-bike is connected to your smartphone - and thus to the digital world! The app can be connected to the LED Remote via Bluetooth and you increase your riding fun thanks to smart, customizable functions.
Your e-bike battery lasts longer
Thanks to a capacity of 750 Wh, you'll still be riding when others already have given up. Just enjoy the increased range and have fun on long tours and many trails.
Your e-bike looks really good
Every single component of the smart system by Bosch can be integrated beautifully and ensures a modern, puristic design.
Your e-bike benefits from perfect interaction
All of the smart system’s components are coordinated and harmonize perfectly - with each other and with you. Thanks to access to the digital world, you can automatically record and evaluate your activities and synchronize them with your favorite apps.
What components does the Bosch smart system consist of?

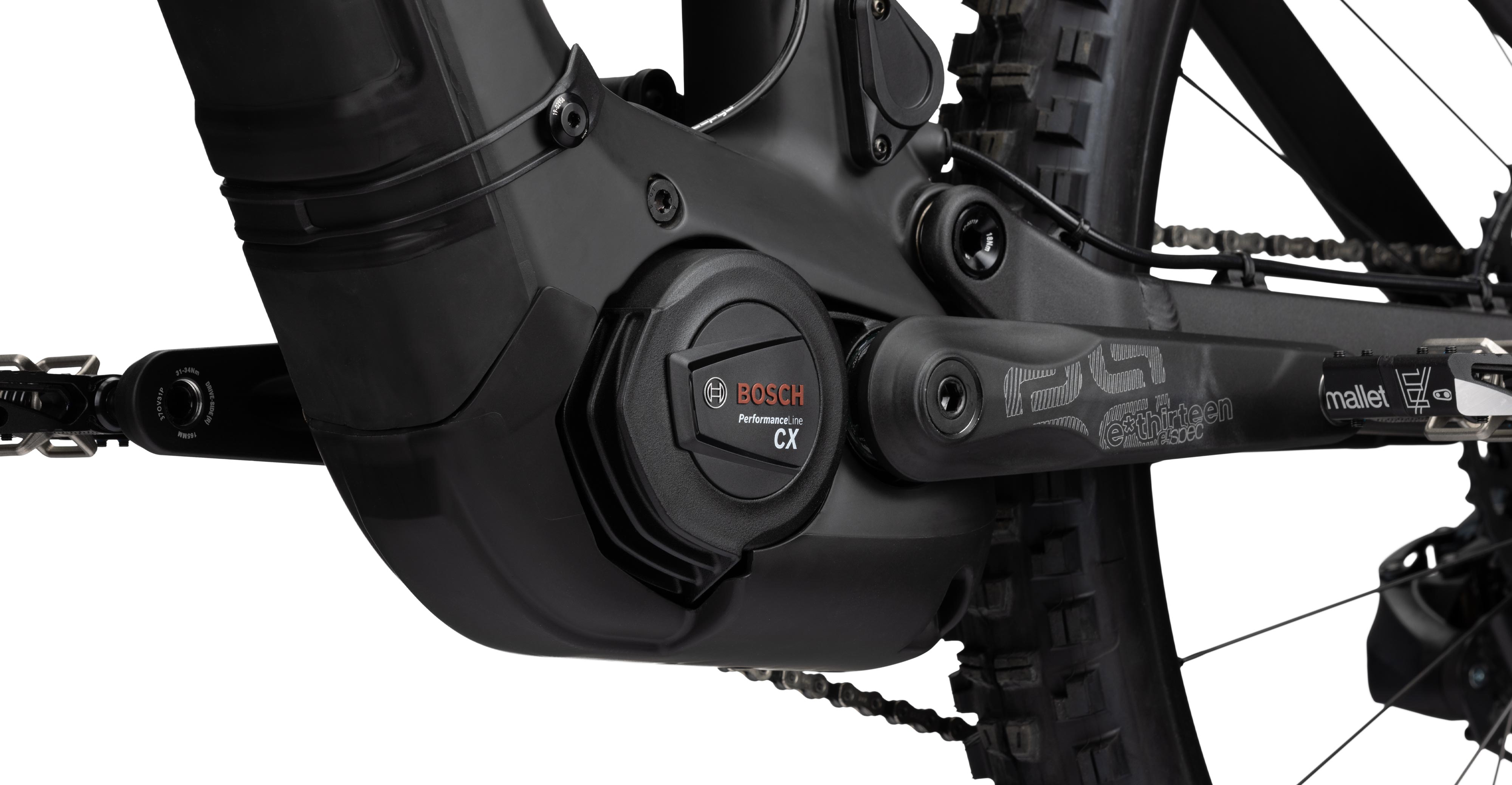

Bosch Performance Line CX drive unit
Power on the hill
The maximum torque of 85 Nm has a noticeable effect on your riding behaviour when eMountain biking. The powerful motor enables rapid acceleration after tight turns and obstacles at a low cadence and facilitates starting up on the steepest of hills. For fast sprints, the motor also supports you at high cadence.
Intuitive handling
A mode for more focus: Specially designed for sporty use, eMTB mode offers you optimum control and intuitive handling, as you need to switch less between the different riding modes. With this clever function of the eMTB mode, technical sections can be mastered with confidence and obstacles such as root systems and rock gardens can be overcome by applying targeted pedal pressure with the Extended Boost. The Performance Line CX drive unit thus ensures even more riding enjoyment and a flow experience that sets the standard.
Maximum agility
The multi-sensor concept allows for controlled and agile riding, even on technically demanding trails. Combined with the innovative Bosch motor control, it offers the very best in dynamics and the highest level of sensitivity.
Sporty and economical
Sporty riding on a trekking bike or eMTB: The Tour+ mode of the Bosch Performance Line CX always focuses on riding enjoyment. It eliminates the need to switch between support modes, so you can focus entirely on the eBiking. Tour+ mode requires you to pedal harder on flat tracks than Tour mode - thus saving power and extending your boundaries for even more riding enjoyment!
Whether off-road or on asphalt, Tour+ mode is always the perfect choice. That's because it constantly adapts to you. Sensors on the motor measure important riding data more than 1,000 times per second, enabling Tour+ mode to determine optimum support for you. It delivers the additional power so sensitively that you not only experience a natural riding sensation, but also enjoy a longer range by applying more power.
A personal riding experience
To ensure that the eBike’s handling characteristics suit your riding style or the selected route, the available riding modes can be customised using the eBike Flow app. The level of the support, dynamics, maximum speed and maximum torque of the drive can thus be flexibly adjusted to your personal needs and preferences. Intensive training or extended eBike ride — the riding modes always offer you the right support and enable even more riding enjoyment.
Riding modes of Bosch eBike – the smart system
Turbo:
- Direct and maximum powerful support up to the highest pedalling rates for sports riding.
- Support level: 340%
- Maximum drive torque: 85 Nm
eMTB:
- The eMTB mode dynamically varies between the Tour and Turbo riding modes, progressive motor support for maximum performance on the trail.
- Support level: 140% - 340%
- Maximum drive torque: 85 Nm
Tour+:
- Dynamic support for maximum riding fun and sporty riding performance.
- Support level: 60% - 340%
- Maximum drive torque: 85 Nm
Eco:
- Effective, but gentle support, designed for maximum efficiency for long ranges.
- Support level: 60%
- Maximum drive torque: 40 Nm
Bosch eBike Flow app
Enhancing the eBike
Use the eBike Flow app to download new features and updates for components such as the battery or motor and send them to your eBike via Bluetooth. That way it's always up to date and you get to enjoy more options.
Recording activities
Track your ride and fitness data as soon as you get started. If desired, the Activity Tracking for iPhone users can also sync all data automatically with Apple Health. When you take a break, the recording stops automatically.
Customising riding modes
Adjust the riding mode exactly to your needs: You can finely adjust the Eco, Tour, Sport and Turbo riding modes so that they offer you more support or consume less power.
Everything at a glance
Use the Home screen to gain a quick overview of everything that's important. Whether battery status, remaining range, distance travelled or the next service appointment, the Home screen clearly shows you everything you need to know with constantly updated eBike data.
System Controller and Mini Remote
 | Simple operation Focus completely on the traffic in the city or on your ride. |
 | Robust functional companion The System Controller is perfect for modern eCity bikes or eMTBs. |
 | Constant extensions Connect your smartphone to the System Controller and benefit from new features via the eBike Flow app. |
 | Minimalistic look System Controller and Mini Remote have an unadulterated and clean eBike look. |

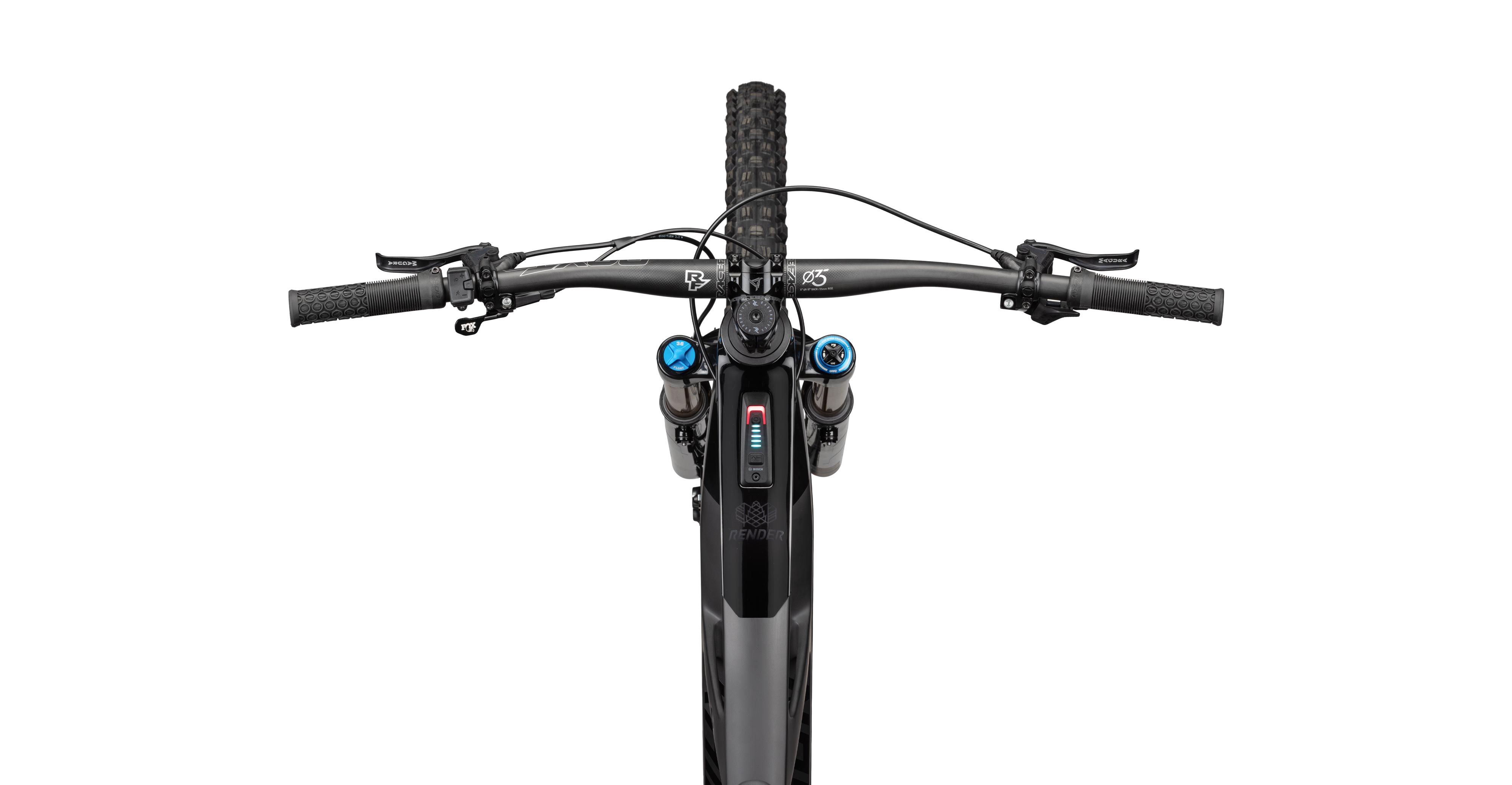

System Controller
Minimalist, robust Control Unit
The System Controller is the Control Unit for eBikes with the smart system, reduced to the essentials. The deliberately limited number of functions and information facilitates a quick overview and is not distracting while riding. The System Controller is seamlessly integrated into the top tube – this gives the already robust companion additional protection, is hardly noticeable and is perfect for sporty tours and design-oriented eBike fans.
LED indicators
LEDs use different colors to indicate the riding mode as well as the battery charge level in 10 % steps.
Connected in the smart system
The System Controller makes your eBike smart – and is the interface for software updates.
Built into the top tube
The System Controller is hardly noticeable, made of sturdy material and protected from knocks and scratches.
Two buttons
With only two buttons you control the most important functions of your eBike: turn your eBike on or off and change the riding mode.
Hardware Facts
- The bottom five LEDs indicate the charge level
- The large LED indicates the current support level through its colour: red, violet, blue, green
- Expandable with Mini Remote for additional functions and more convenient operation
- Modular use: The System Controller can be used in conjunction with the Mini Remote to control the eBike Flow app and Bosch display while riding
- Use of the Pust Assist via the Mini Remote and display of the status by rolling illumination of the charging status LEDs on the System Controller (white = Push Assist ready; ice blue = Push Assist active)
- Switching light on/off
- Ambient light sensor automatically adjusts the brightness of the LEDs
- Two-component design: combination of soft-touch surface and hard material for best ergonomics and robustness
- Replaceable and long-life battery lasts up to approx. 7 years
- Display of ABS function via ABS LED (only for eBikes with Bosch eBike ABS)
- Diagnostic interface (type: USB-C) for diagnosing the eBike system or charging the integrated battery of the system controller
- System connector for connecting the eBike system
- IP54 protected against dust and splash water
- Temperature range: -5 °C to +40 °C (operation) and +10 °C to +40 °C (storage)
Mini Remote
As an additional operating panel, the Mini Remote supplements the System Controller, extends the range of functions and enables safe operation. It is connected to the System Controller via Bluetooth and can be flexibly mounted on the handlebar. The buttons near the thumb keep the hands on the handlebar at all times. More keys offer more functions: with the Mini Remote you get practical features like the smart Push Assist and you can turn your eBike light on or off.
Quickly retrofittable
The Mini Remote can be quickly retrofitted and is connected to the System Controller via Bluetooth.
Three keys, more functions
The keys of the Mini Remote have dual assignments: riding mode, light function, smart Push Assist, and for controlling a display.
Full flexibility
The Mini Remote works with or without display. Operate the Ride screen of the eBike Flow app or your display screens.
Intuitive operation
Short distances for the thumb and grippy soft-touch surface: The buttons have icons and can be used intuitively.
Hardware Facts
- Supplement to the system controller for additional functions and convenient operation on the handlebar
- Control of the navigation or ride screen in the eBike Flow app (smartphone) or the Bosch display
- Smart Push Assist and innovative rollback protection (supports on steep, non-rideable inclines and can prevent the eBike from rolling backwards)
- Switch light on/off
- Optimal ergonomics of the buttons due to low profile design
- Wireless mounting on the handlebar
- Soft touch surface for extra good grip
- LED indicates low battery of the Mini Remote, pairing activity or lack of connection to the system
- Battery life (coin cell CR1620) can last up to approx. 2 years and can be easily replaced by removing it from the handlebar and inserting it into the rubber insert
- IP54 protected against dust and splash water
- Temperature range: -5 °C to +40 °C (operation) and +10 °C to +40 °C (storage)
- Bluetooth connectivity (Bluetooth 5.0 Low Energy)

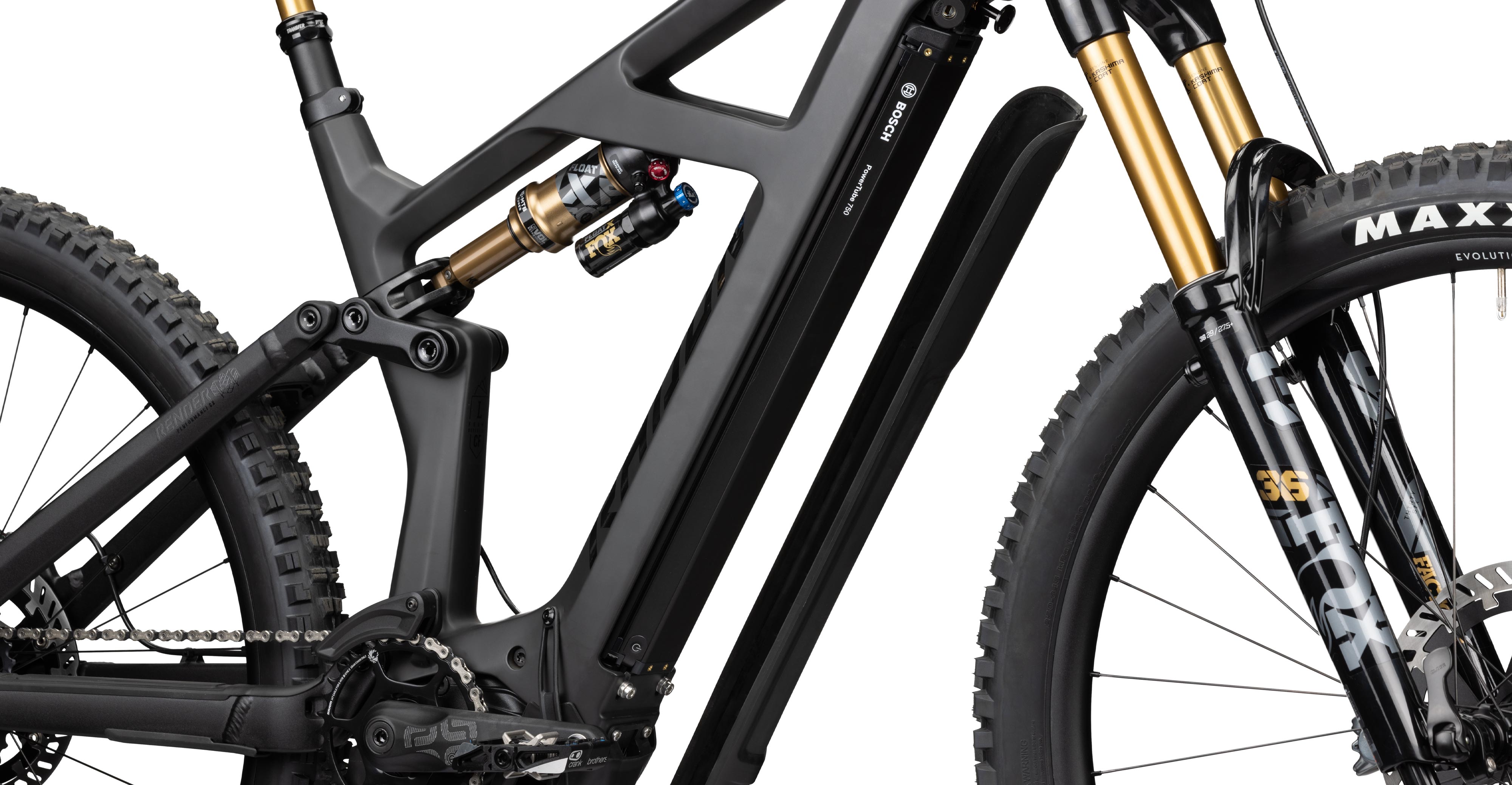

Bosch PowerTube 750 battery
Maximum range
The PowerTube 750 makes it easy to conquer long distances and significant variations in altitude. The durable power source enables approx. 20% greater range than the PowerTube 625 and is ideal for extended and challenging rides.
Elegant eBike design
Like all Bosch PowerTubes, the PowerTube 750 is perfectly integrated into the frame of the eBike. An appealing eBike design and high capacity make for an uncompromising combination.
Reliable power source
High safety standards Enormous mileage, long service life, reliable handling — the lithium-ion battery is equipped with a Battery Management System (BMS) that protects the battery cells from overload.
User-friendly operation
The PowerTube 750 is characterised by particularly easy handling. The rechargeable battery is always securely fastened within the frame. It can be removed via an intuitive, lockable mechanism and offers user-friendly handling.
Bosch 4A Charger
Small and lightweight
The 4A charger is the perfect charger with many advantages: It charges quickly, is easy to use and is visually appealing. The small and lightweight charger is ideal for on-the-go charging and supplies the PowerTube 750 with the necessary energy in no time: It takes six hours to fully charge the battery, and just over two hours to charge it halfway. The perfect opportunity for a restful break along the way.
Géométrie
